Solar Sensor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

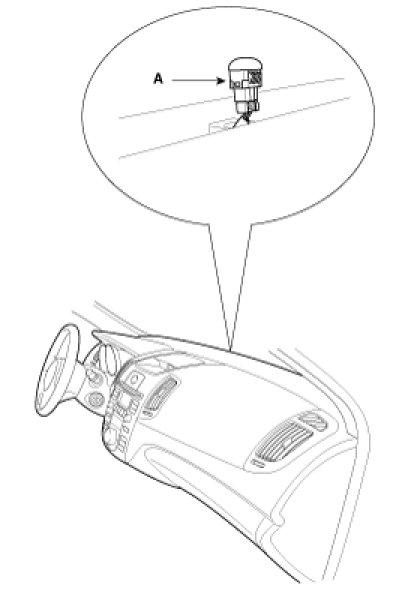

2. With the (-) driver, remove the photo sensor (A) from the center of defrost nozzle.

3. Install in the reverse order of removal.
