Repair Procedures

Key In Switch
1. Remove the crash pad lower panel.

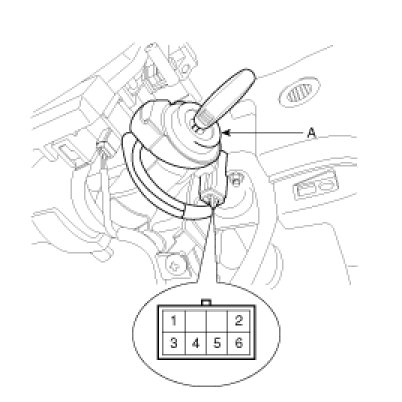

2. Disconnect the 6P connector from the key warning switch(A).

3. Check for continuity between the terminals in each position according to the table.
