Kia
>>
2010
>>
Forte EX, Standard
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRSCM (Restraints- Advanced)
>>
Schematic Diagrams
>>
Circuit Diagram (1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram (1)

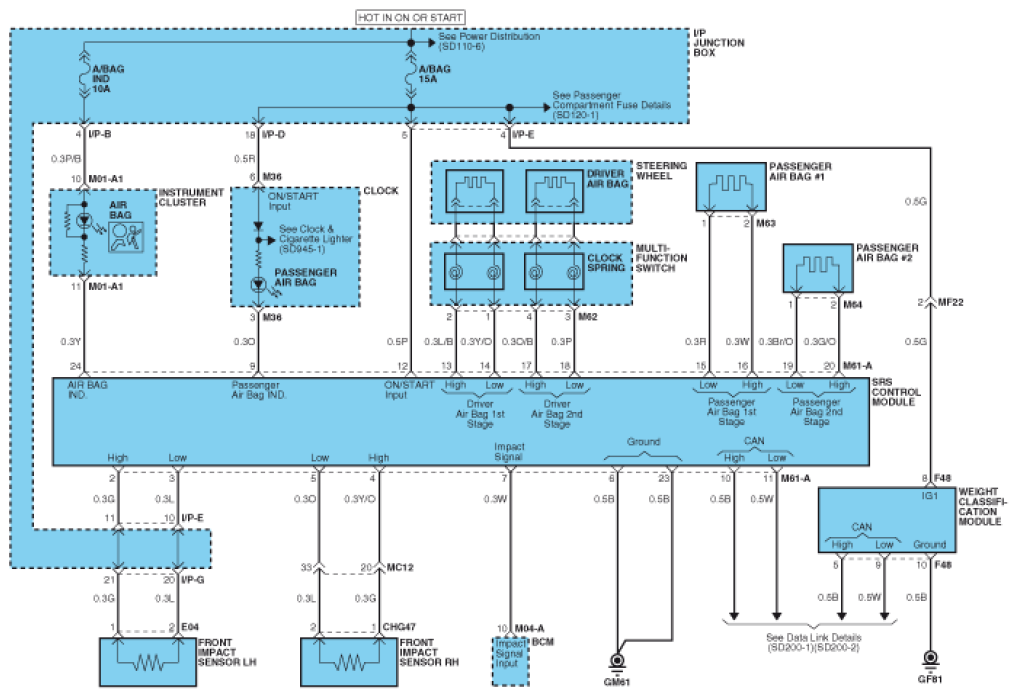

Fig 1: Circuit Diagram (1)
Courtesy of KIA MOTORS AMERICA, INC.
