DTC B1322: WCS (Weight Classification System) ECU Defect
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

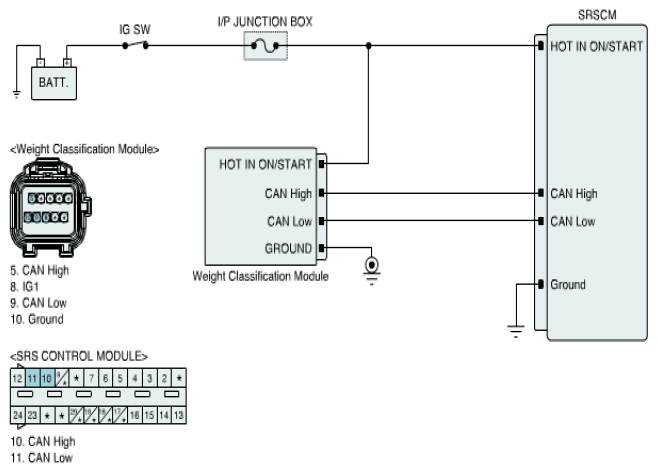

Fig 1: Weight Classification System - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
