Kia
>>
2009
>>
Spectra5 2.0 1, Standard
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Supplement Restraint System Control Module (SRSCM) - Except With OCS
>>
Troubleshooting
>>
B1349: Driver Airbag Circuit Short To Battery Line
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

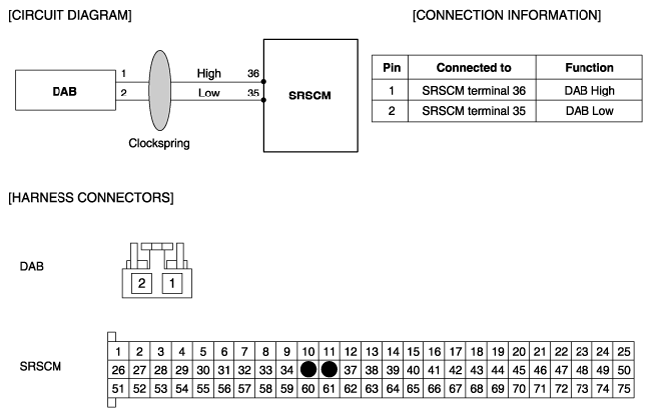

Schematic Diagram
Fig 1: DAB And SRSCM - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
