2009
>>
Spectra5 2.0 1, Standard
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Supplement Restraint System Control Module (SRSCM) - Except With OCS
>>
Schematic Diagrams
>>
Circuit Diagram (1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram (1)

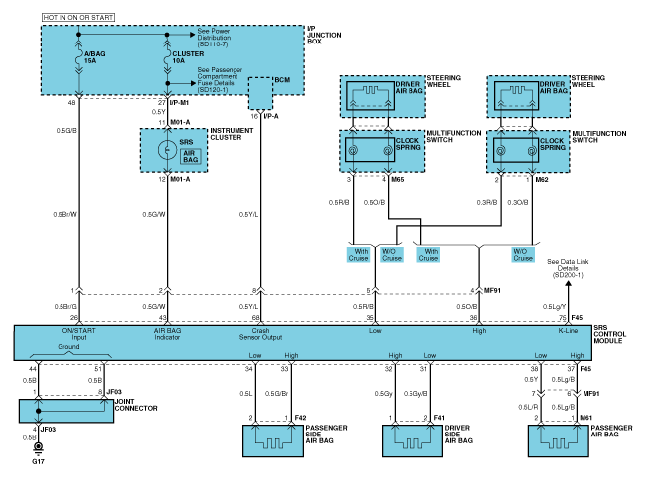

Fig 1: Instrument Cluster And Steering Wheel Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
