Abs (Anti-Lock Brake System): Components

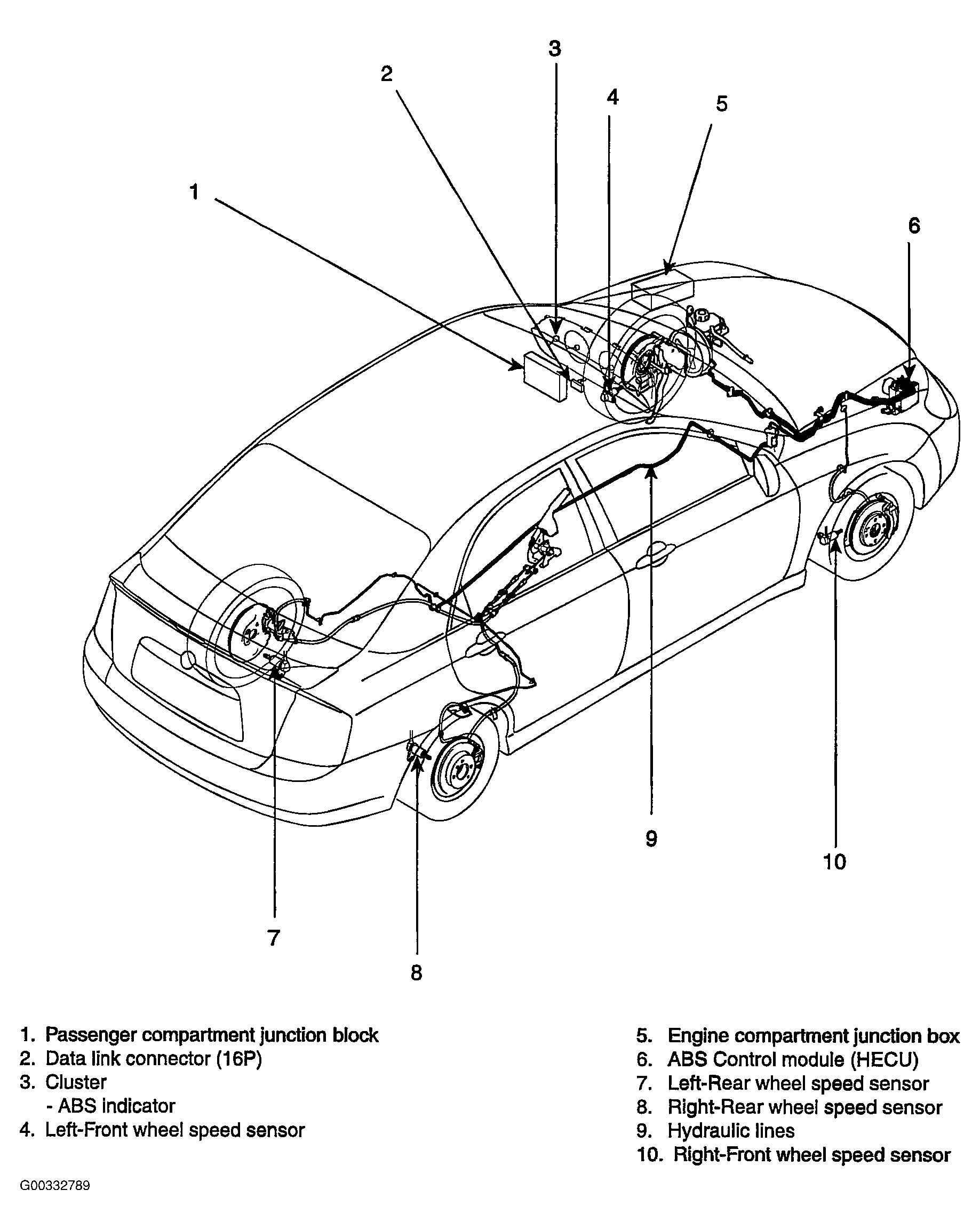

Fig 1: Identifying ABS Components

Courtesy of KIA MOTORS AMERICA, INC.
