Spectra LX, 2.0 2
>>
Repair and Diagnosis
>>
Brakes
>>
Abs/TCS (Anti Lock/Traction Control)
>>
Abs (Anti-Lock Brake System)
>>
Description
>>
Abs Ecu Block Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Abs Ecu Block Diagram

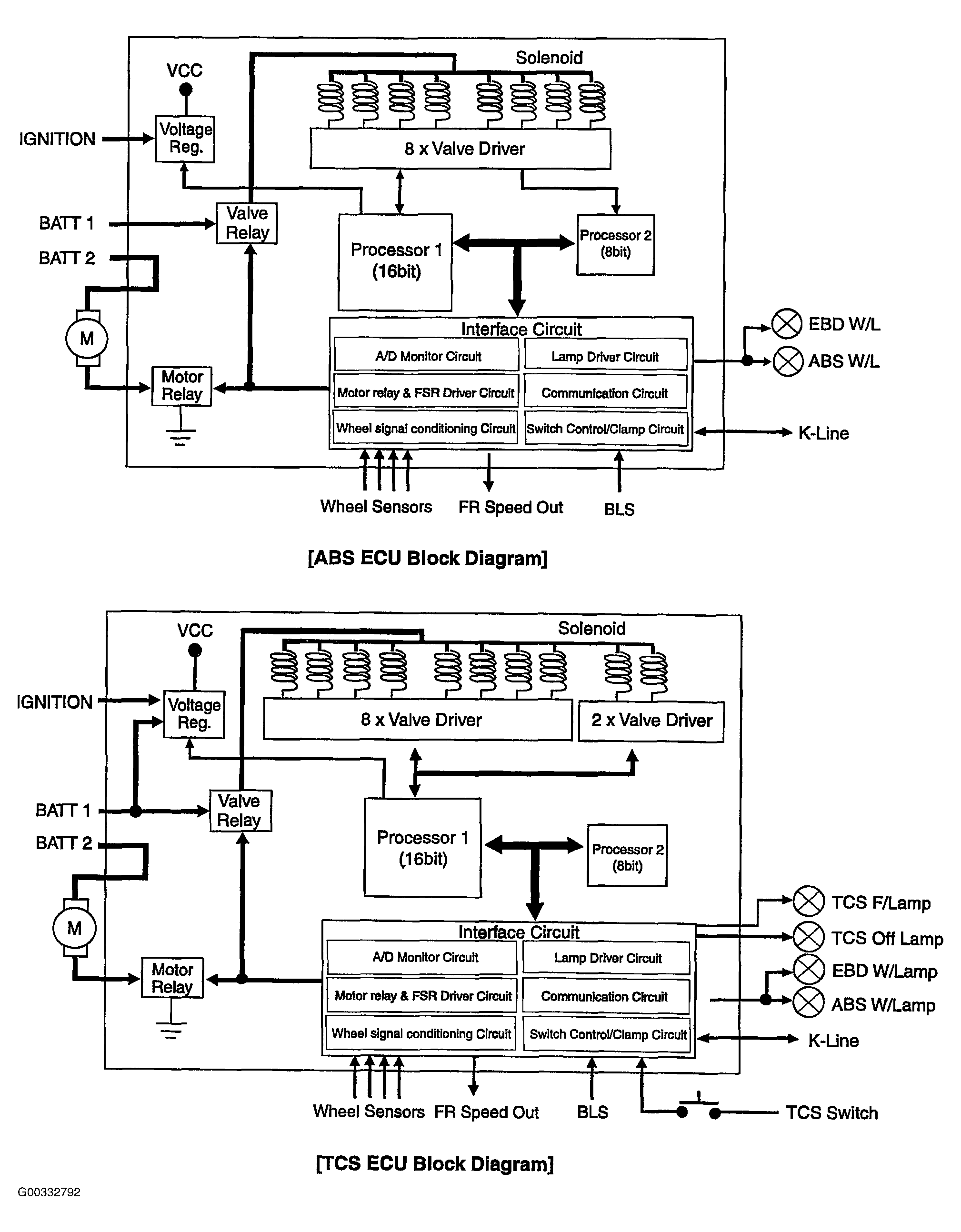

Fig 1: ABS ECU Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
