Description And Operation (A5SR2): Operation: Notes

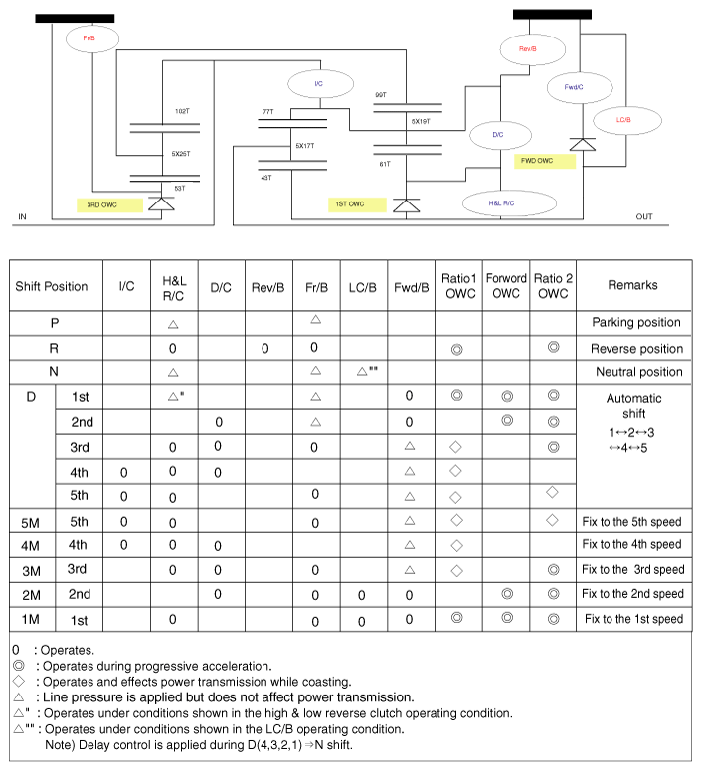

Fig 1: Automatic Transaxle System Operation Diagram
G06409152Courtesy of KIA MOTORS AMERICA, INC.
