P0140: O2 Sensor Circuit Slow Response (Bank 1/Sensor 2)
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

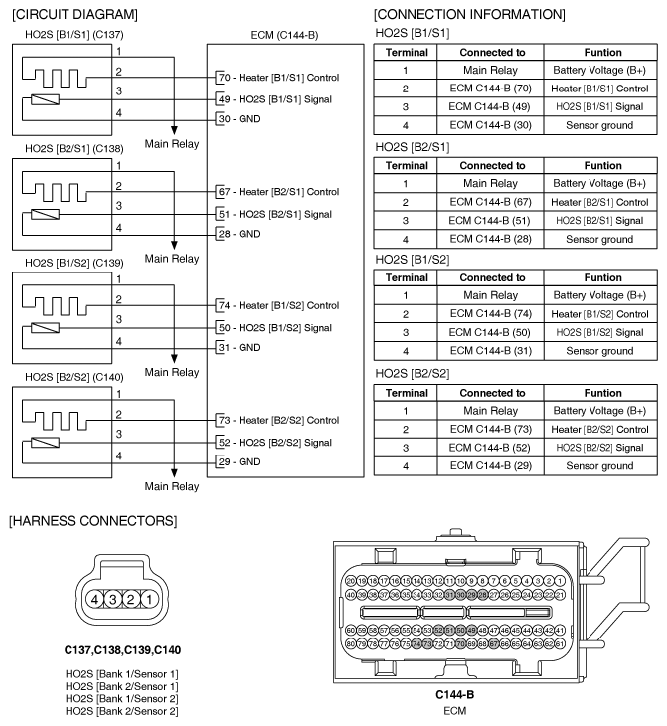

Fig 1: O2 Sensor Circuit Slow Response (Bank 1/Sensor 2) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
