Control Circuit Inspection
- IG "OFF" and disconnect PCM connector.
- IG "ON" & ENG "OFF"

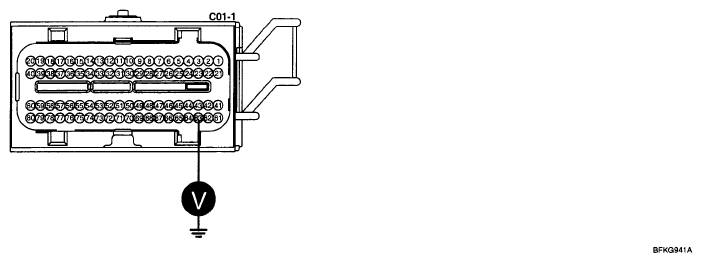

- Measure voltage between 63 of PCM harness connector and chassis ground.
Specification: Approx. B+
- Is the measured voltage within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check open in Engine warning lamp's filament.
- Repair open or short to ground in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
