Front

INSPECTION

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

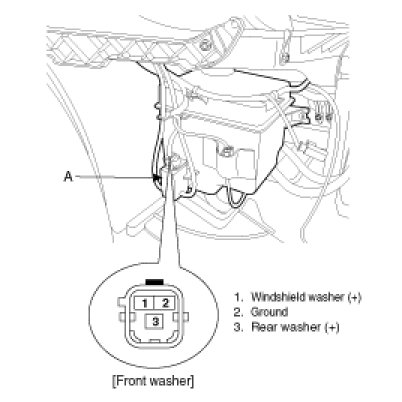

2. Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2 respectively.
3. Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
4. If they are abnormal, replace the washer motor (A).
