Windshield Washer Motor: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

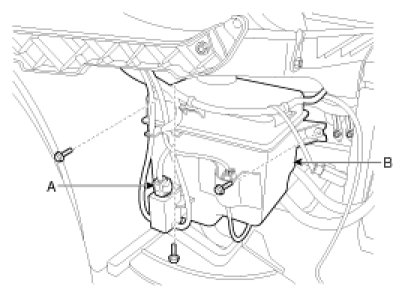

3. Remove the washer hose and the washer motor connector (A). Remove the washer reservoir (B) after removing 3 bolts.






INSTALLATION

1. Install the washer reservoir.
2. Install the washer motor and connect the washer hose and the motor connector.
3. Install the front bumper cover.
