Ignition Coil: Service and Repair





Replacement

Ignition Coil
1. Remove the engine cover.

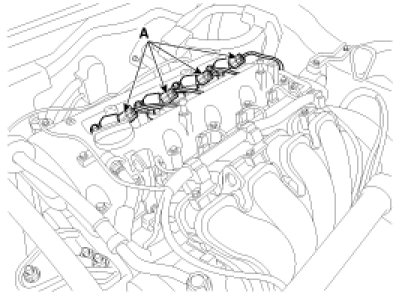

2. Disconnect the ignition coil connector (A).




3. Remove the ignition coil (A).




4. Installation is the reverse of removal.
