Windows: Testing and Inspection










TROUBLESHOOTING

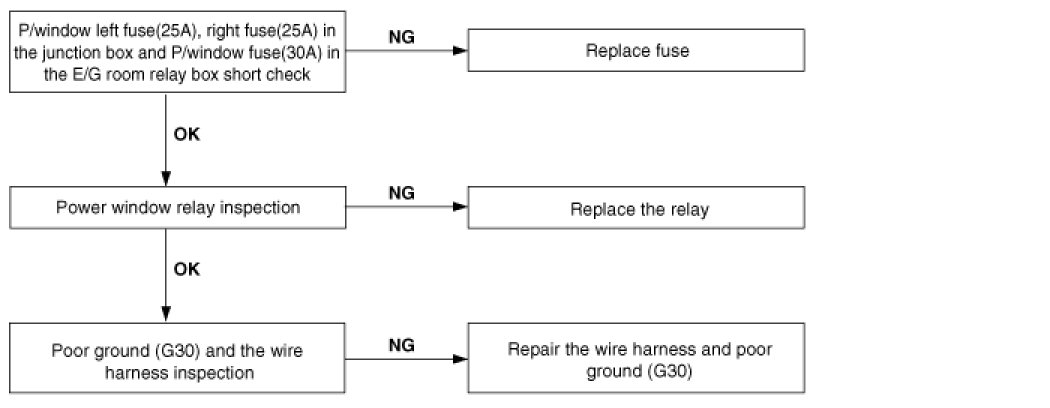

1. No windows operate from the main switch on the driver door.

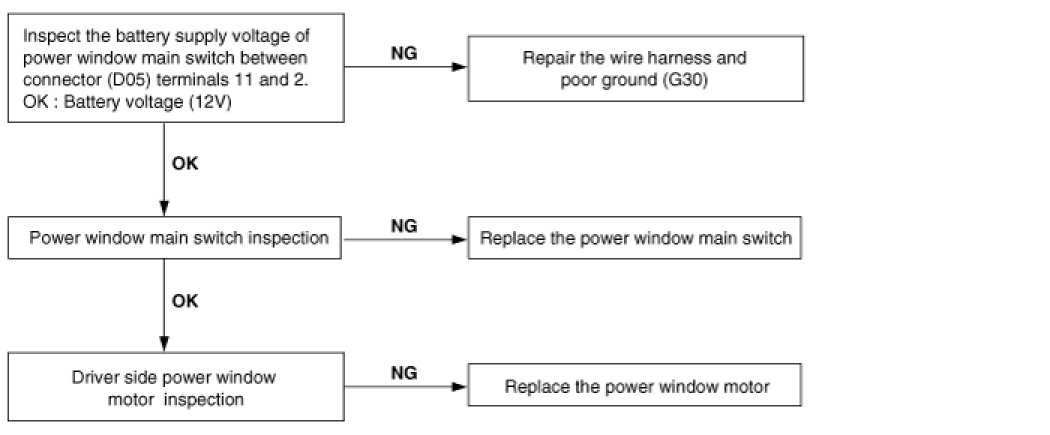

2. Driver side window does not operate.

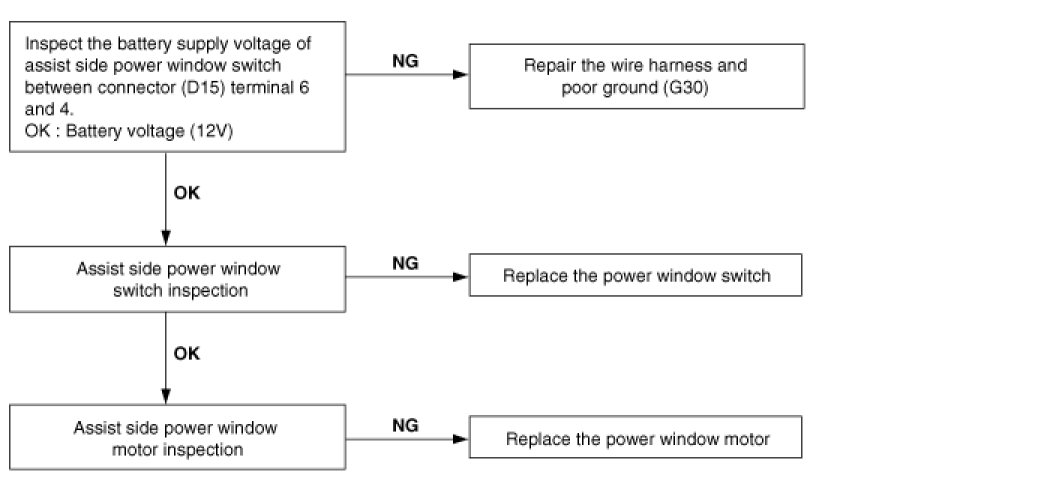

3. Assist side window does not operate.
