Power Window Switch: Testing and Inspection










INSPECTION

POWER WINDOW MAIN SWITCH
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim panel.

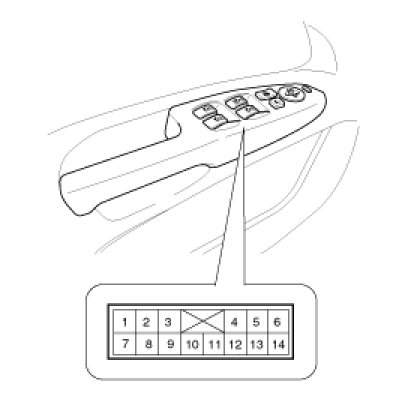

3. Disconnect the 14P connector from the switch.

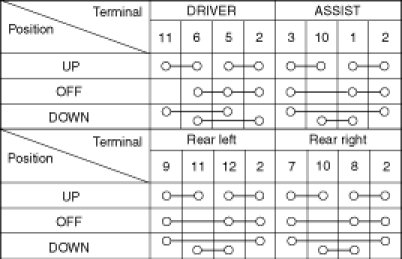

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.





POWER WINDOW LOCK SWITCH





ASSIST/REAR POWER WINDOW SWITCH
1. Disconnect the negative (-) battery terminal.
2. Remove the door trim panel.

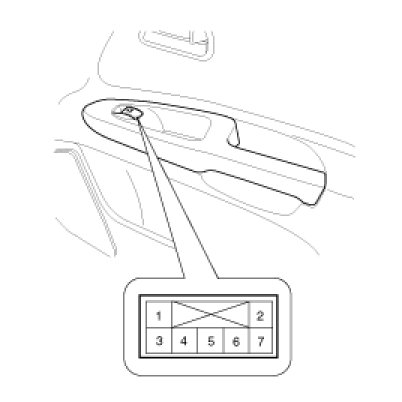

3. Disconnect the 7P connector from the switch.

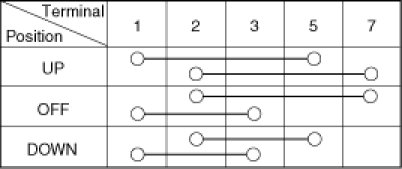

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
