Symptom Related Diagnostic Procedures





SYMPTOM TROUBLESHOOTING GUIDE CHART

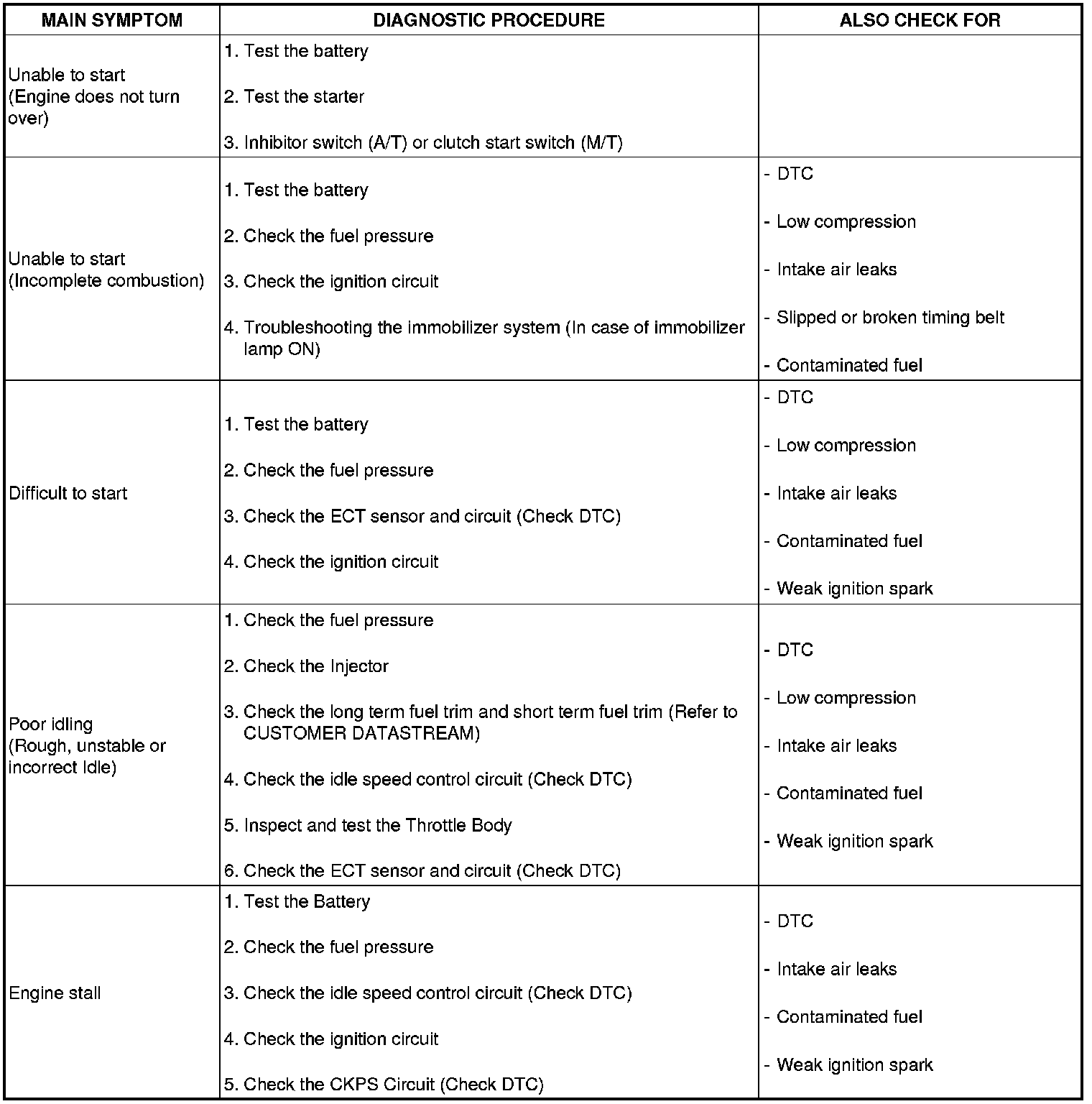

Symptom Troubleshooting Guide Chart (Part 1):

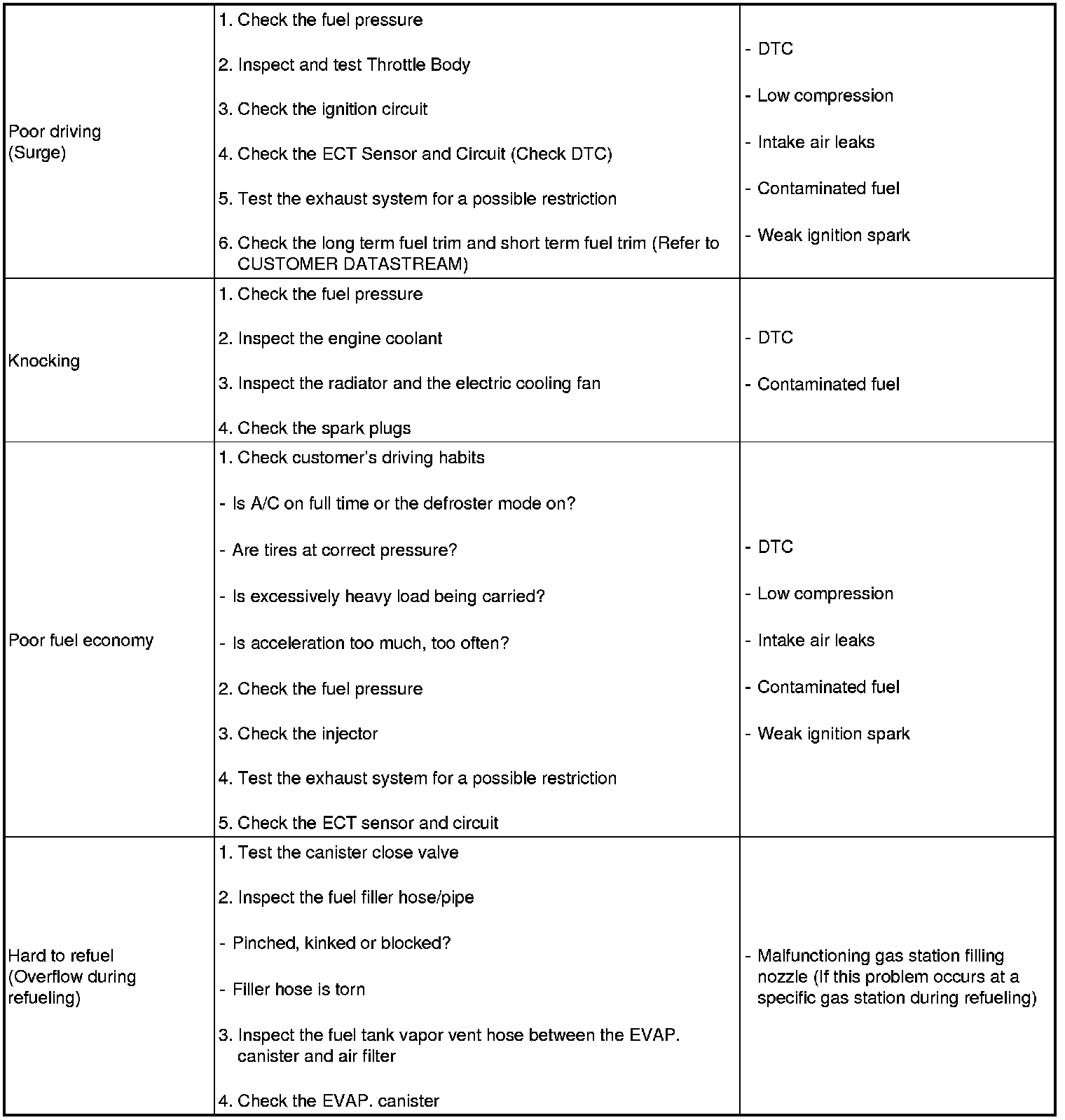

Symptom Troubleshooting Guide Chart (Part 2):
