Repair Procedures










REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/charging station.

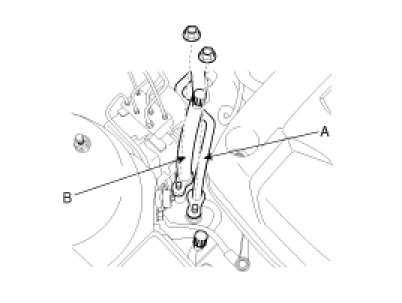

3. Remove the discharge line (A) & suction line (B) for wide space.

TORQUE : 8 - 12N.m (0.8 - 1.2kgf.m, 5.8 - 8.7lb.ft)

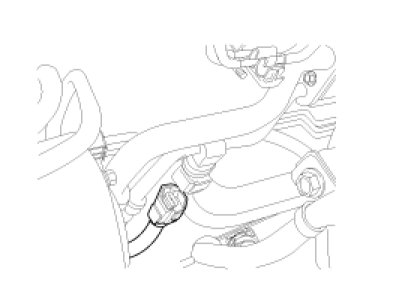

4. Disconnect A/C pressure transducer connector (3P) (A).

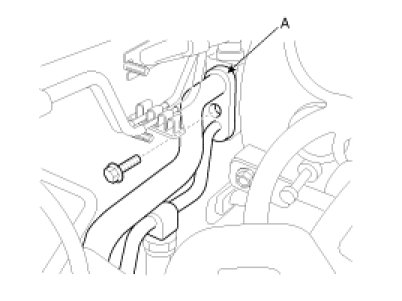

5. Remove the bolt, then disconnect the liquid & suction(A) pipe from the expansion valve.

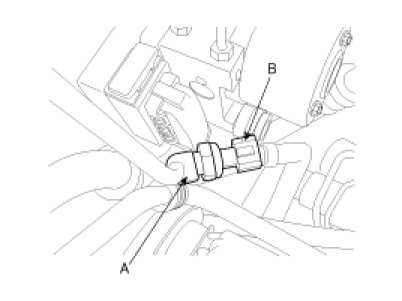

6. Remove the A/C pressure transducer (B) while holding on to the fitting block (A).





CAUTION:
Take care that liquid & suction pipe are not bent.

TORQUE : 10 - 12N.m (1.0 - 1.2kgf.m, 7.4 - 8.8lb.ft)


7. Installation is the reverse order of removal.
