Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.

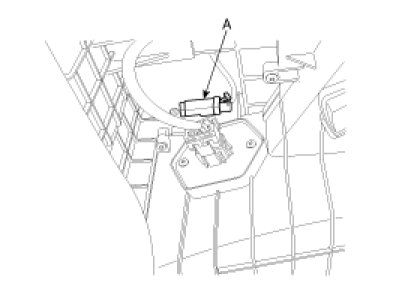

3. Disconnect the evaporator sensor connector (A).

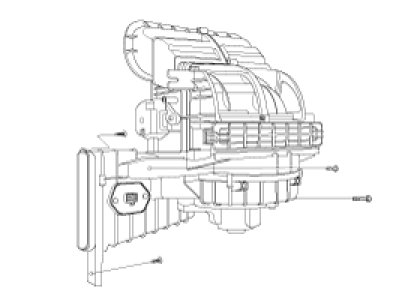

4. Remove the blower unit from the heater unit after loosening a mounting bolt & 3 screws.

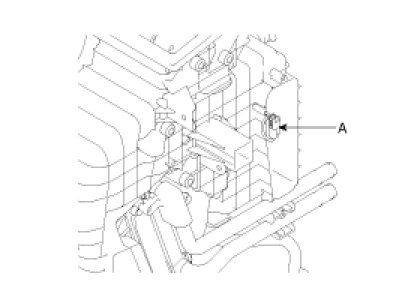

5. Remove the evaporator sensor (A) from evaporator core by pulling out.





CAUTION:
Take care that evaporator core pins are not bent.

6. Installation is the reverse order of removal.
