PCM





PCM (POWERTRAIN CONTROL MODULE)

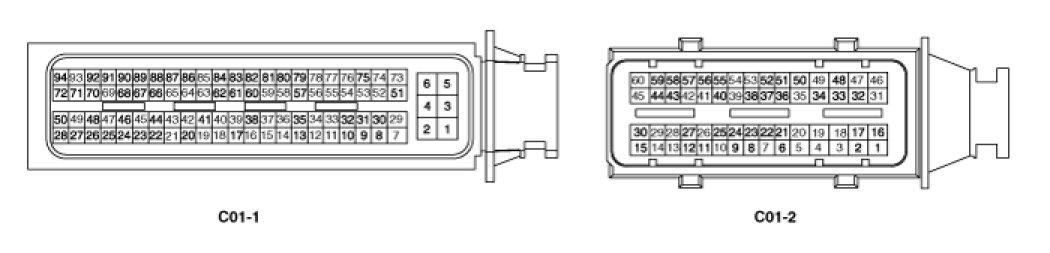

1. PCM HARNESS CONNECTOR (A/T)

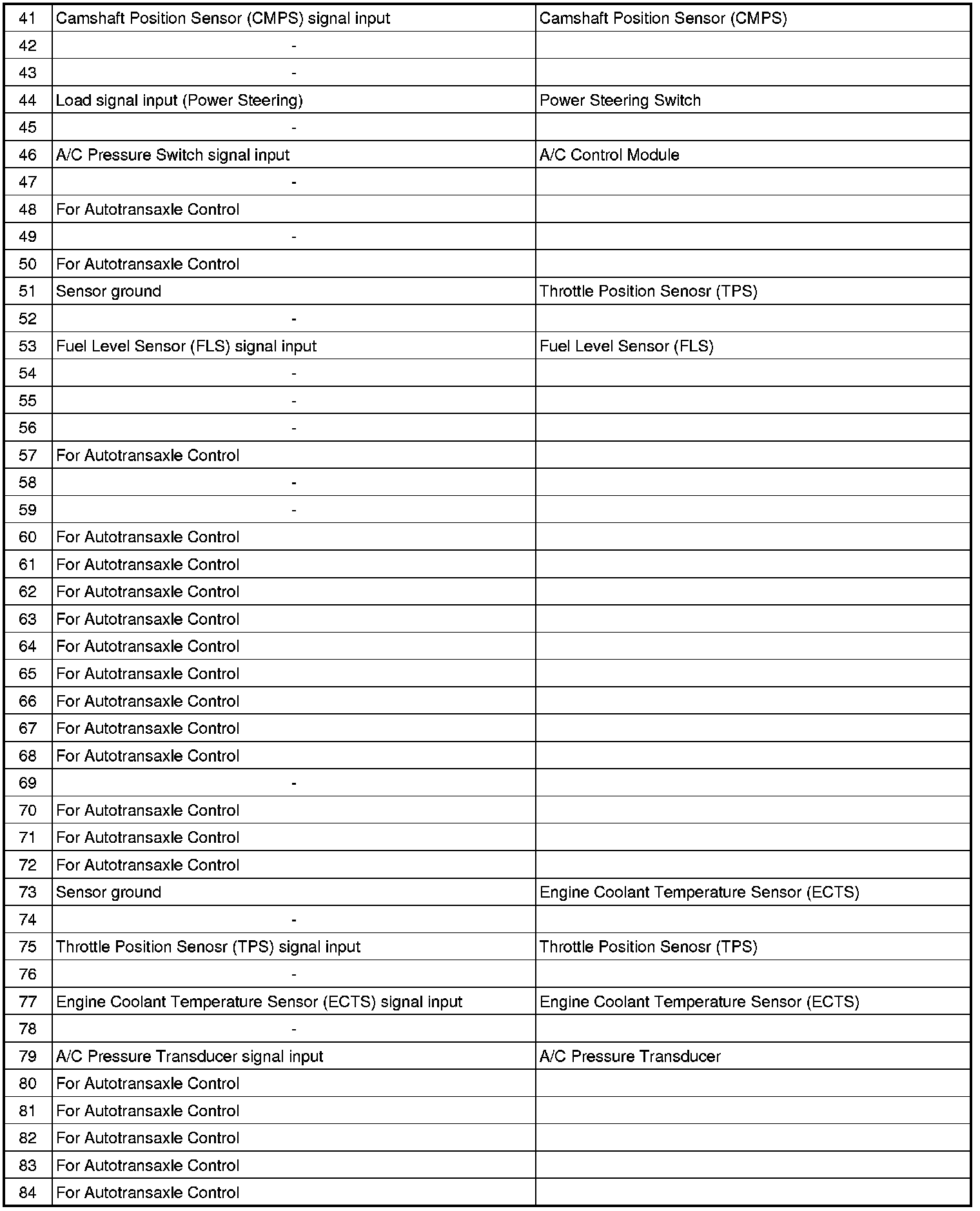

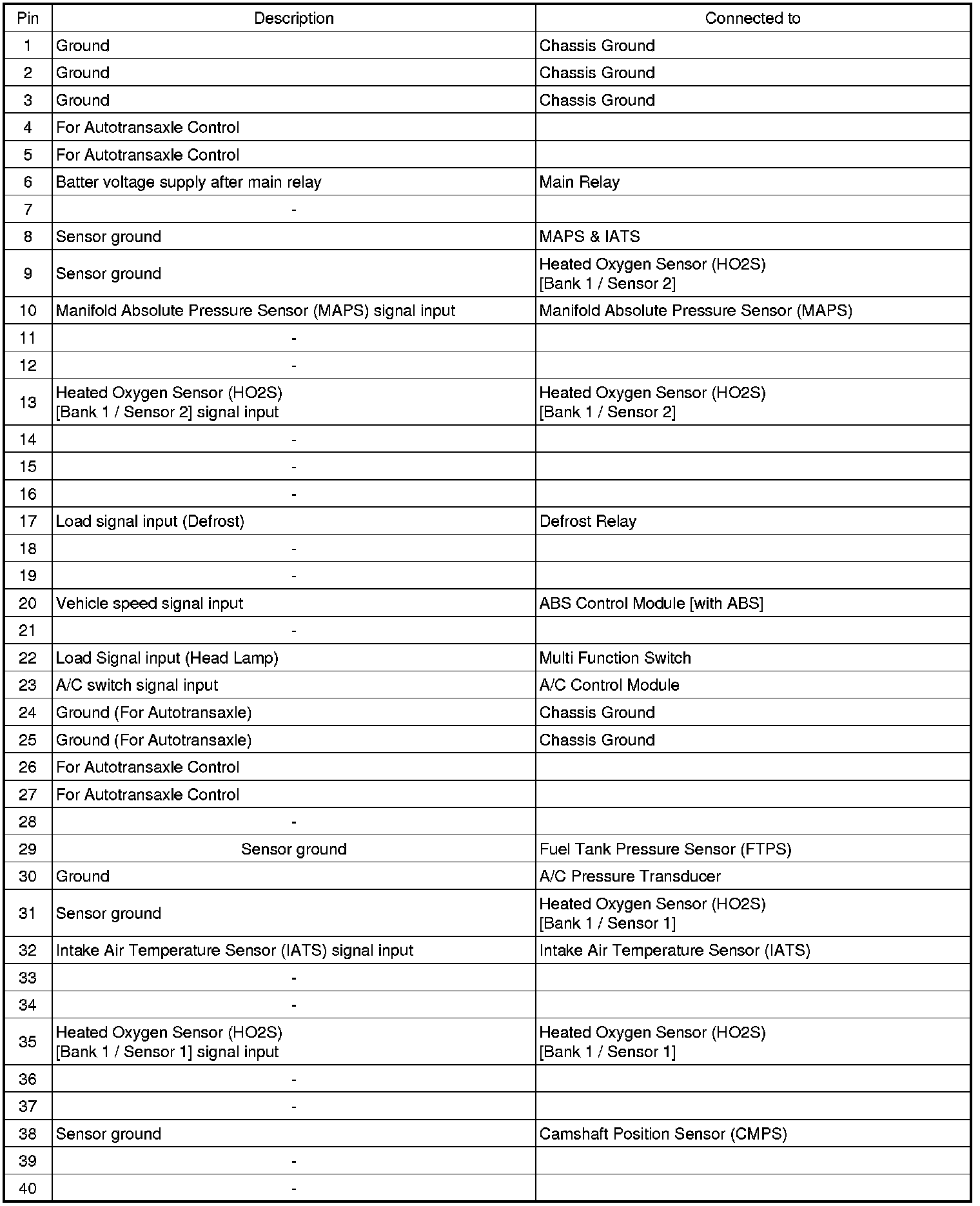

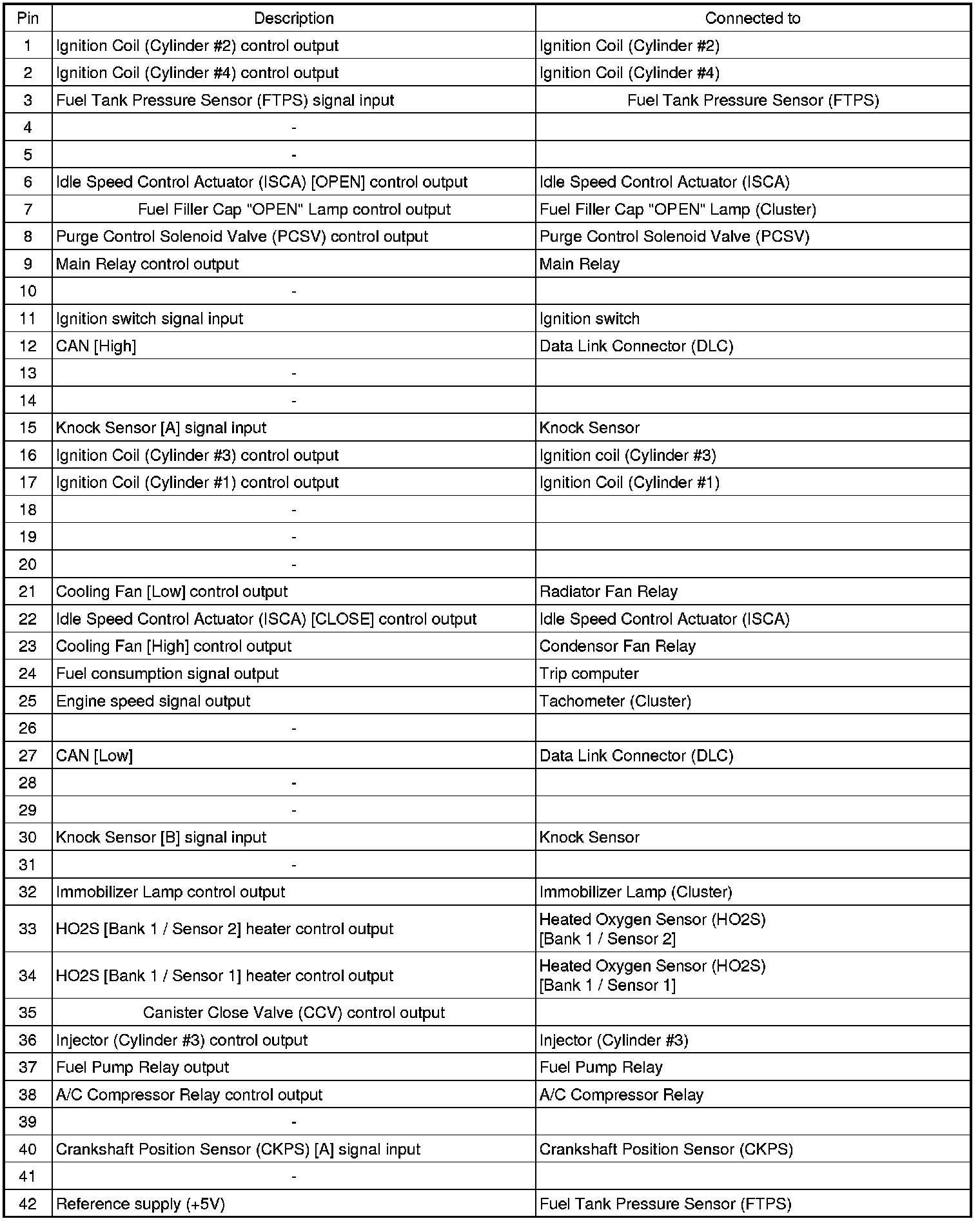

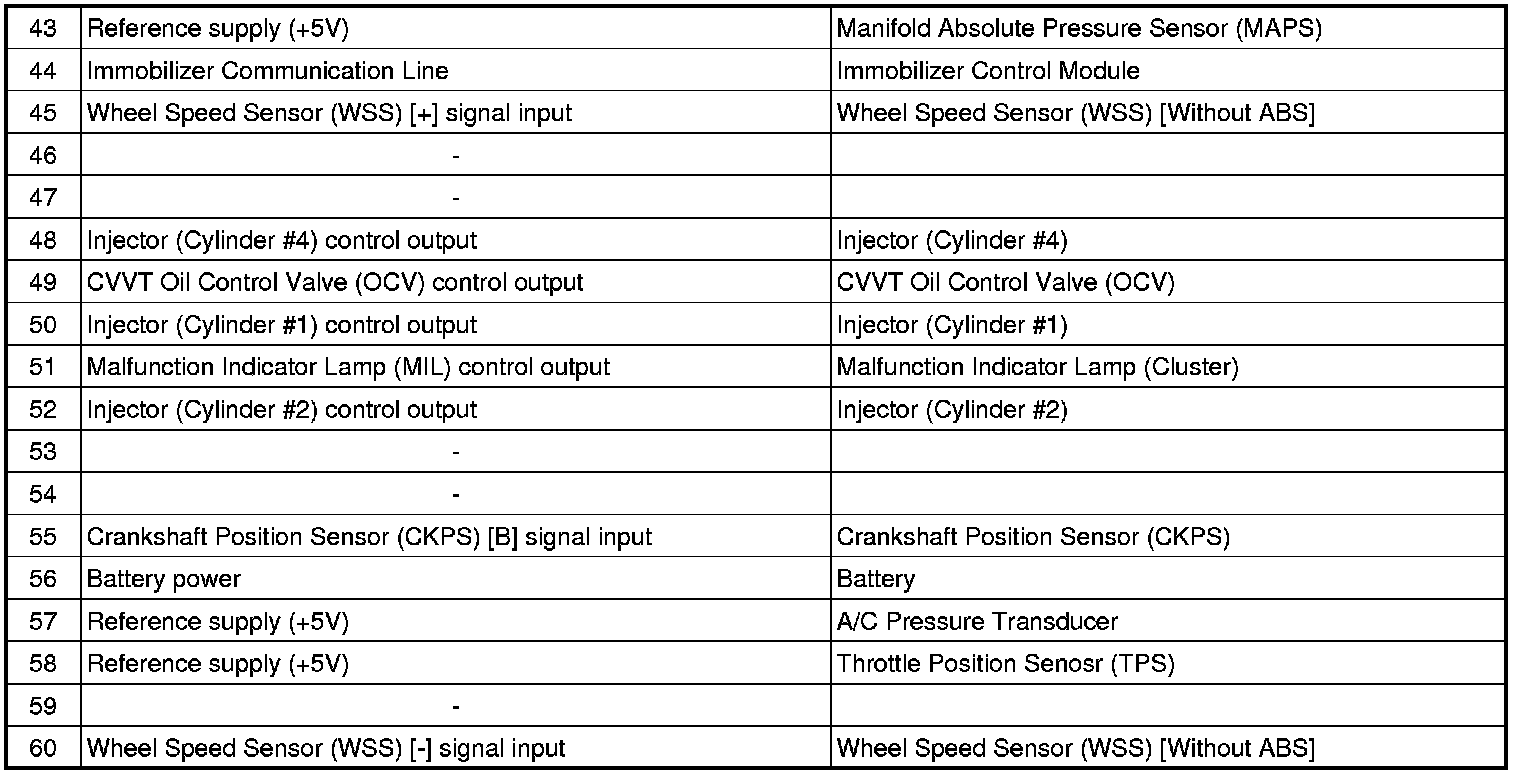

2. PCM TERMINAL FUNCTION (A/T)
CONNECTOR [C01-1]













CONNECTOR [C01-2]

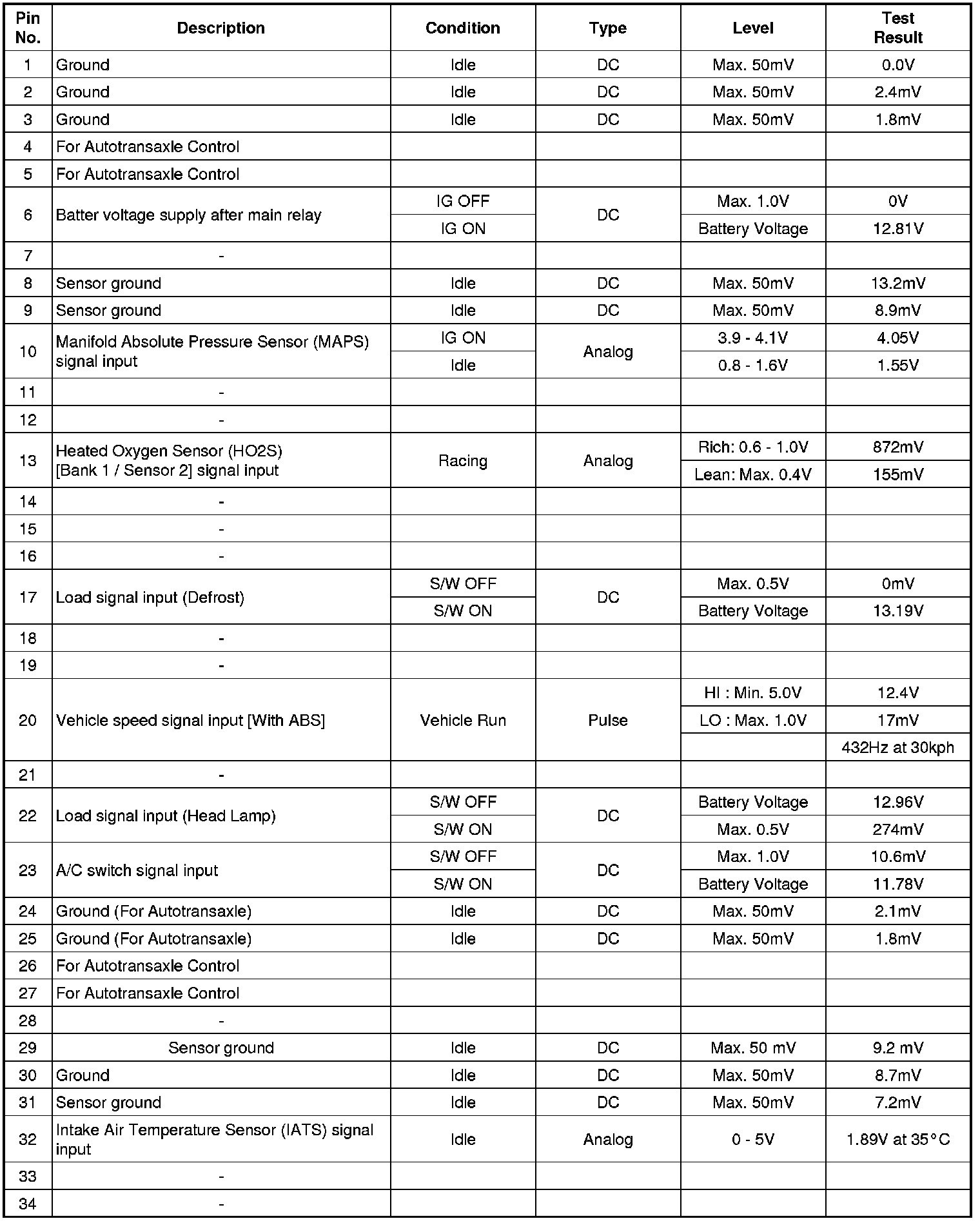

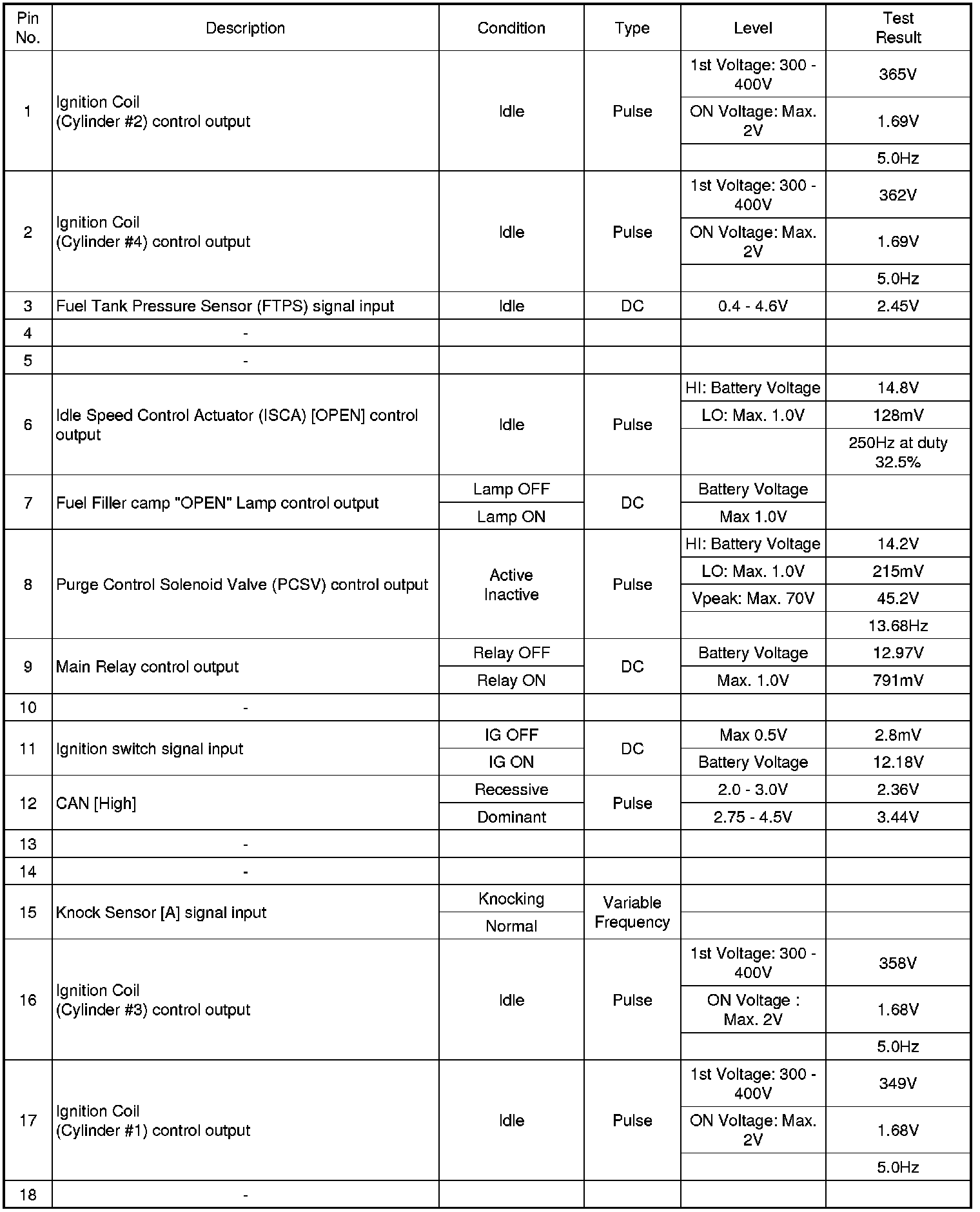

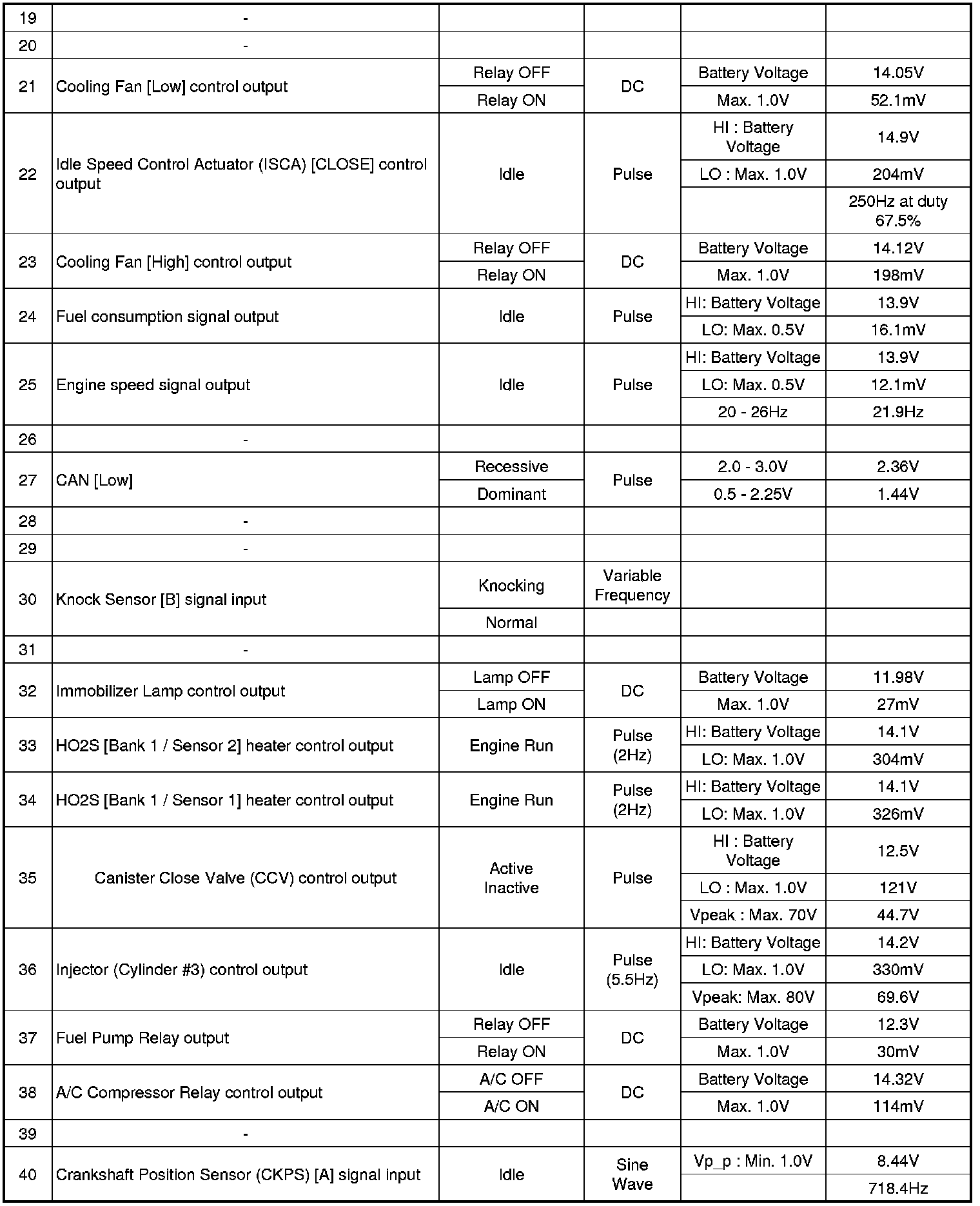

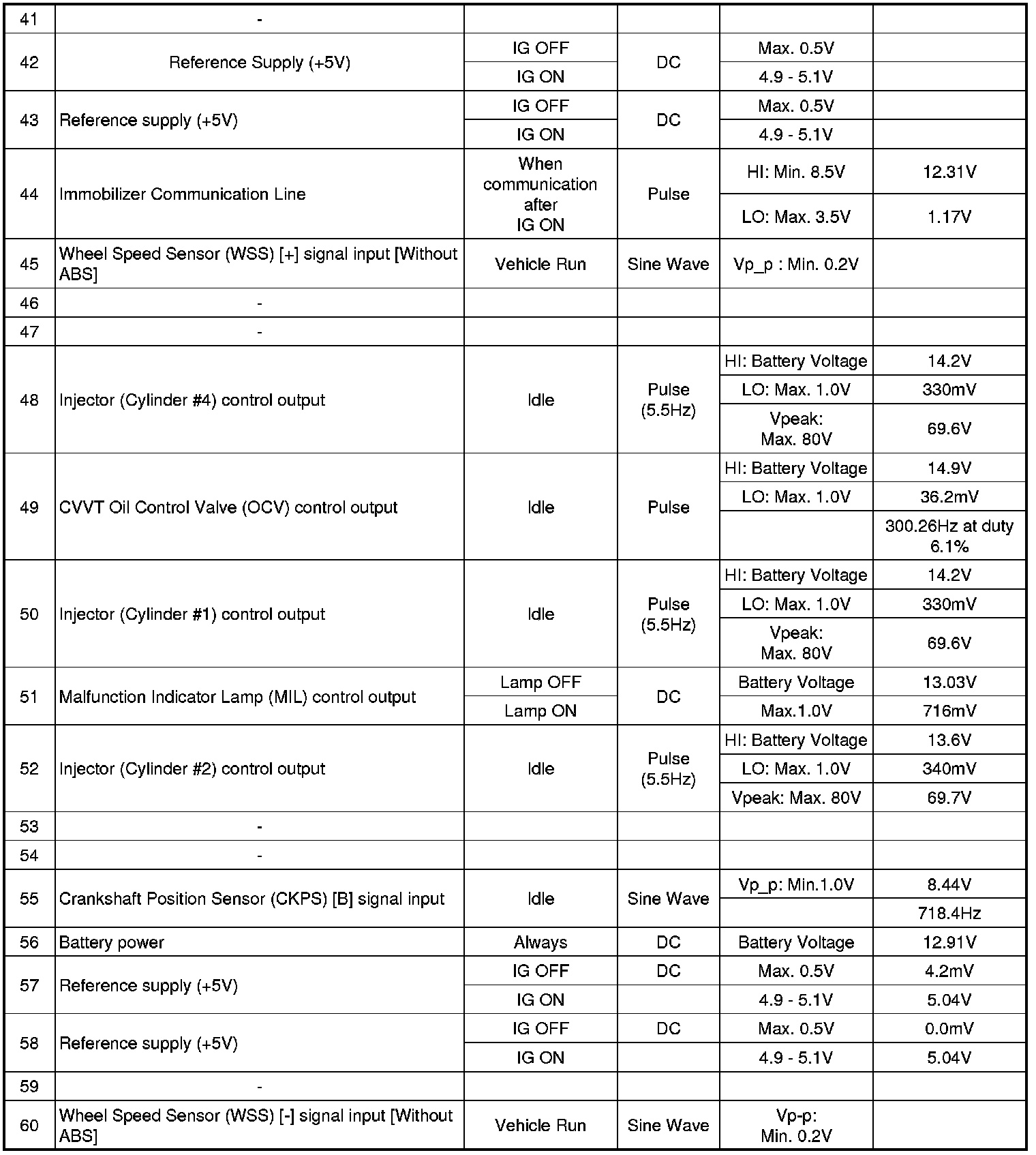

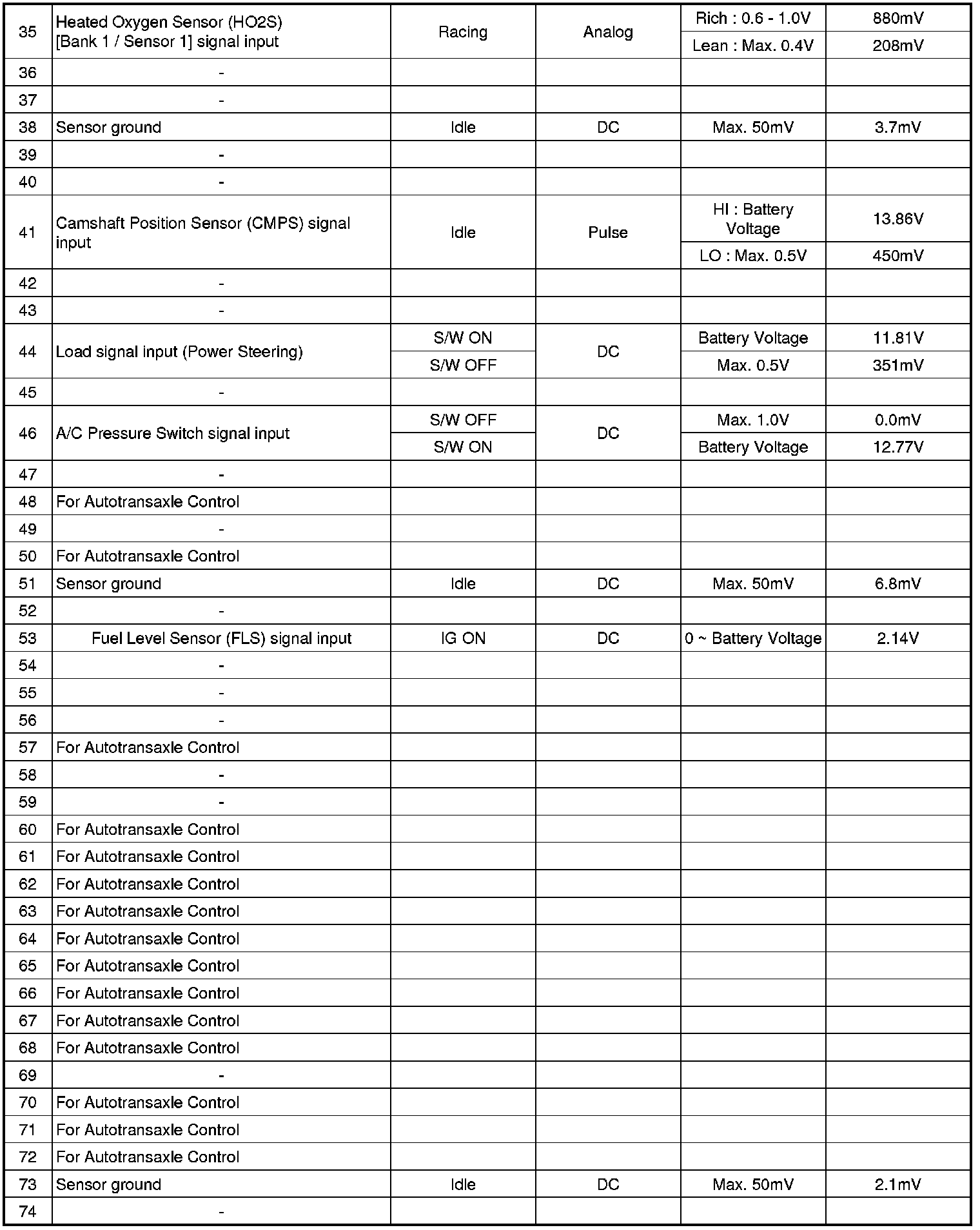

3. PCM TERMINAL IN/OUT SIGNAL (A/T)
CONNECTOR [C01-1]













CONNECTOR [C01-2]
