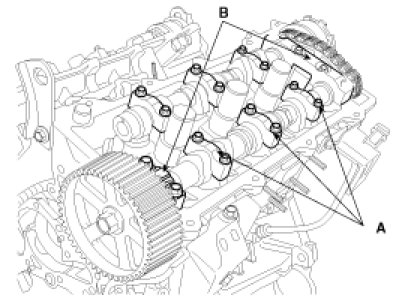

Camshaft Bearing Cap

Camshaft Bearing Cap

Tightening torque
Bearing cap bolt(A: 6•38) 10.8 - 12.7 Nm (1.1 - 1.3 kgf.m, 8.0 - 9.4 lb-ft)

Bearing cap bolt(B: 8•38) 20.6 - 22.5 Nm (2.1 - 2.6 kgf.m, 15.2 - 18.8 lb-ft)
