Oil Pan, Engine

Oil Pan

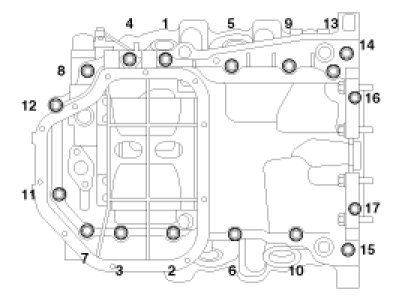

upper oil pan

Tightening torque
Bolts 1 - 15 18.6 - 23.5 Nm (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
Bolts 16, 17 4.9 - 6.9 Nm (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

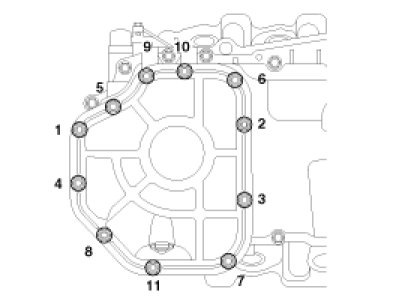

lower oil pan

Tightening torque
9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
