Pinout Values and Diagnostic Parameters





ECM Terminal And Input/Output signal

ECM Harness Connector

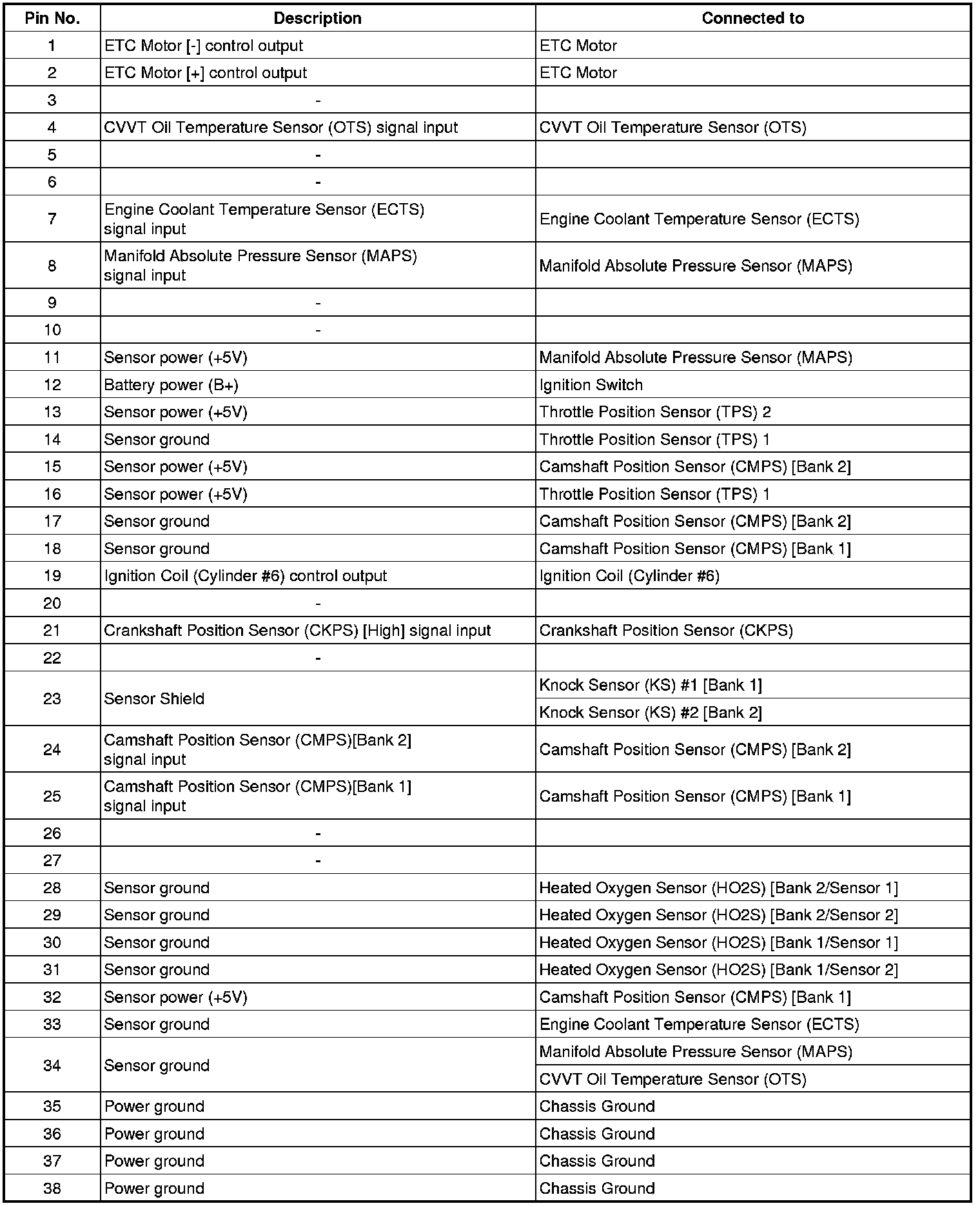

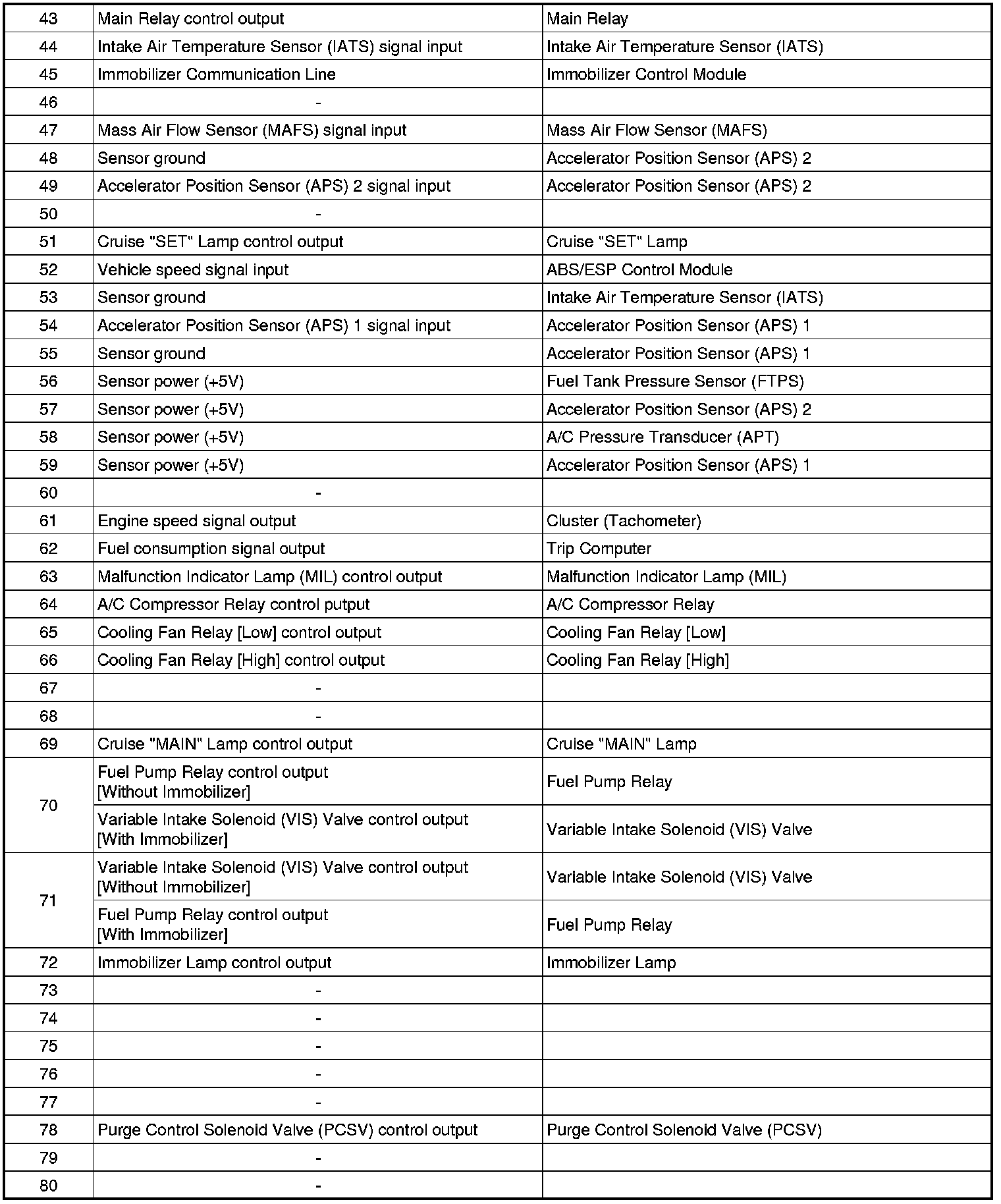

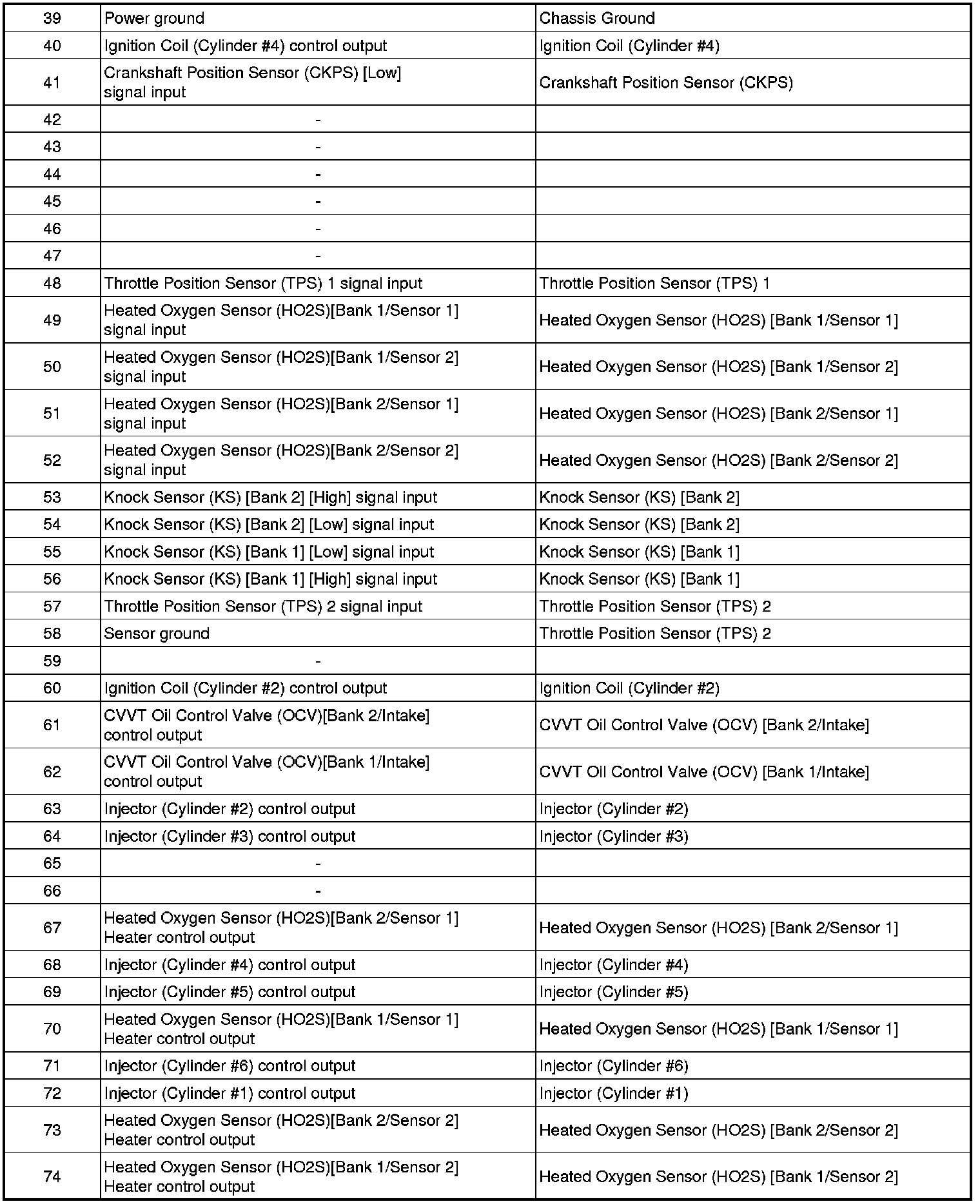

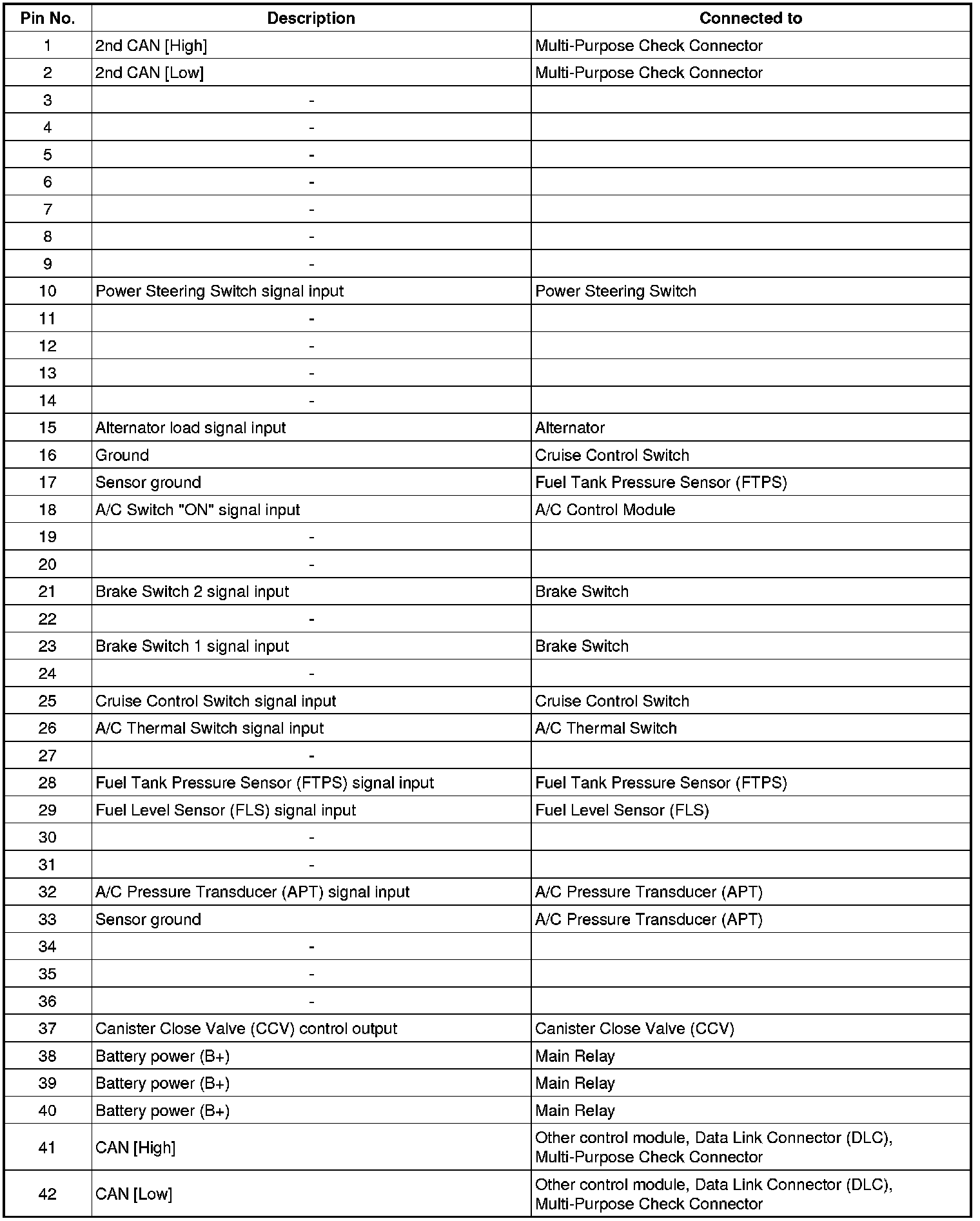

ECM Terminal Function

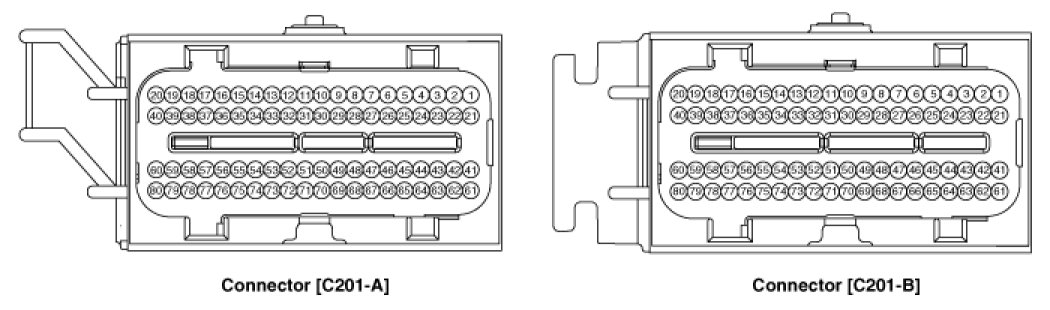

Connector [C201-A]









Connector [C201-B]













ECM Terminal Input/Output Signal

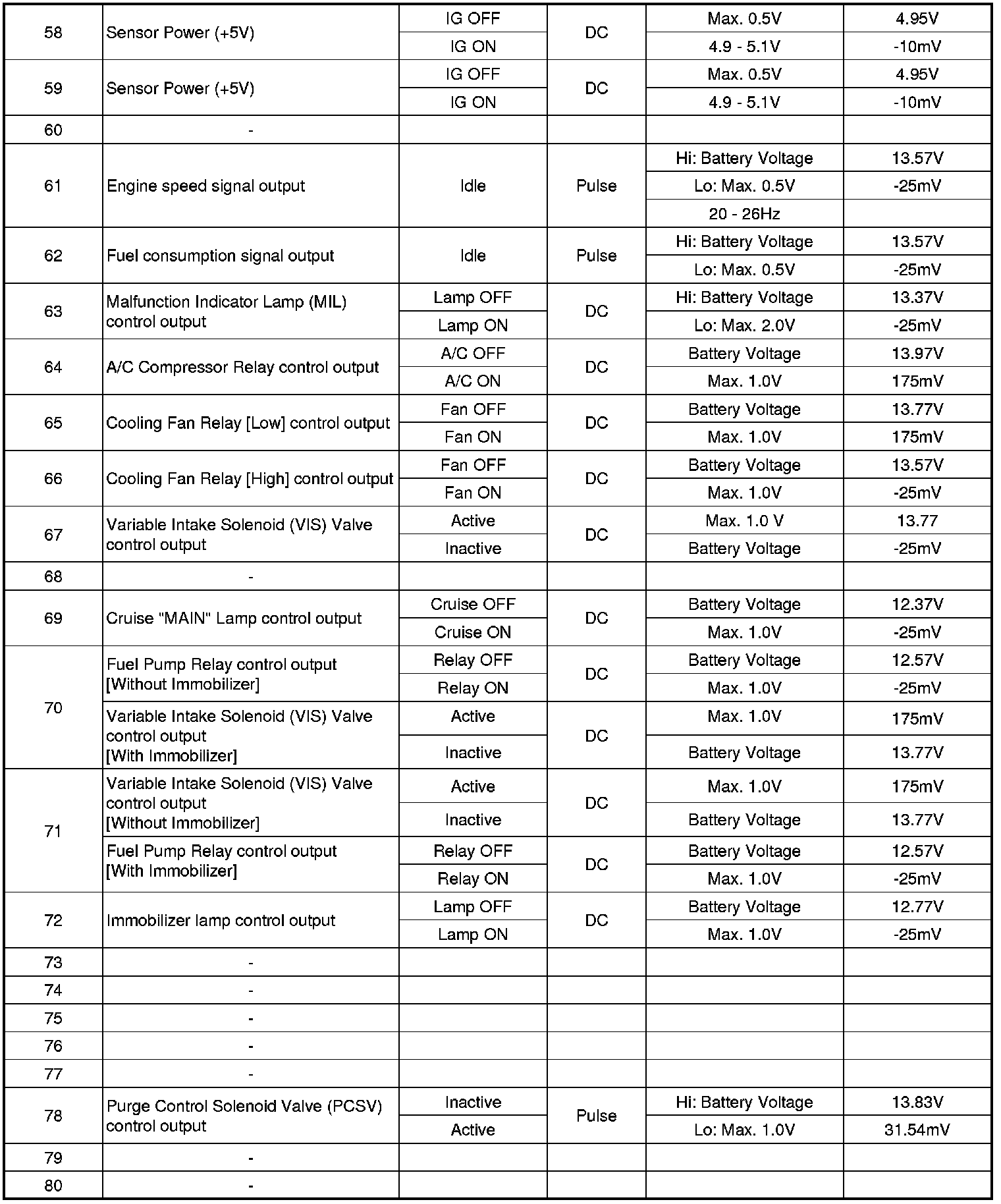

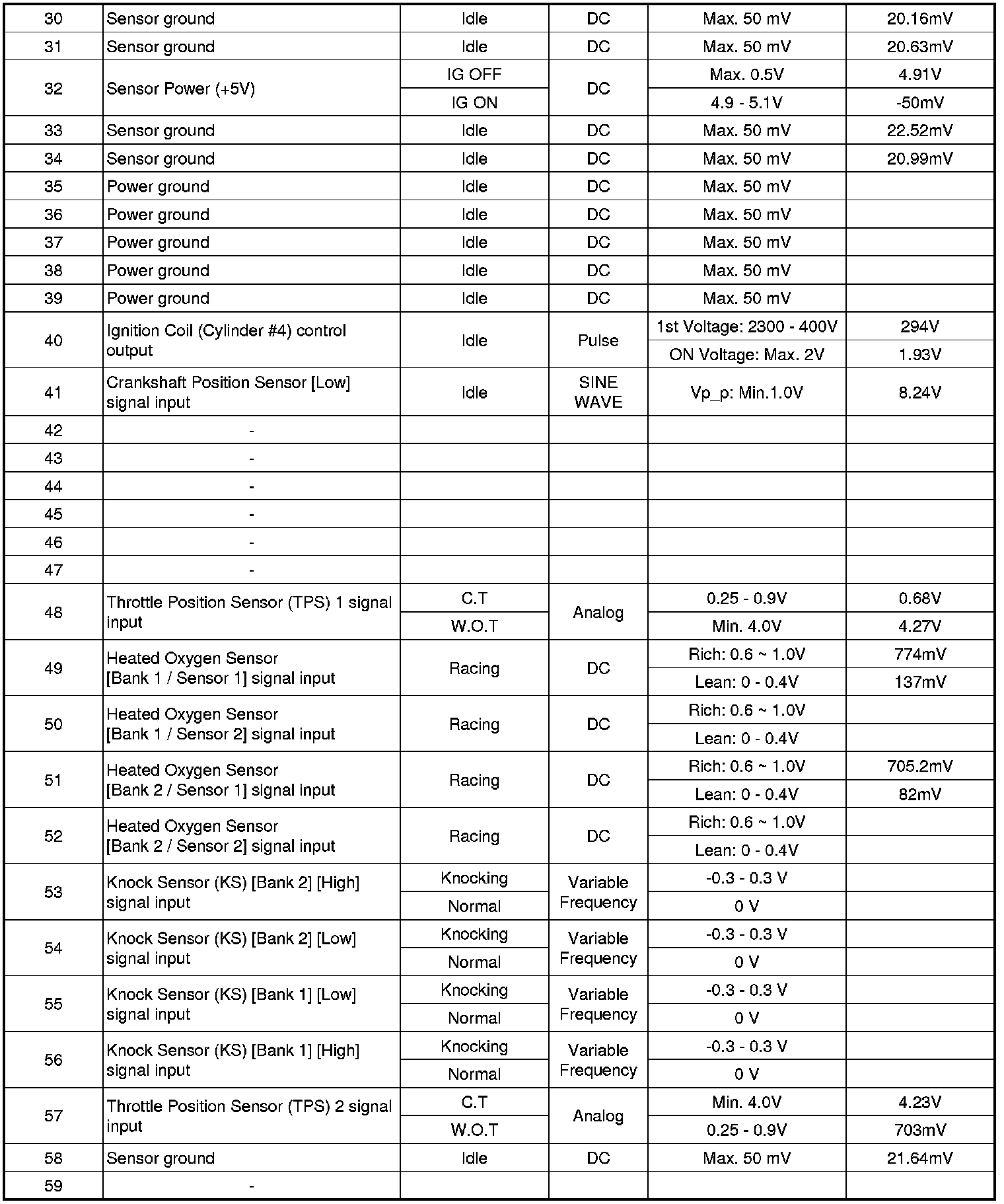

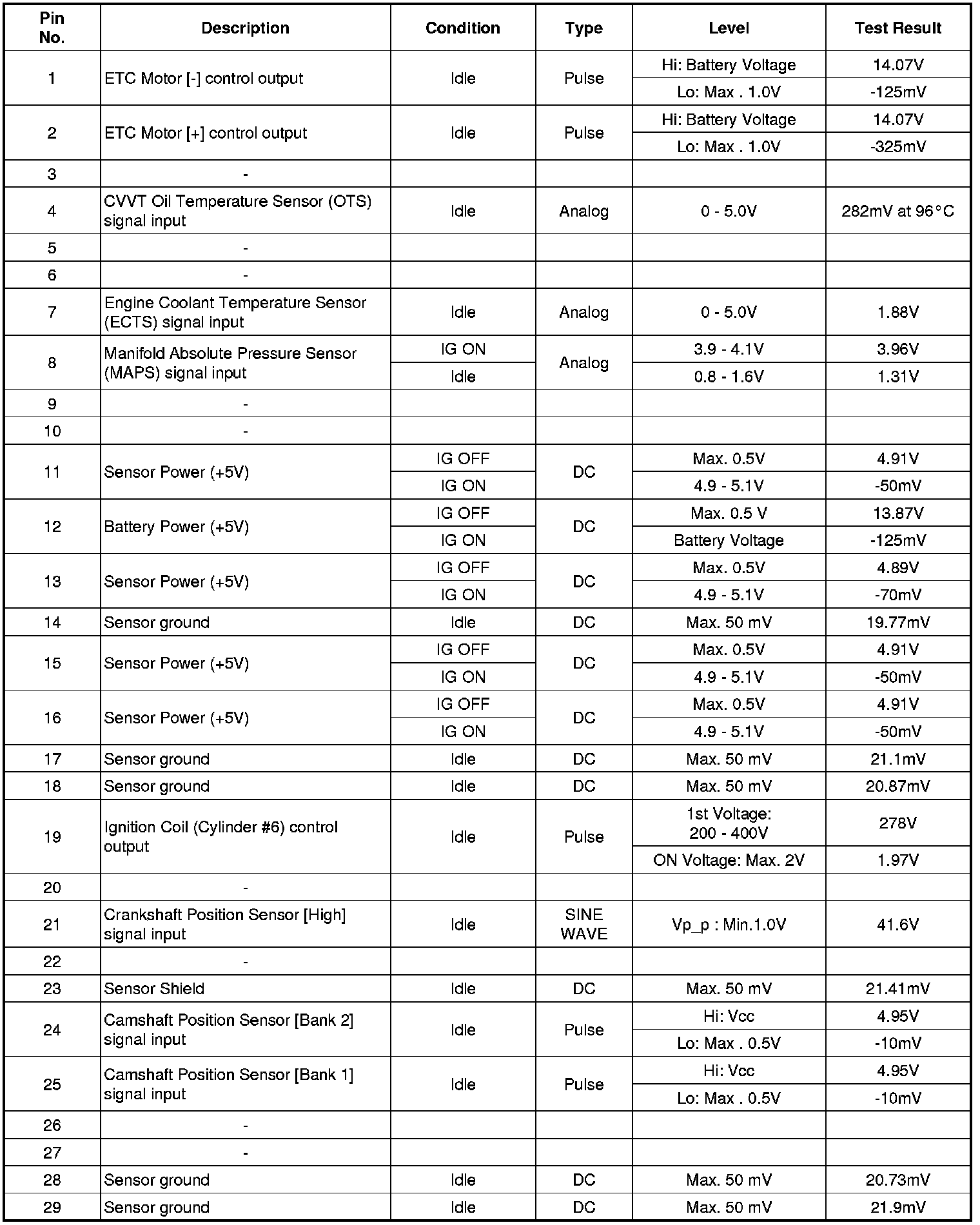

Connector [C201-A]

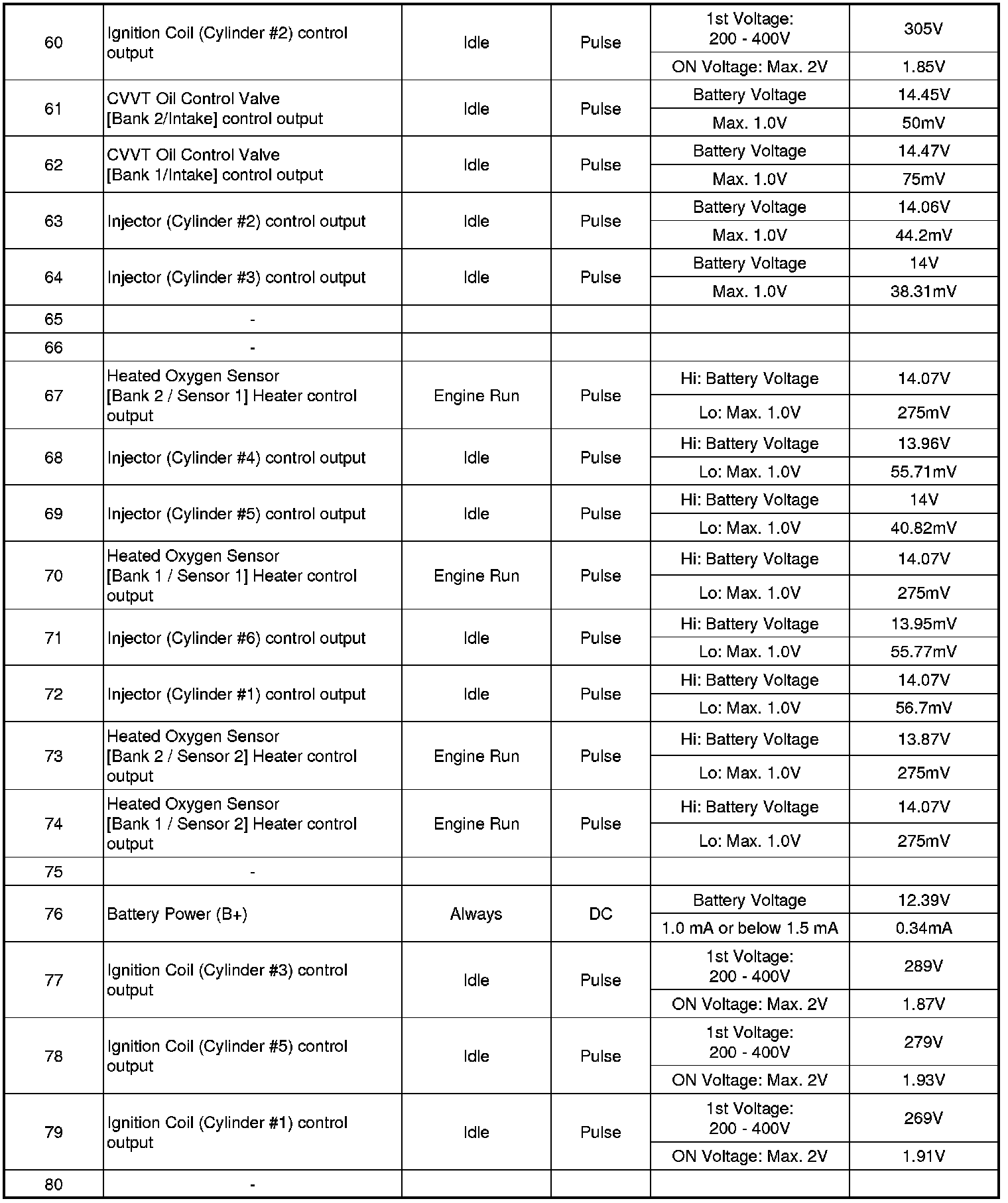

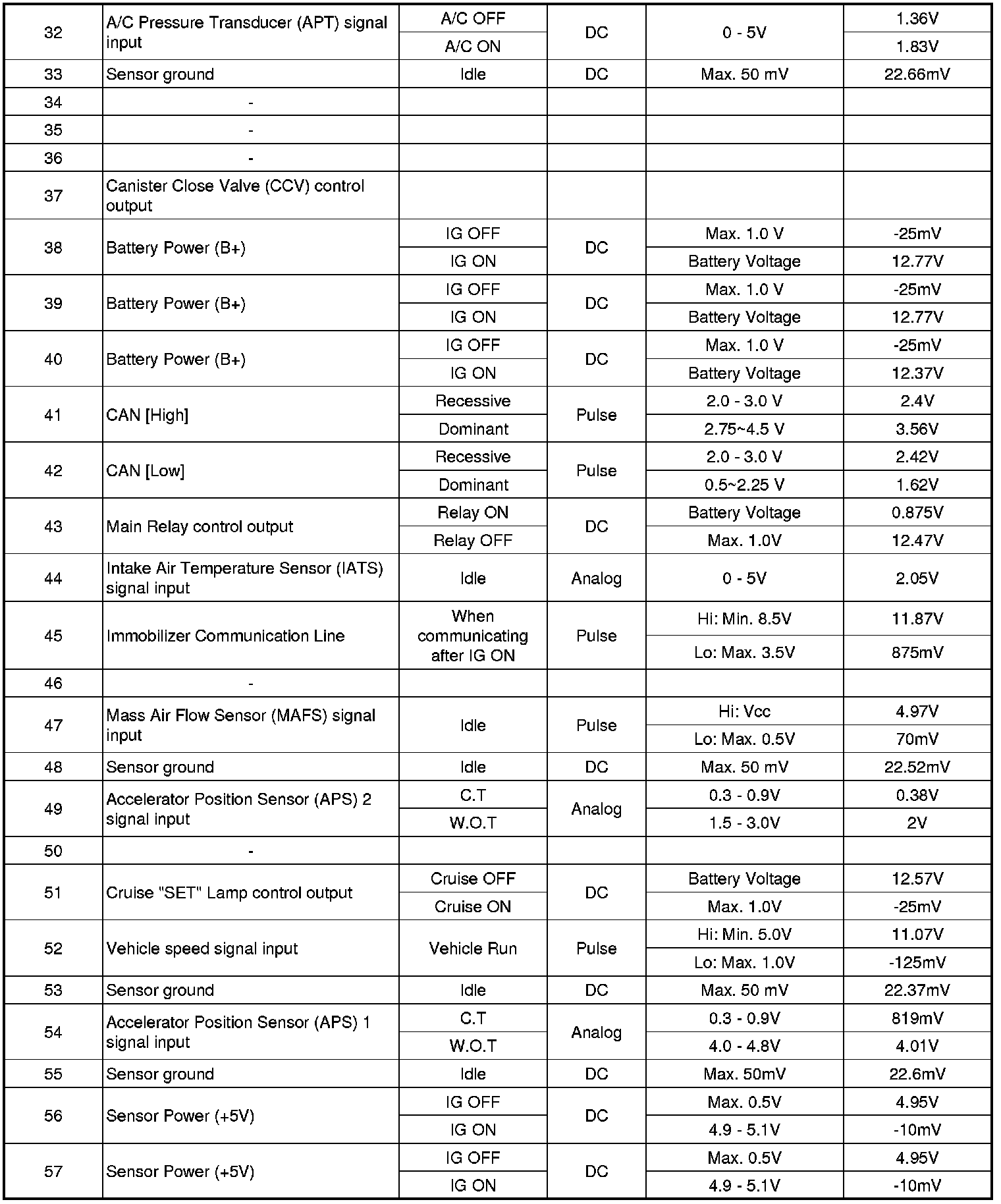

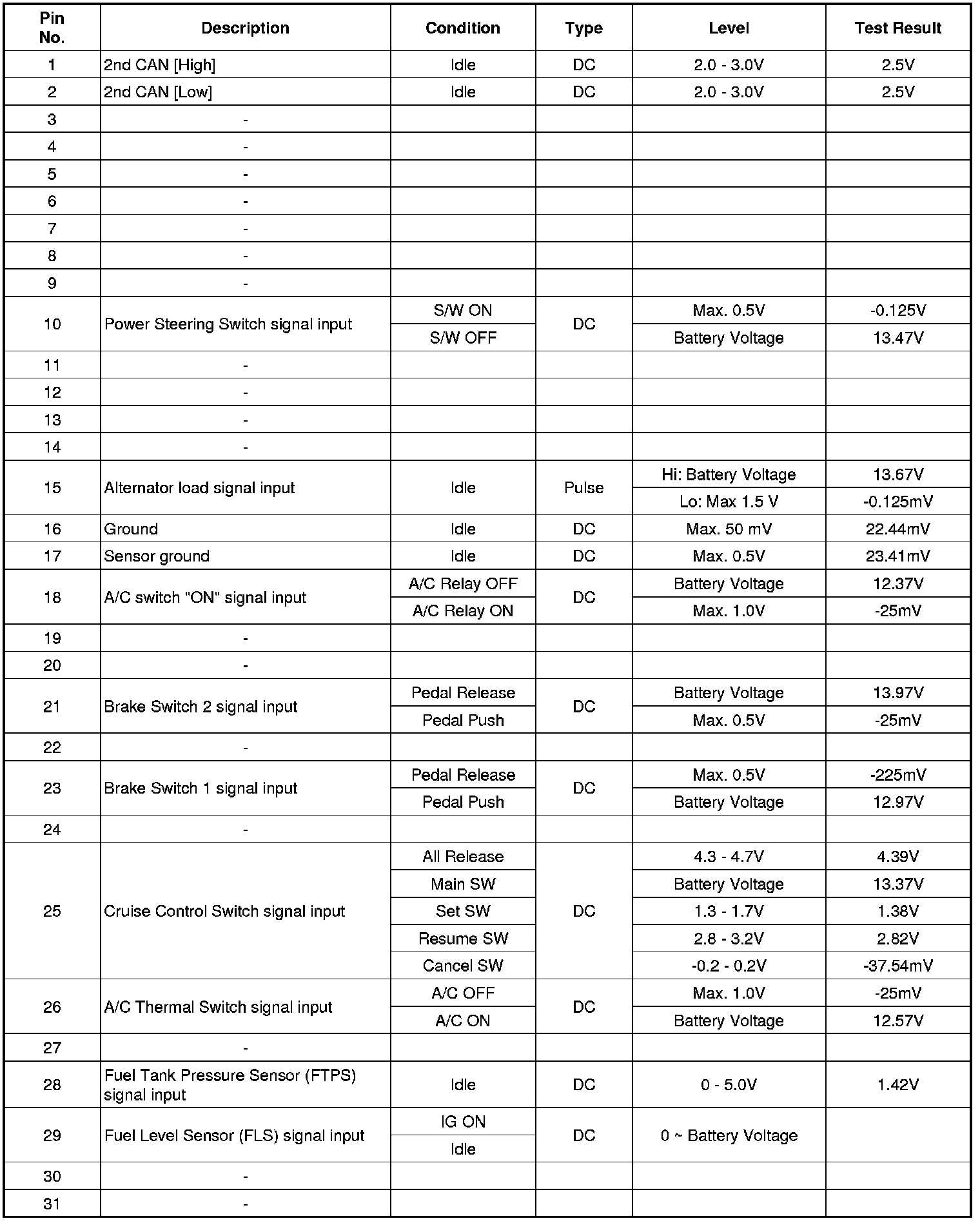

Connector [C201-B]
