Engine Control System - 2.4L
>>
Purge Control Solenoid Valve (PCSV)
>>
Schematic Diagram
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

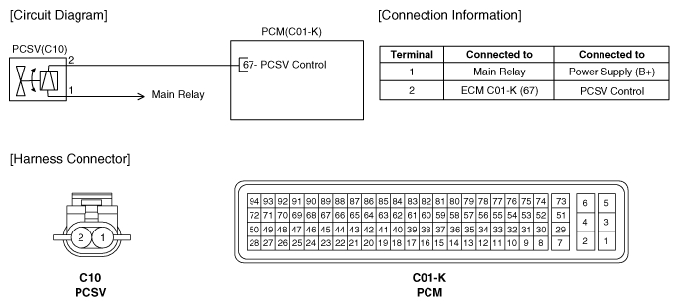

Fig 1: PCSV And PCM - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
