Overhaul

Disassembly

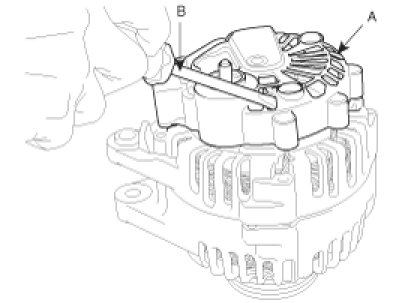

1. Remove the alternator cover(A) using a screw driver(B).

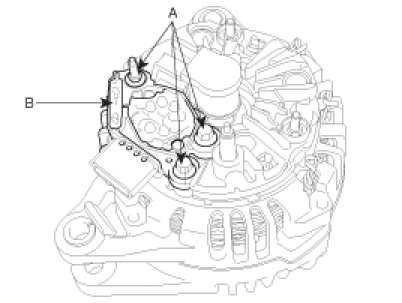

2. Loosen the mounting bolts(A) and disconnect the brush holder assembly(B).

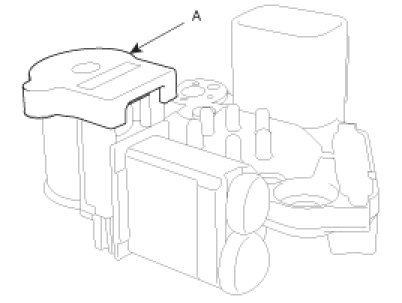

3. Remove the slip ring guide(A).

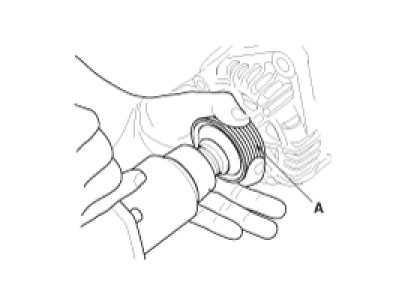

4. Remove the nut, pulley(A) and spacer.

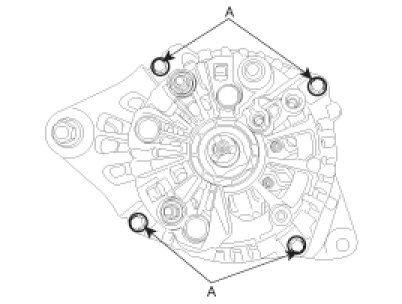

5. Loosen the 4 through bolts(A).

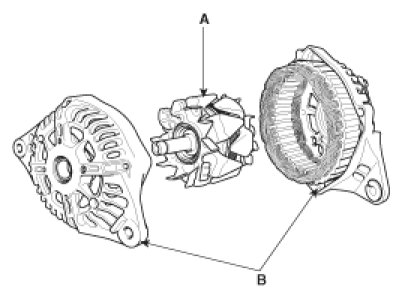

6. Disconnect the rotor(A) and cover(B).

7. Reassembly is the reverse order of disassembly.
