Ignition Coil: Service and Repair





Replacement

Ignition Coil
1. Remove the engine cover.

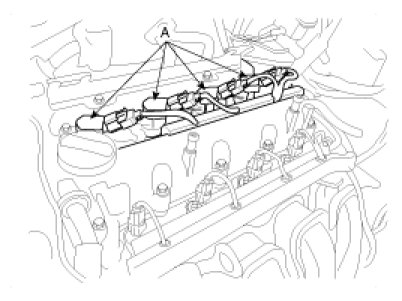

2. Disconnect the ignition coil connector(A).




3. Remove the ignition coil (A).




4. Installation is the reverse of removal.
