Relay Box: Application and ID

FUSE & RELAY INFORMATION


I/P Junction Box Layout View:

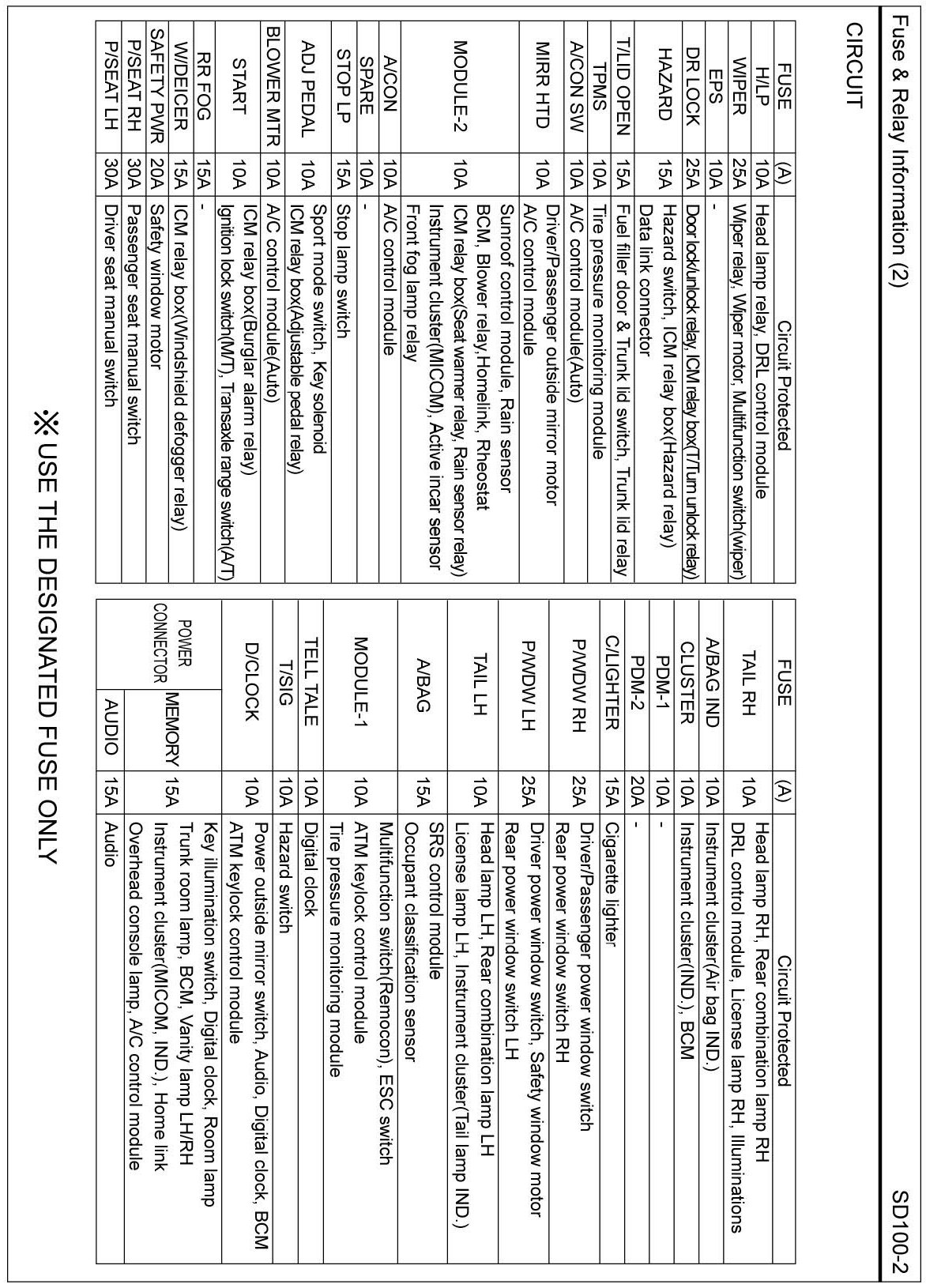

I/P Junction Box Layout Circuit Details:

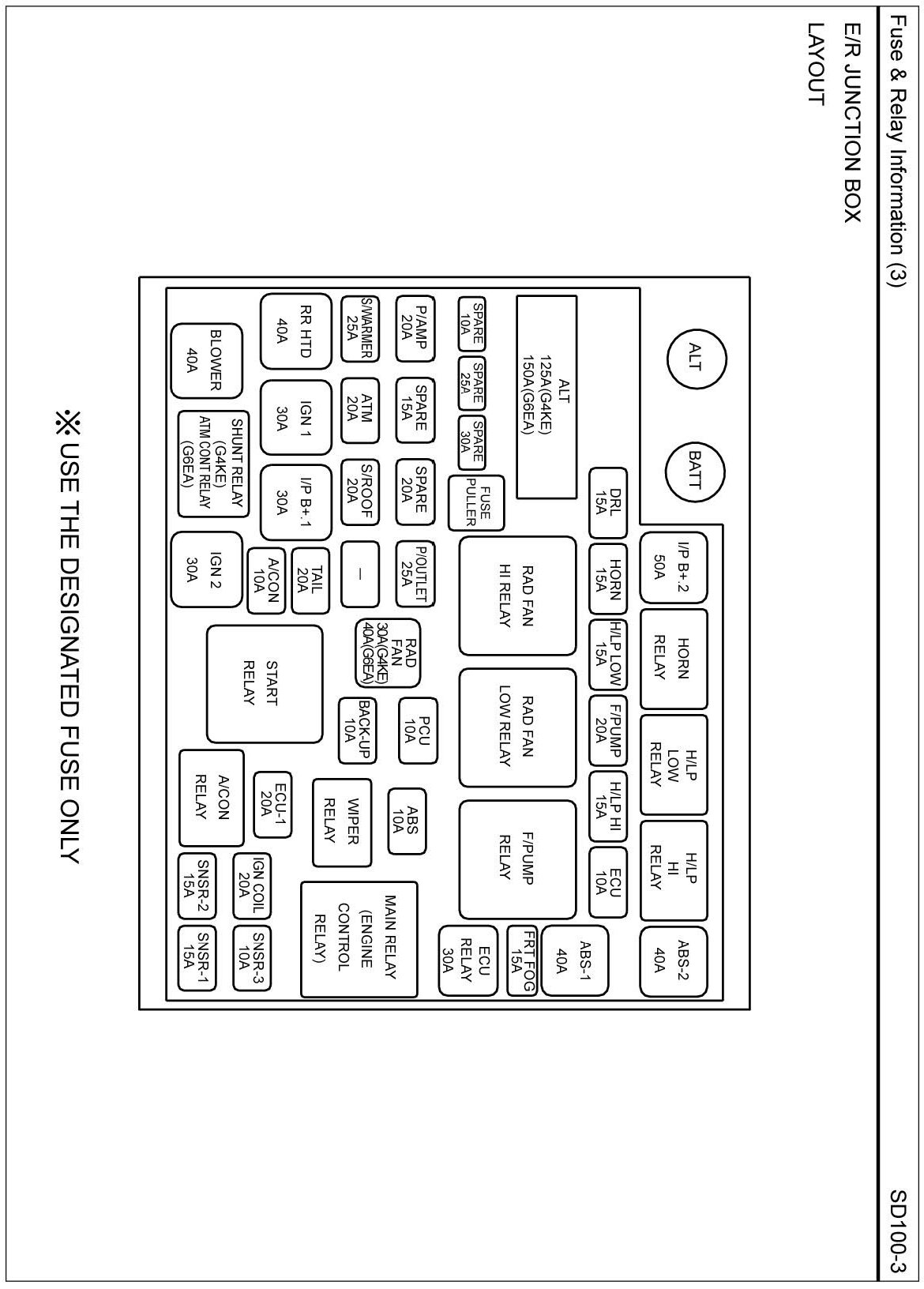

E/R Junction Box Layout View:

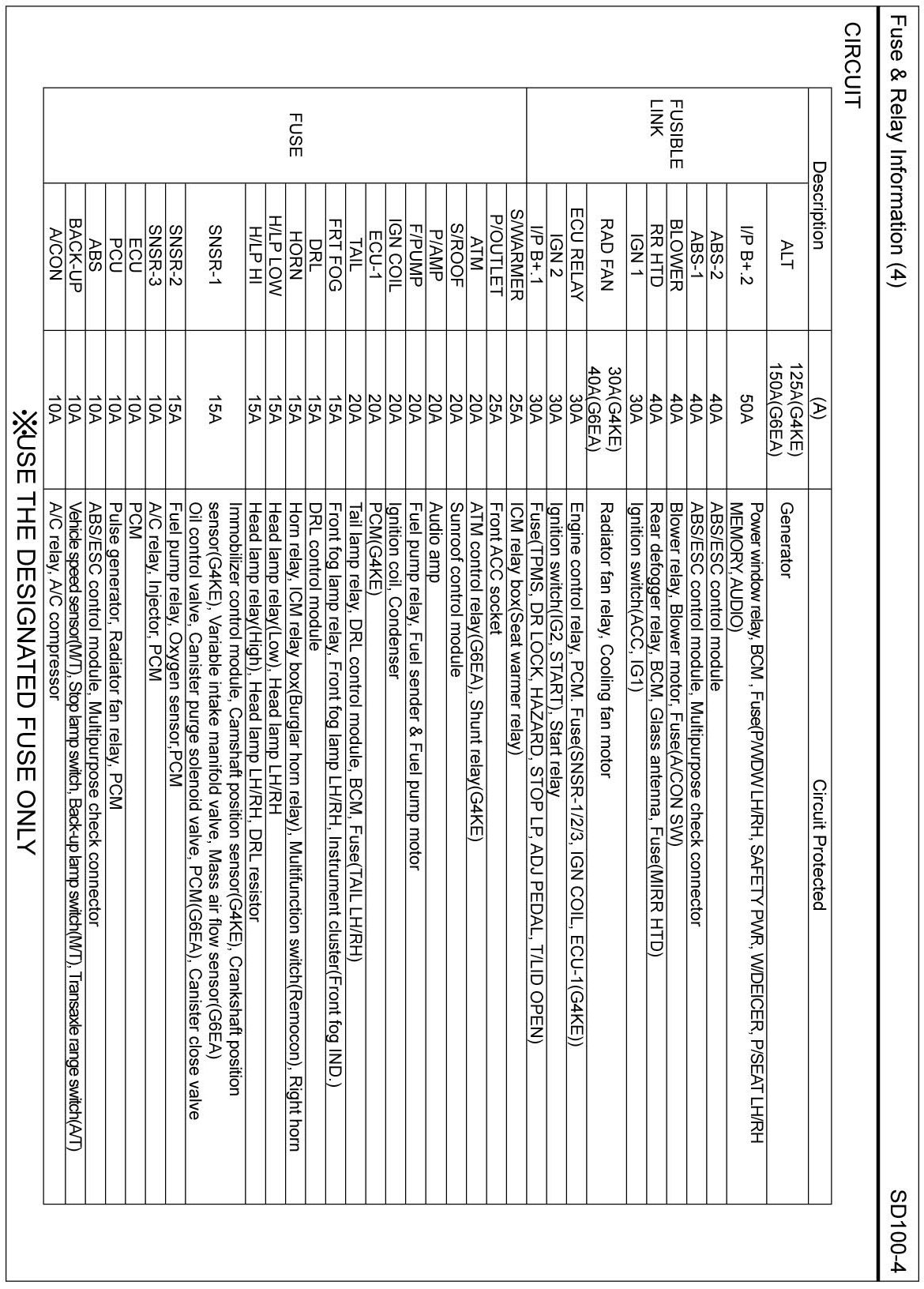

E/R Junction Box Layout Circuit Details:

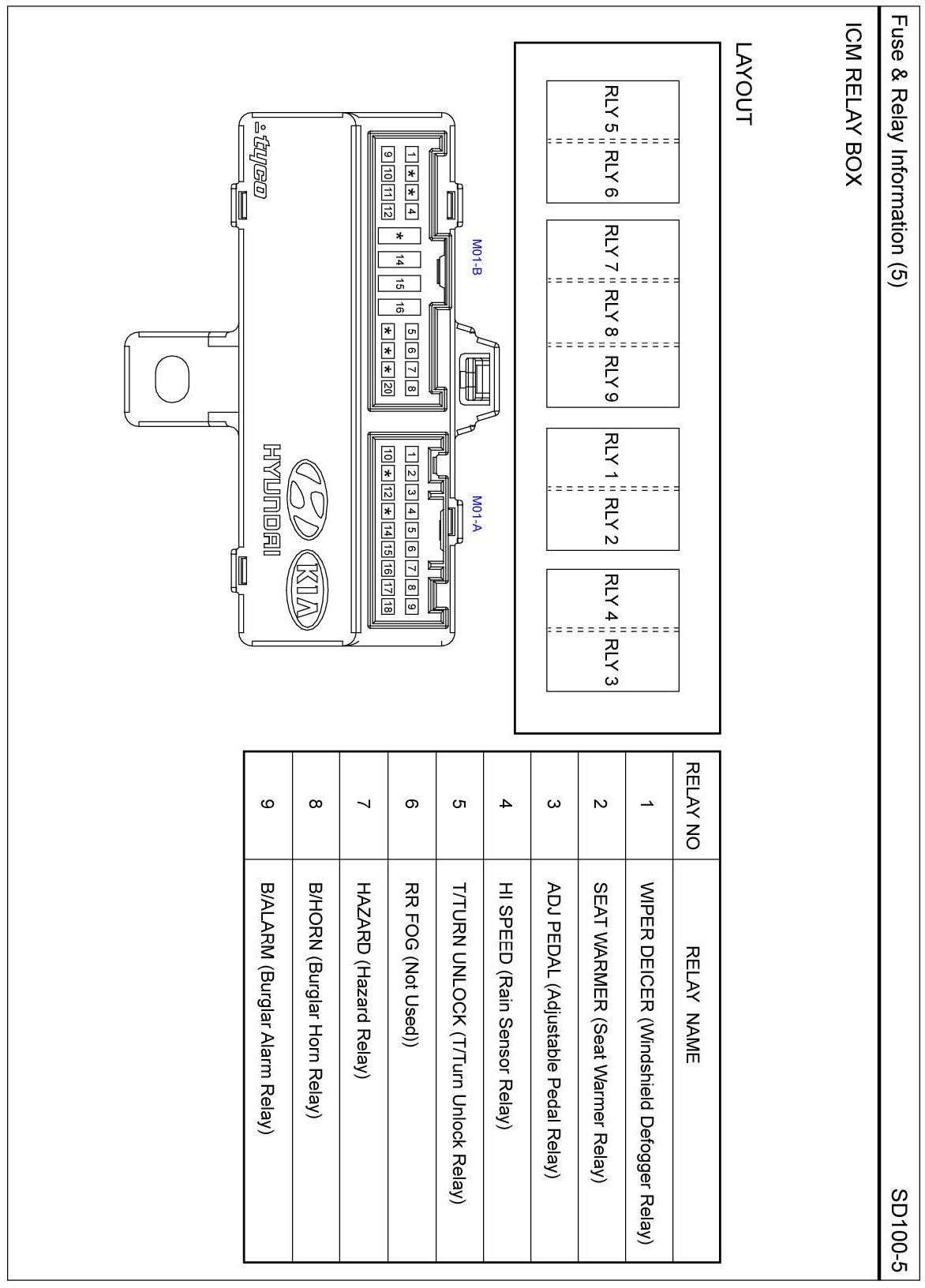

ICM Relay Box Layout:
