Fog/Driving Lamp: Service and Repair





Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper .

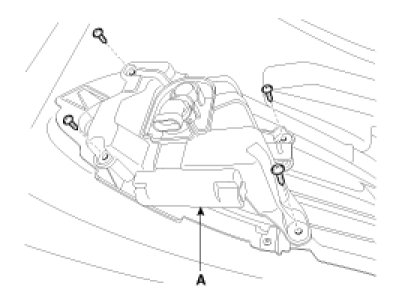

3. Remove the front fog lamp (A) after loosening the screws and disconnecting the fog lamp connector.

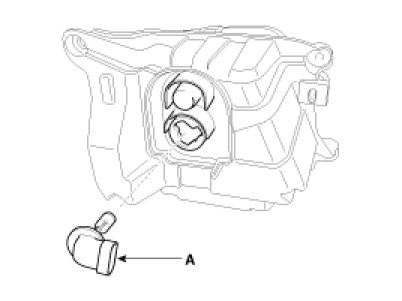

4. Replace the front fog bulb(A).




5. Installation is the reverse of removal.
