Air Register: Service and Repair

Replacement

Air Vent Replacement
1. Remove the center facia panel.
2. Remove the crash pad side cover.

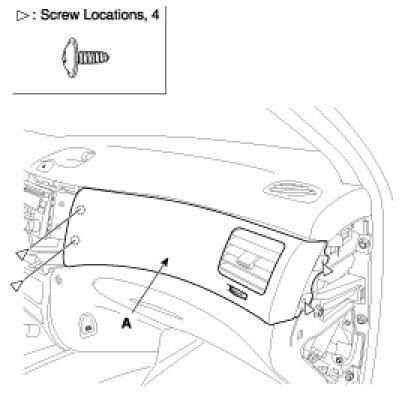

3. After loosening the mounting screw, then remove the air vent (A).

4. Installation is the reverse of removal.
