Repair Procedures





REMOVAL

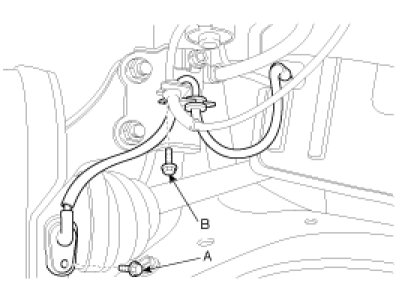

1. Remove the front wheel speed sensor mounting bolt (A) and cable mounting bolt (B).

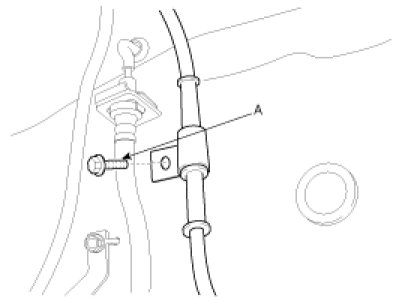

2. Remove the front wheel speed sensor bracket (A).




3. Remove the front wheel guard.
4. Disconnect the front wheel speed sensor connector (A) , then remove the front wheel speed sensor.
