Circuit Diagram (3)

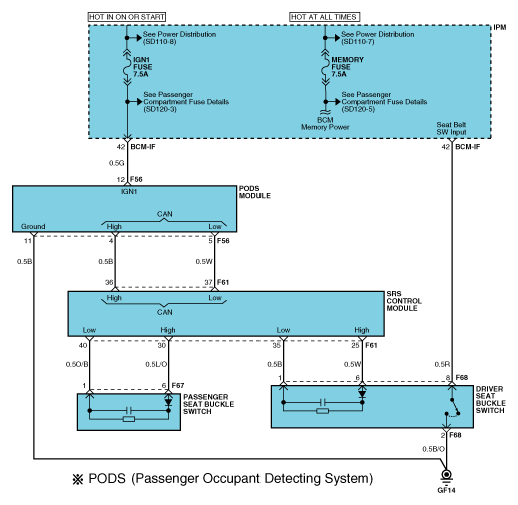

Fig 1: SRS Control Module Circuit Diagram (3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
