SRS Control Module (SRSCM)
>>
B1489 PODS (Passenger Occupant Detecting System) ECU Defect
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

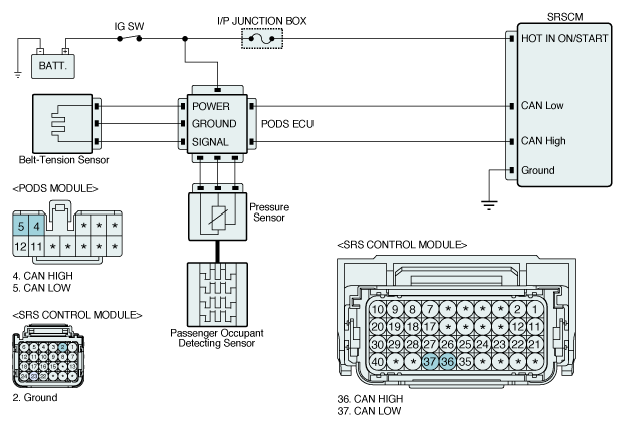

Fig 1: B1489 Diagnostic Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
