Circuit Diagram

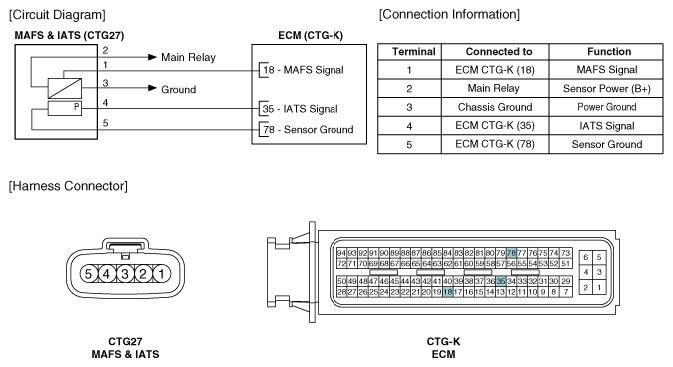

Fig 1: Mass Air Flow Sensor & Intake Air Temperature Sensor - Circuit Diagram
G06485531Courtesy of KIA MOTORS AMERICA, INC.
