Rear Window Glass: Components

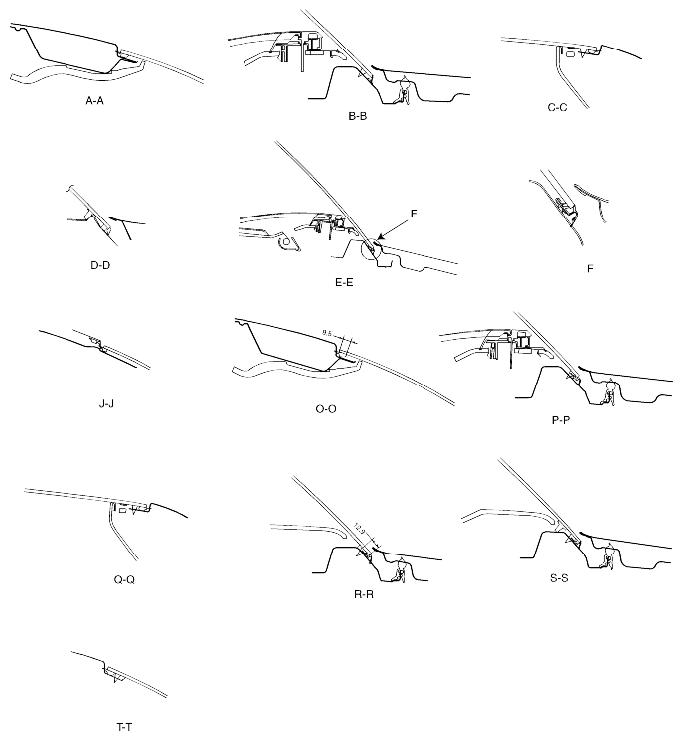

Fig 1: Identifying Rear Window Glass Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

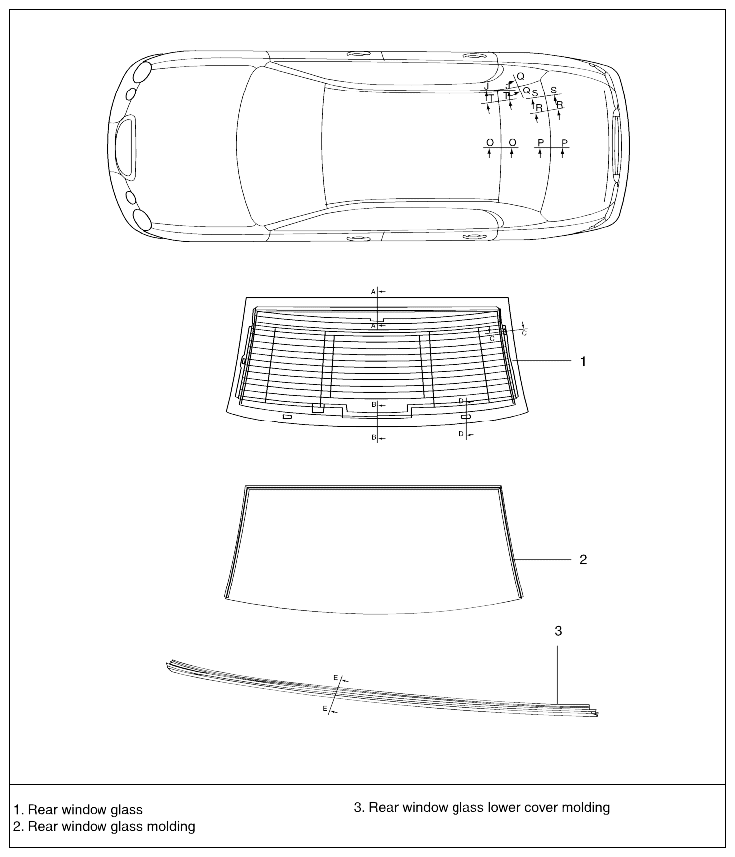

Fig 2: Identifying Rear Window Glass Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
