Cabin Temperature Sensor / Switch: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the center console

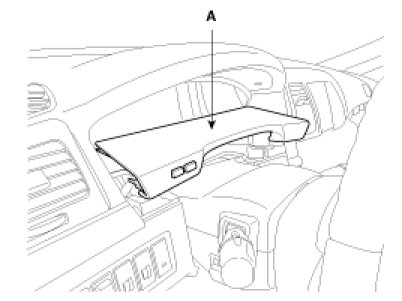

3. Remove the cluster garnish (A)

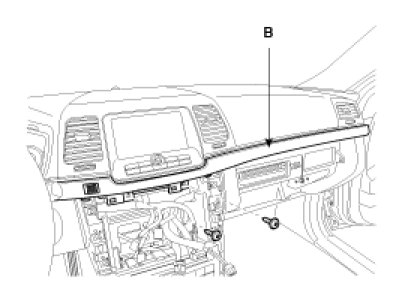

4. After loosening the screw, then remove the crash pad center garnish (B).

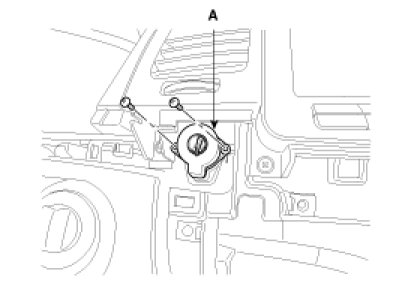

5. Remove the IN-car sensor (A).




6. Installation is the reverse of removal.
