Steering Control Module

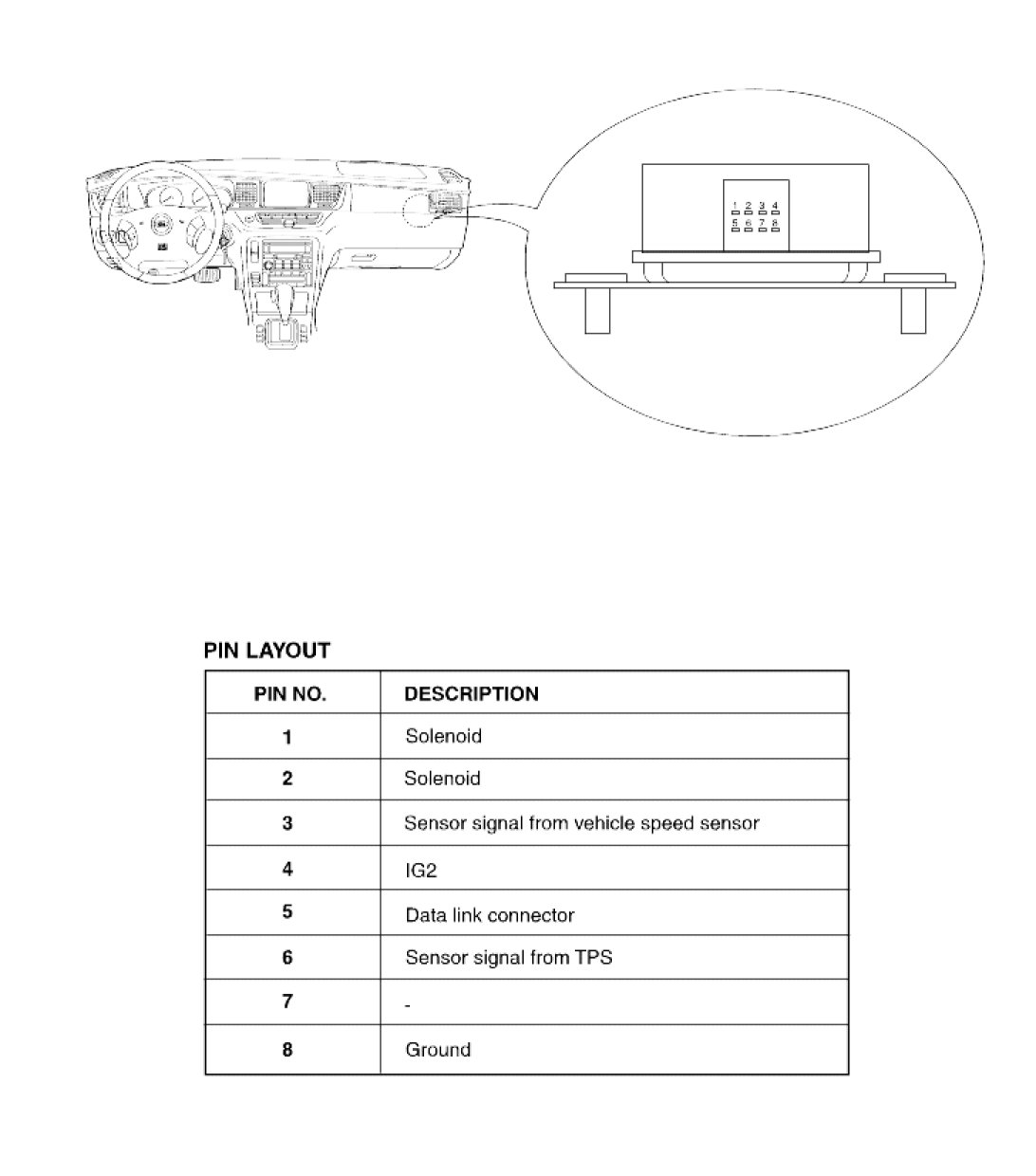

Electronic power steering control module

The EPSCM is installed right of the passenger airbag module. .
