Repair Procedures

REMOVAL

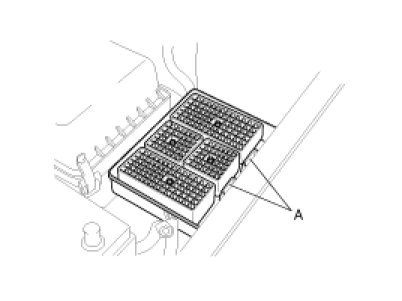

1. Remove the relay box cover.

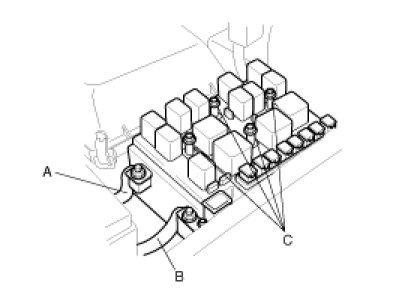

2. Remove the positive (+) battery terminal (A) and alternate L terminal (B).
3. Loosen the relay connectors mounting bolts (C).

4. Remove the relay box after removing two connectors (A).

5. Installation is the reverse of removal.
