Crash Pad










REPLACEMENT

HEATER CONTROL UNIT REPLACEMENT

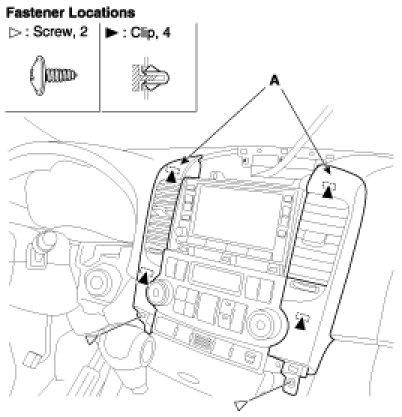

1. Remove the center facia panel.

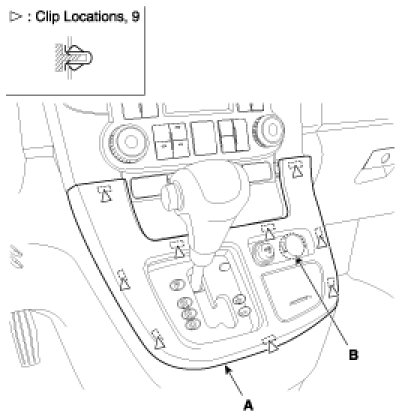

2. Remove the console upper cover (A).

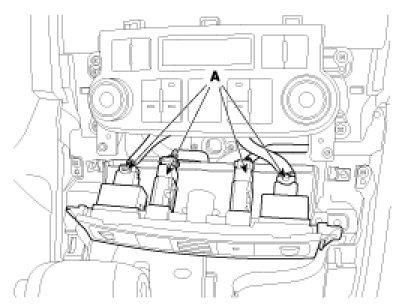

3. Disconnect the connector (B).




4. Loosen the air vent mounting screw, then remove the air vent (A).

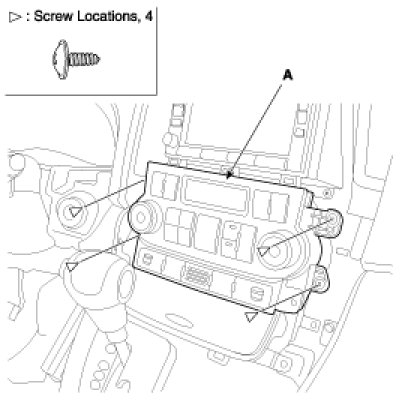

5. After loosening the heater control unit mounting screws, then remove the heater control unit (A).




6. Installation is the reverse of removal.

NOTE:

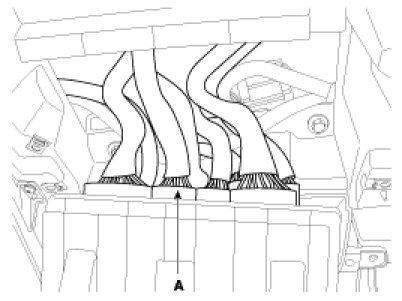

- Make sure the connector(A) is plugged in properly.
