Control Panel: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center air vent. Refer to INTERIOR .
  3. Remove the heater & A/C controller (A) after loosening 4 screws.

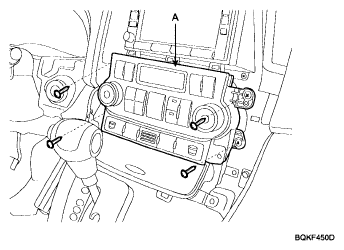

    Fig 1: Identifying Heater & A/C Controller And Screws
    G04885386Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Identifying Heater & A/C Controller Harness
    G04885387Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the heater & A/C controller (A).
    Fig 3: Identifying Heater & A/C Controller
    G04885388Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
