Intake Manifold

Intake Manifold

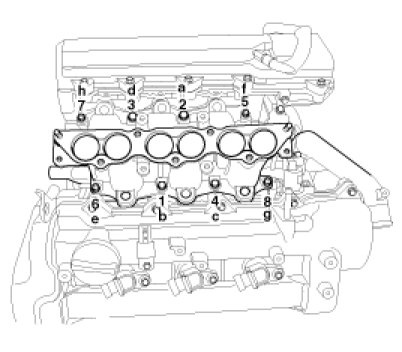

Tightening torque
Step 1(a~h) 3.9 - 5.9 Nm(0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
Step 2(1 - 8) 18.6 - 23.5 Nm(1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
