Fog/Driving Lamp: Service and Repair





REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the wheel guide.

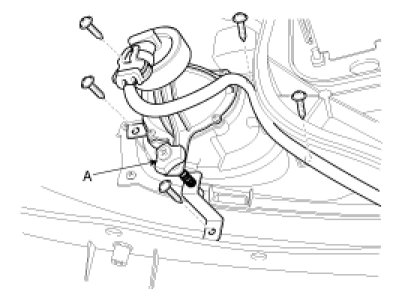

3. Remove the front fog lamp (A) after loosening the screws and disconnecting the fog lamp connector.




4. Installation is the reverse of removal.
