Overhead Console Lamp Replacement

OVERHEAD CONSOLE LAMP REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

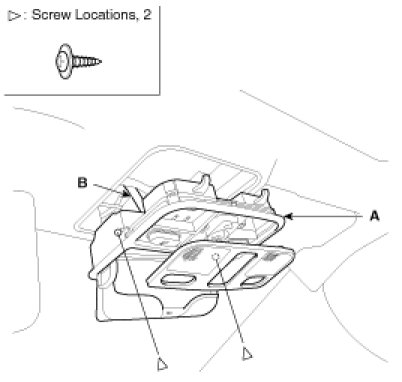

1. Remove the overhead console.
A. Remove the screw.
B. Pull out the roof console (A).
C. Disconnect the connector (B).




2. Installation is the reverse of removal.
