Power Window Switch





CIRCUIT DIAGRAM

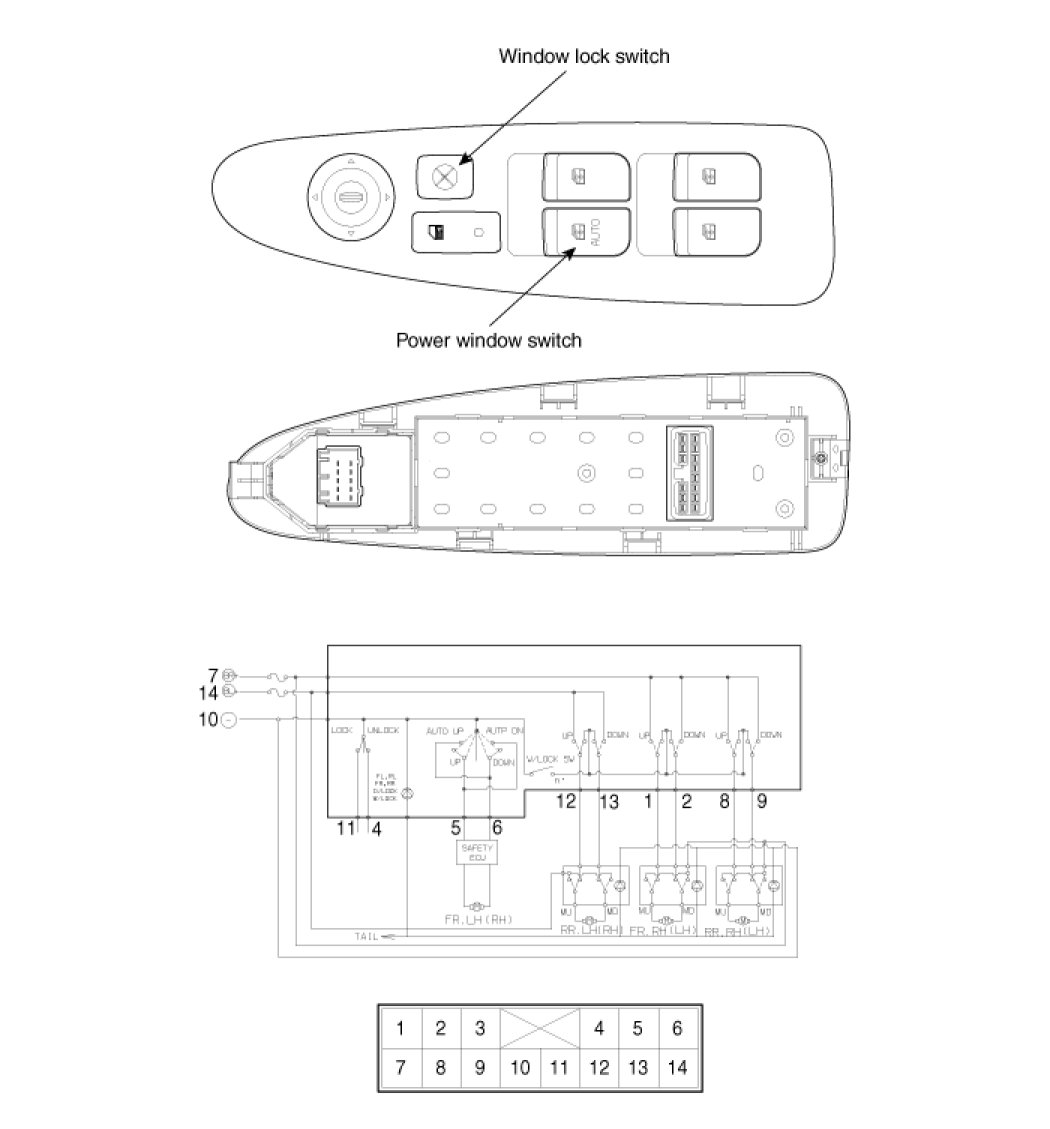

DRIVER POWER WINDOW SWITCH

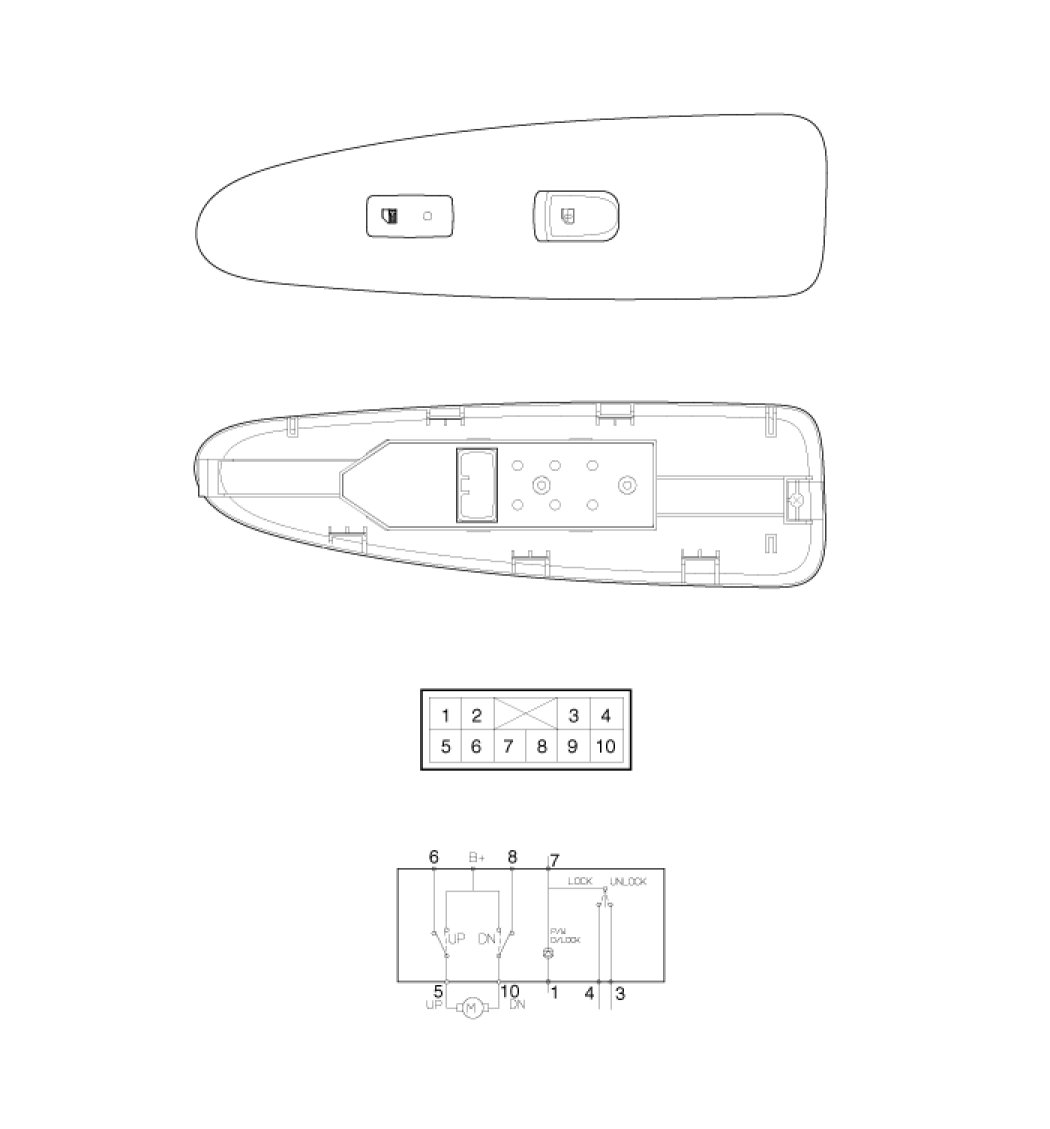

ASSIST POWER WINDOW SWITCH

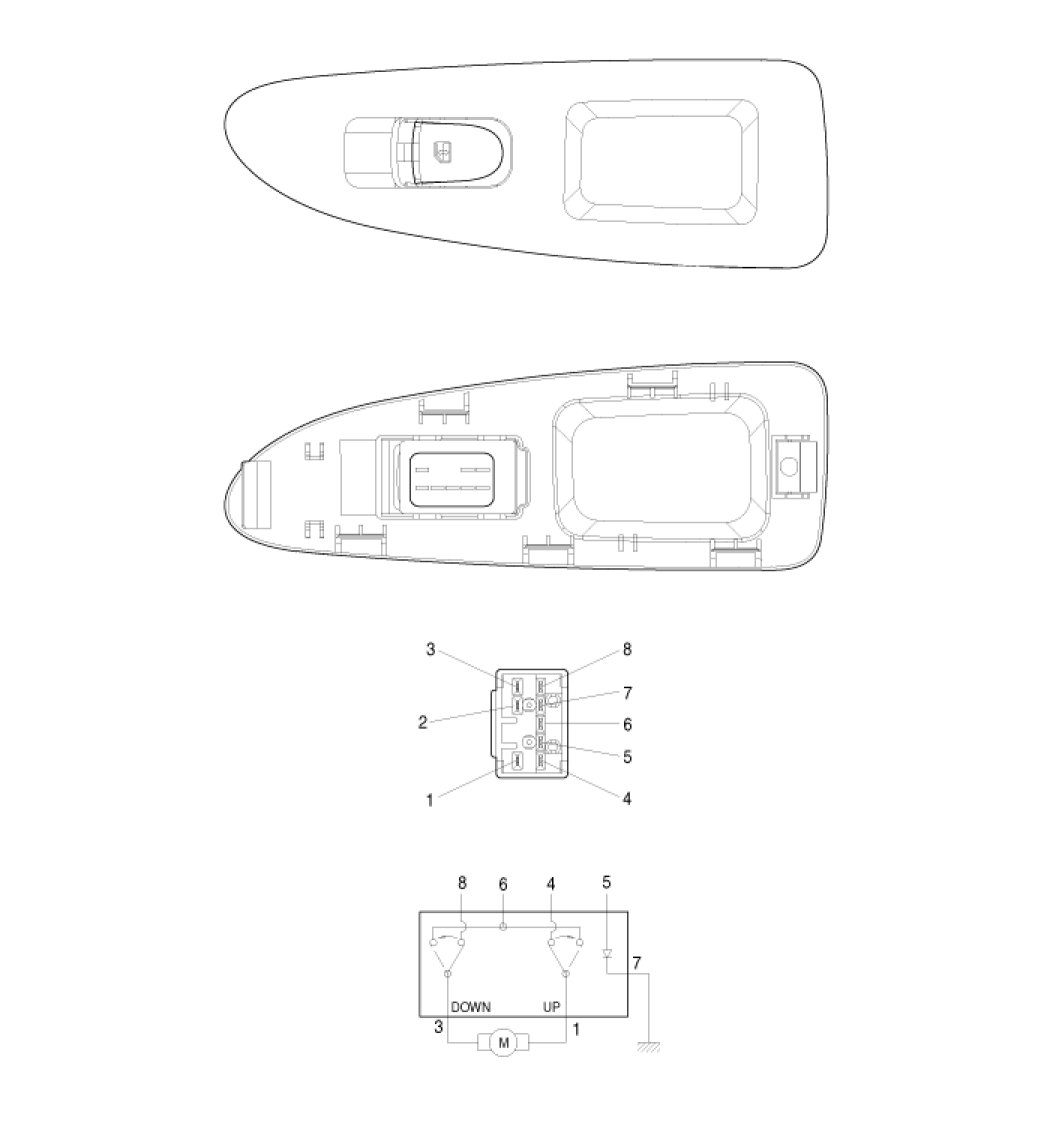

REAR POWER WINDOW SWITCH
