Brake System

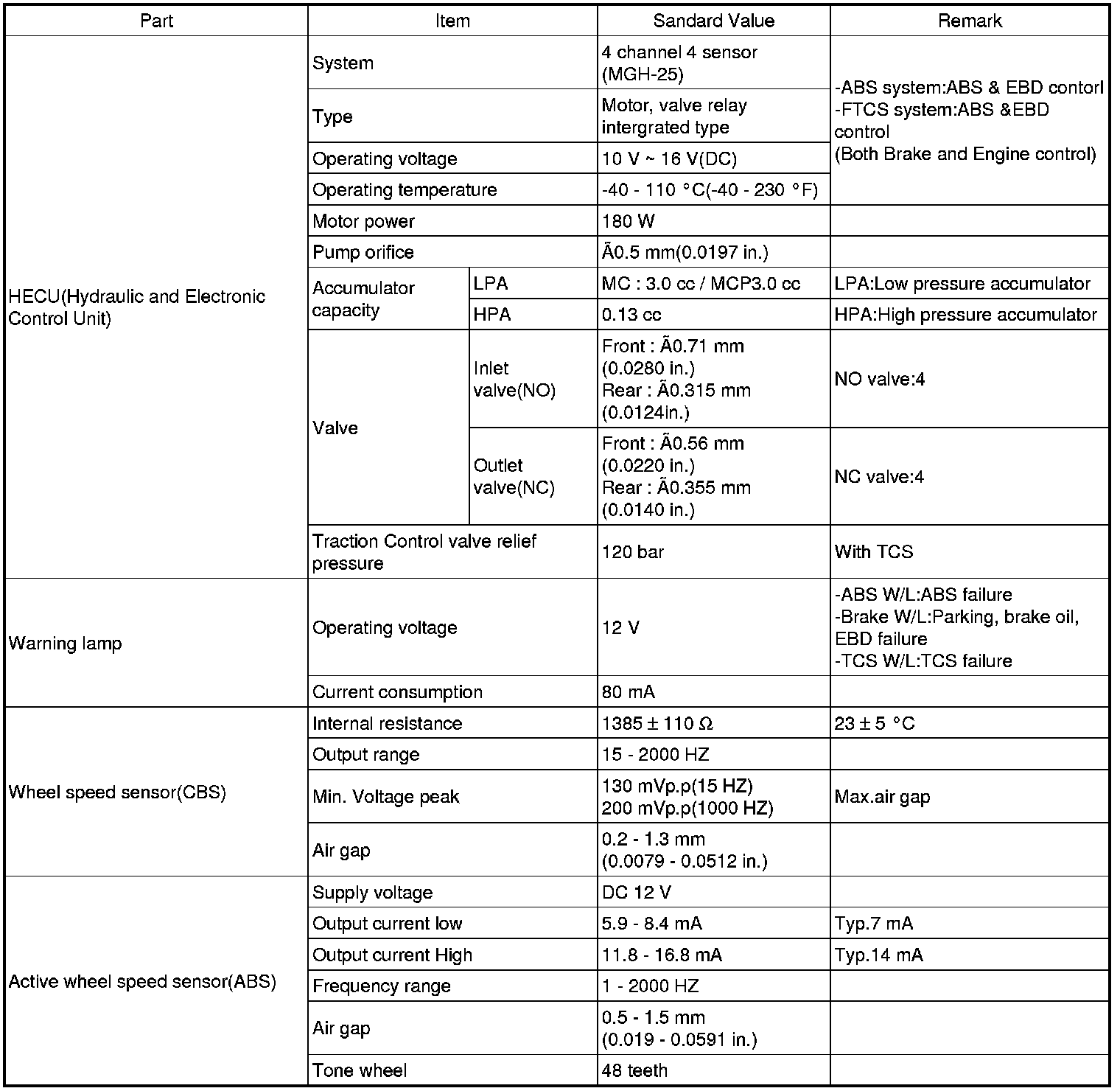

SPECIFICATION (ABS & TCS)

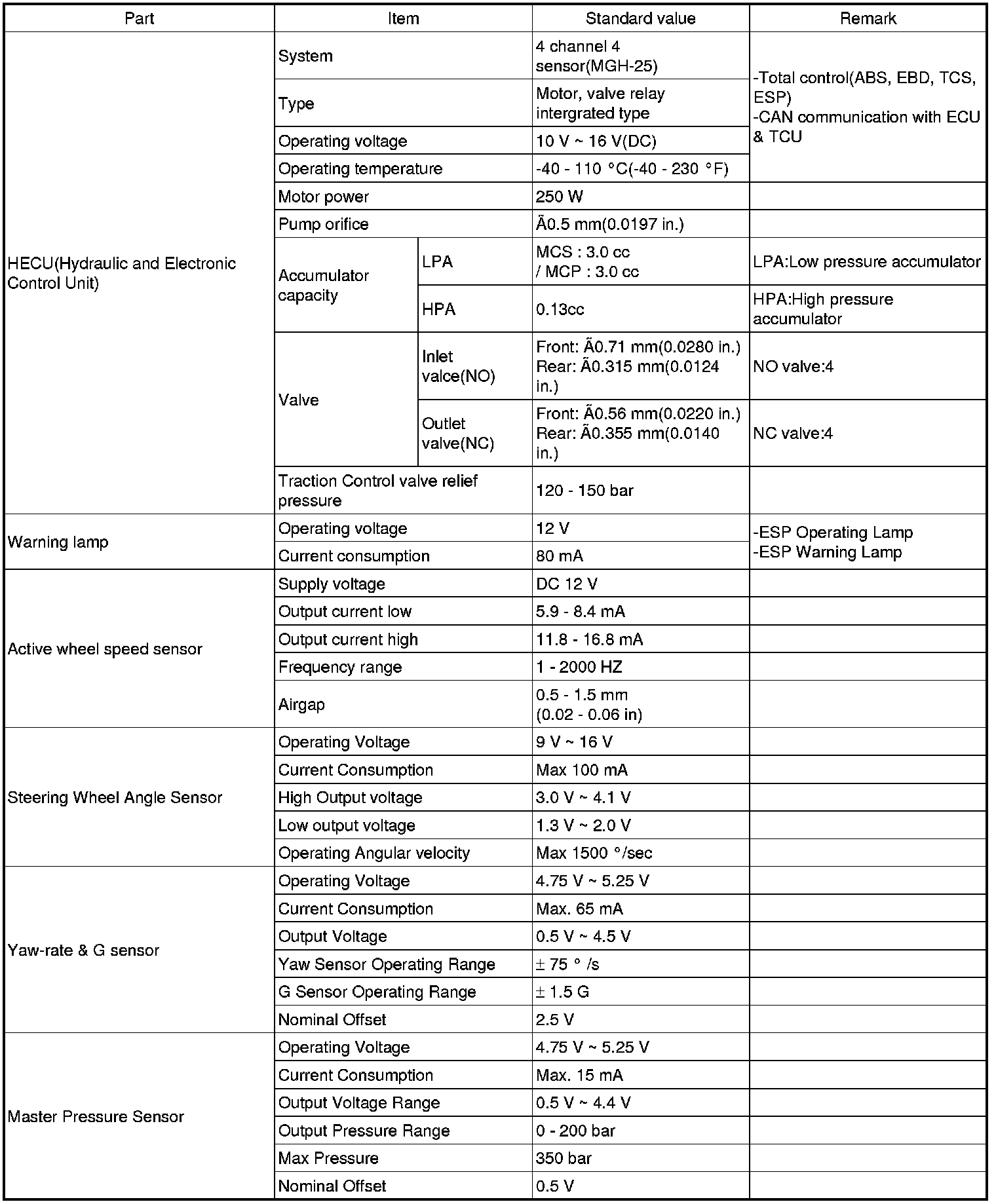

SPECIFICATION (ESP)

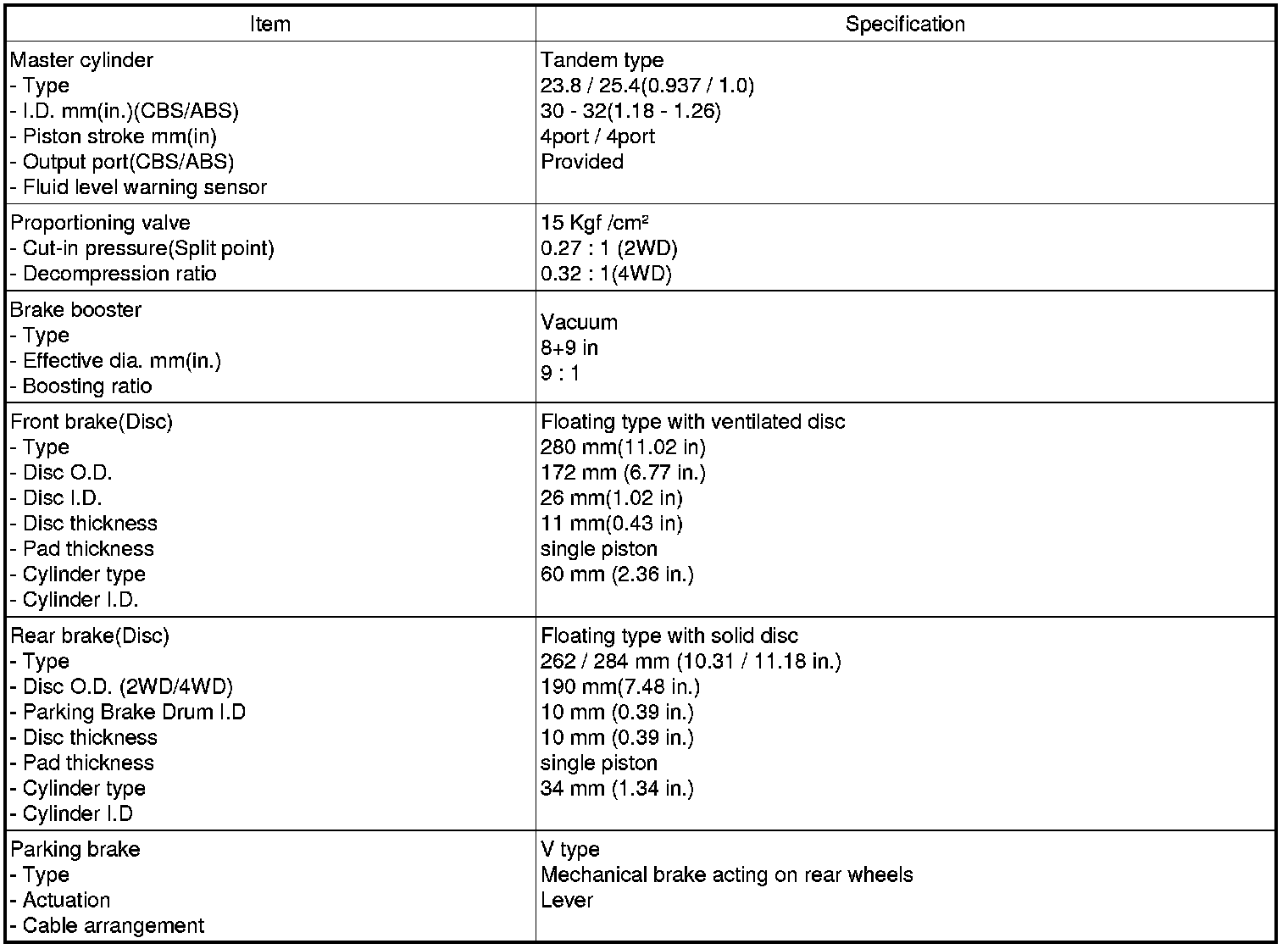

SPECIFICATIONS





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
CBS : Conventional Brake System

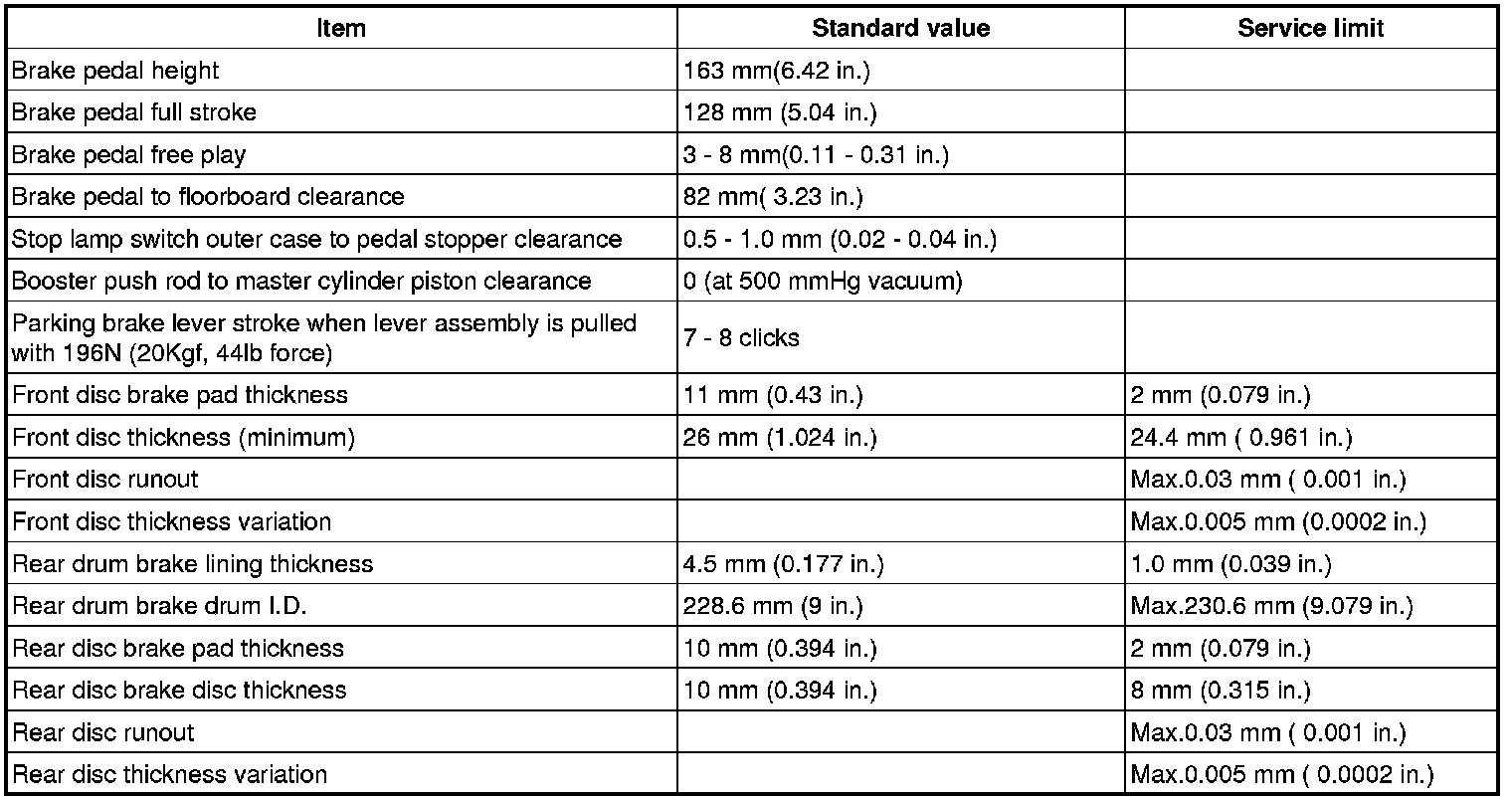

SERVICE STANDARD





TIGHTENING TORQUE






TIGHTENING TORQUE (ABS & TCS)





TIGHTENING TORQUE (ESP)
