Oil Pump, Engine

Oil Pump

Tightening torque 19.6 - 26.5 N-m (2.0 - 2.7 kg-m, 14.5 - 19.5 lb-ft)

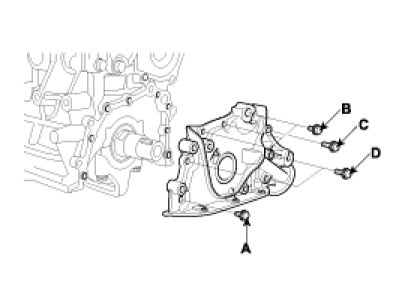

Bolt length
(A) : 25 mm (0.984 in), (B) : 30 mm (1.181 in)
(C) : 38 mm (1.496 in), (D) : 45 mm (1.772 in)
