Bearing Cap

Bearing Cap

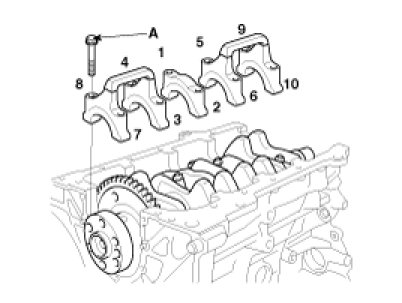

Install and uniformly tighten the 10 bearing cap bolts(A), in several passes, in the sequence shown.

Tightening torque 27.5 - 31.4 N-m(2.8 - 3.2 kg-m, 20.3 - 23.1 lb-ft) + 60°~ 64°
