Pinout Values and Diagnostic Parameters





ENGINE CONTROL MODULE (ECM)

1. HARNESS CONNECTOR

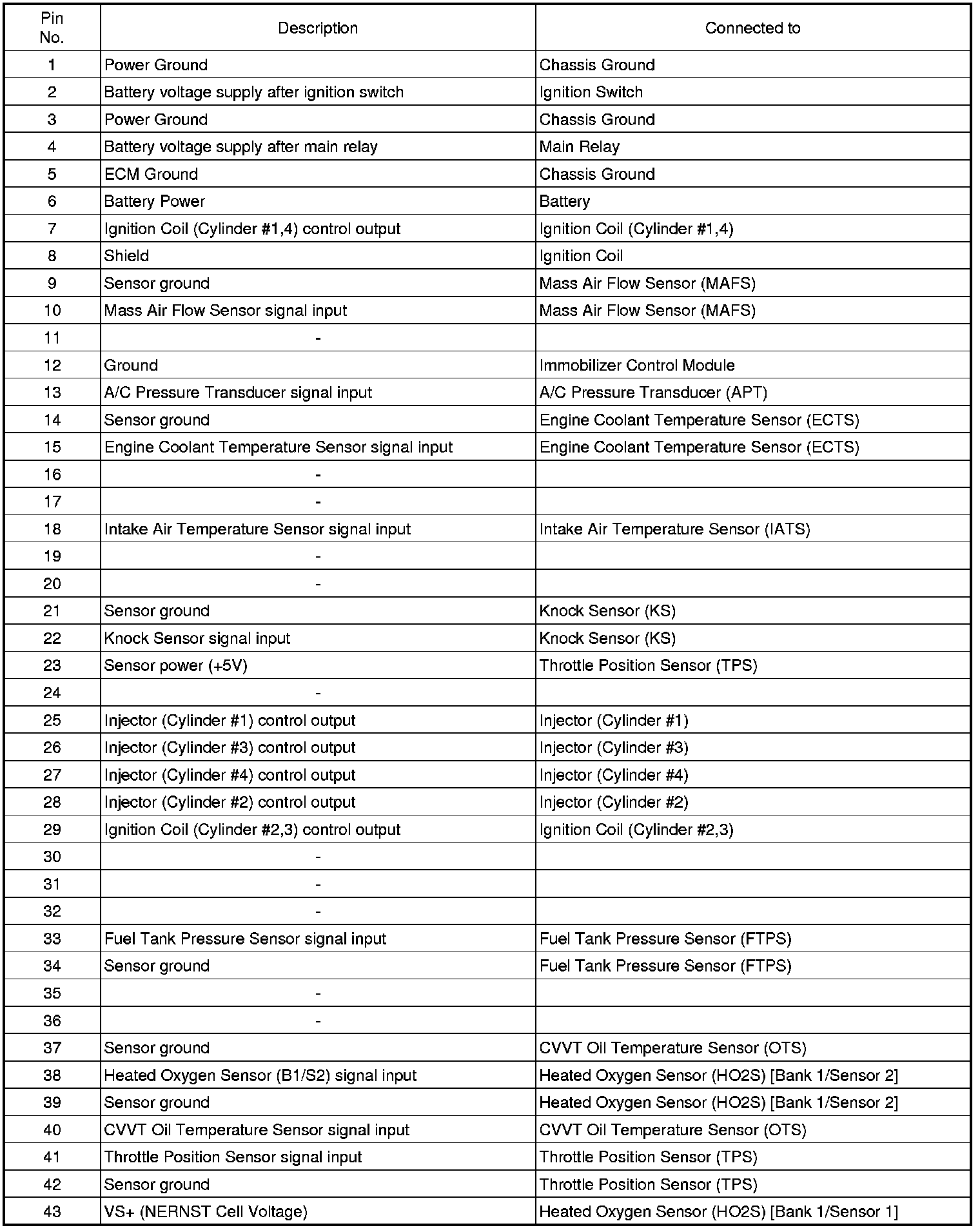

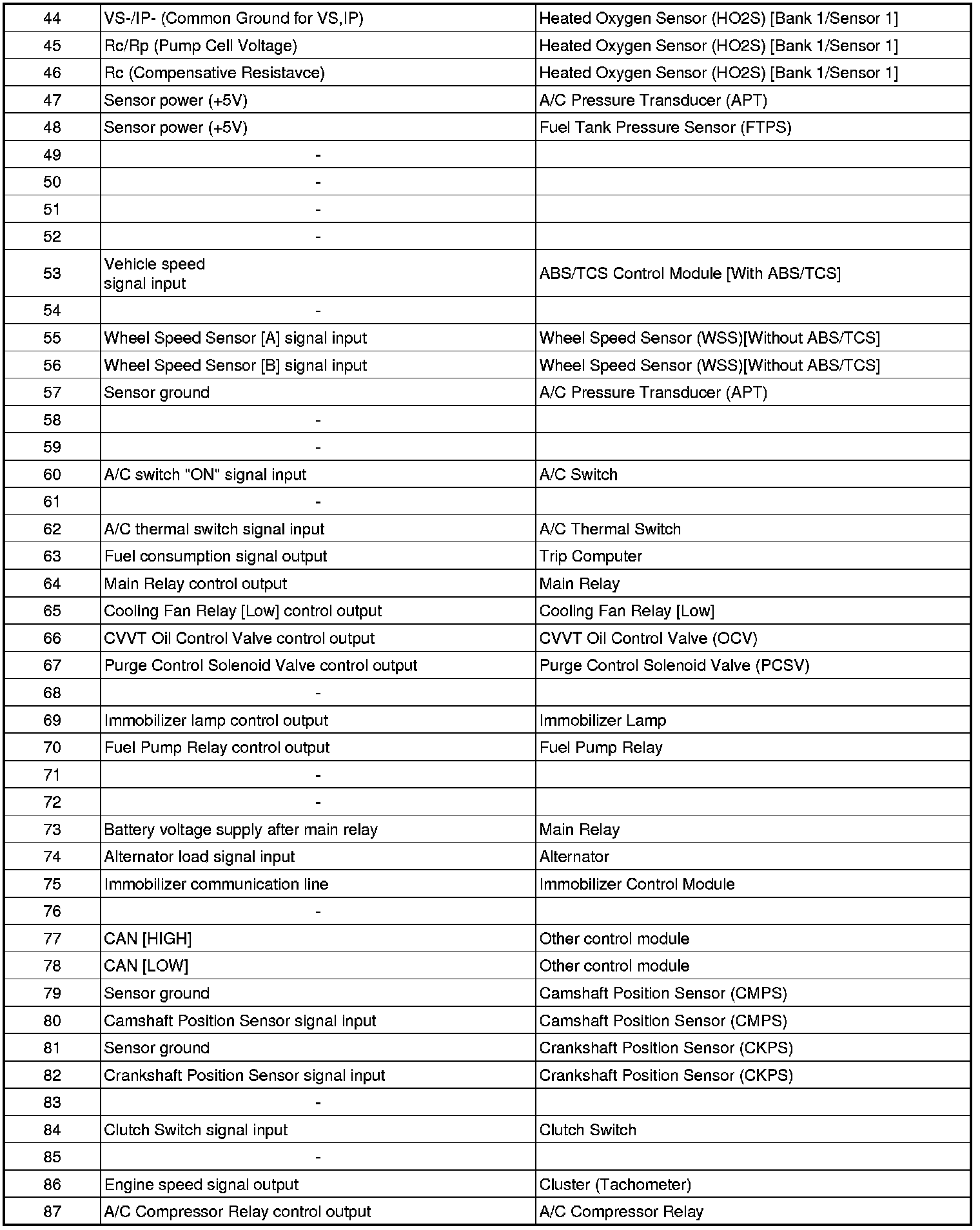

2. TERMINAL FUNCTION

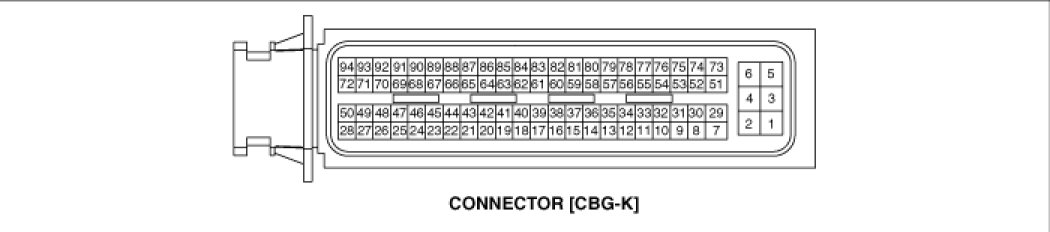

CONNECTOR [CBG-K]

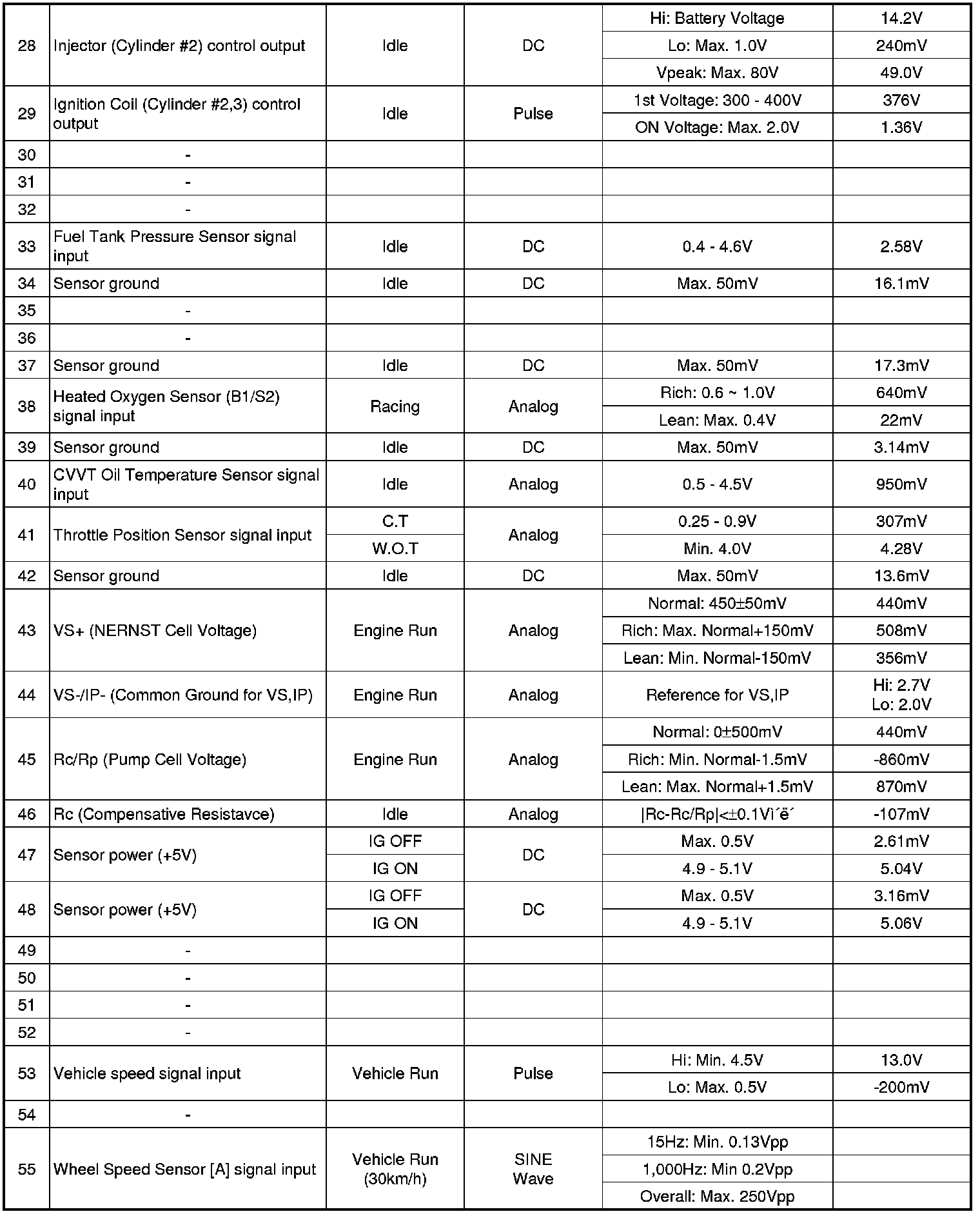

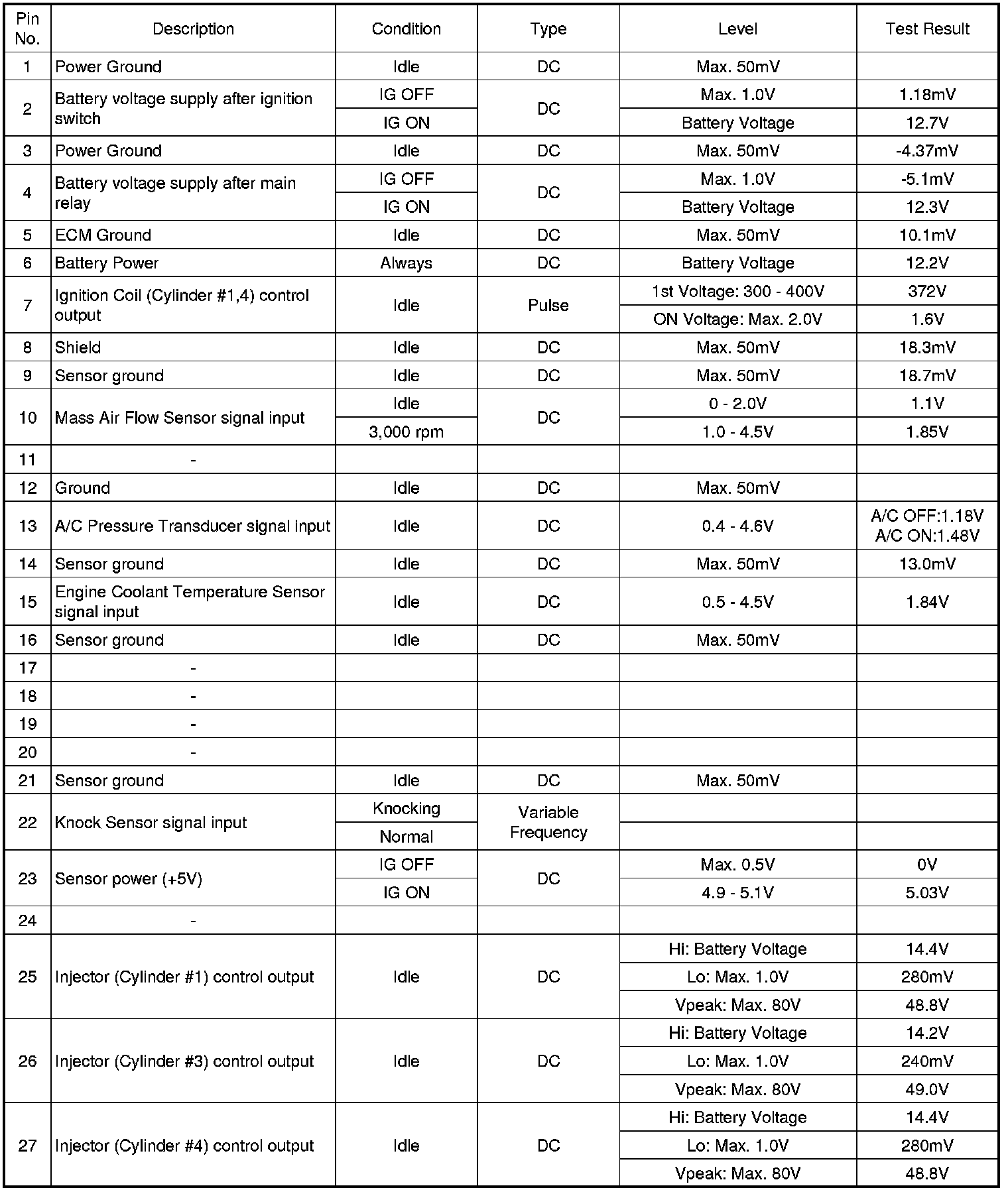

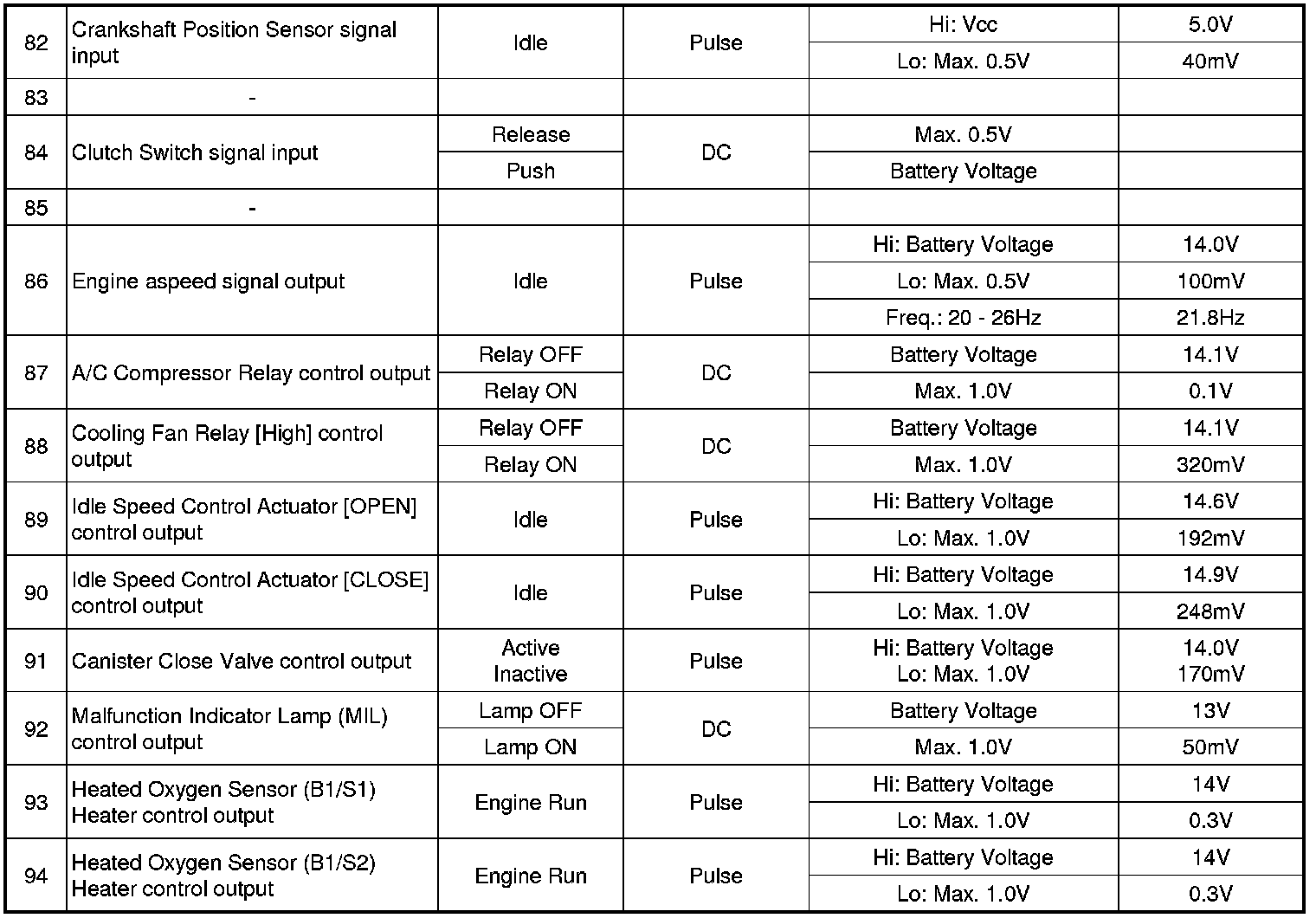

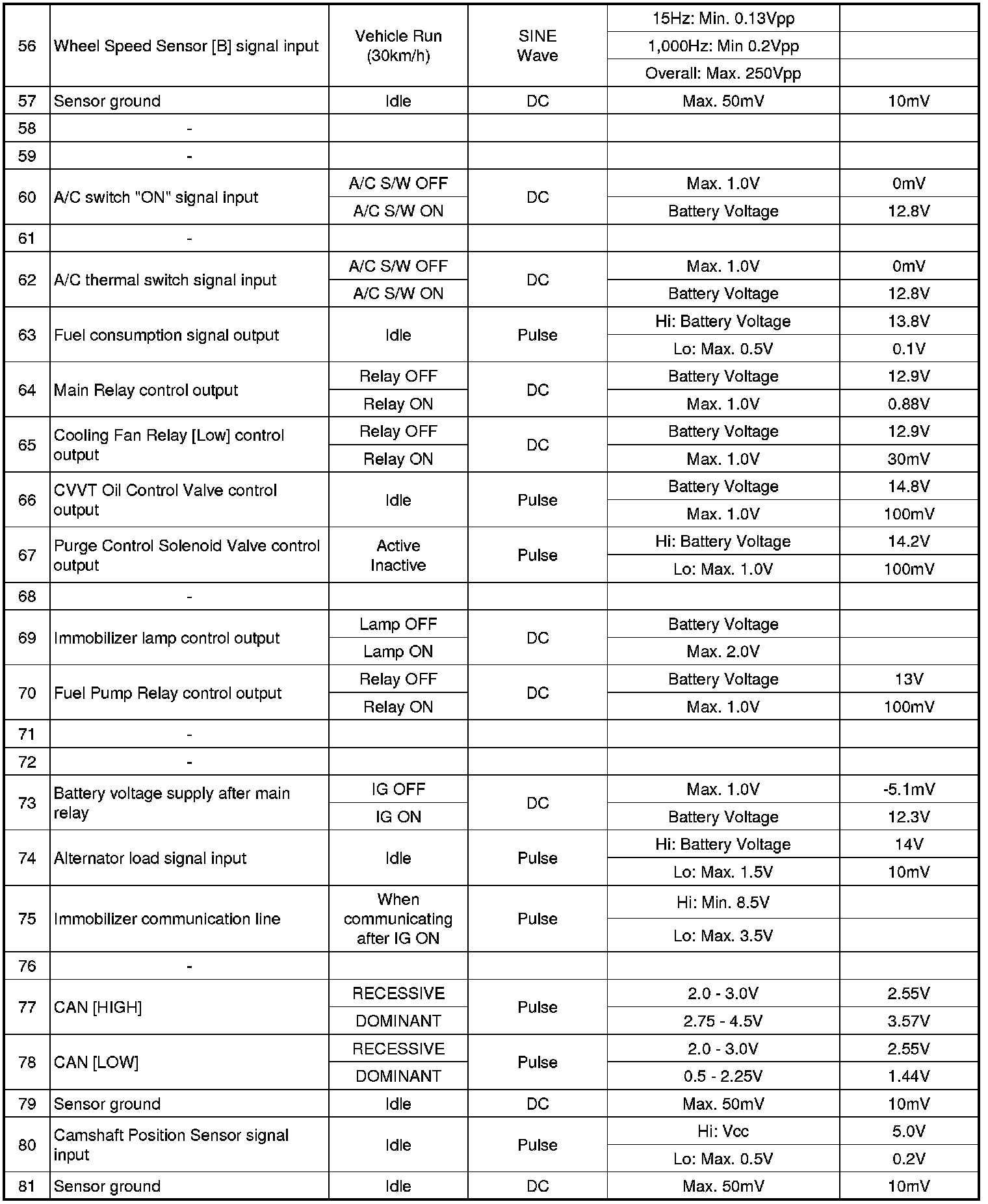

3. TERMINAL INPUT/OUTPUT SIGNAL
CONNECTOR [CBG-K]
