Repair Procedures

REPLACEMENT

1. Disconnect the negative(-) battery terminal.

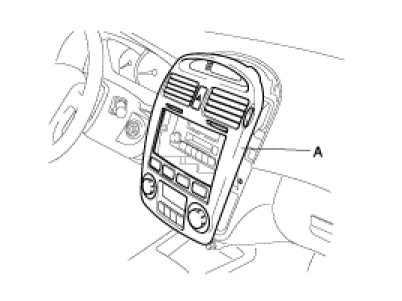

2. Remove the center facia panel(A).

3. Disconnect the connectors from the center facia.

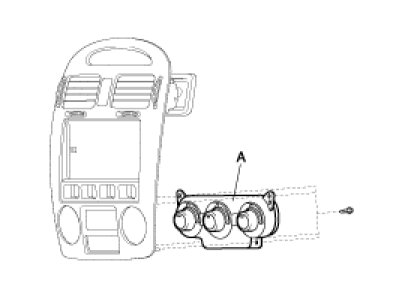

4. Remove the blower And A/C control unit(A).

5. Install in the reverse order of removal.
