Automatic Transmission/Transaxle





Hydraulic Circuit

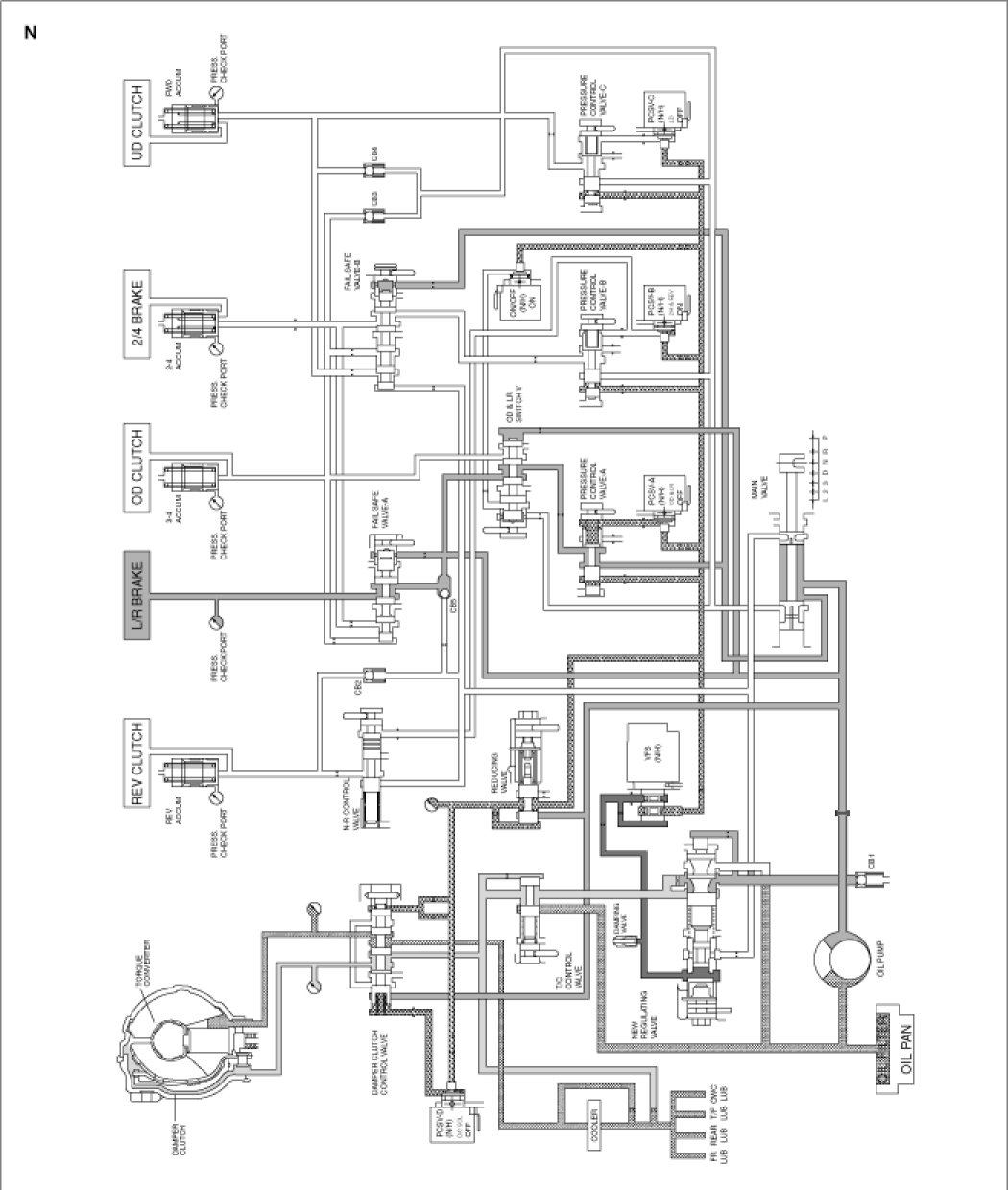

N range, P range

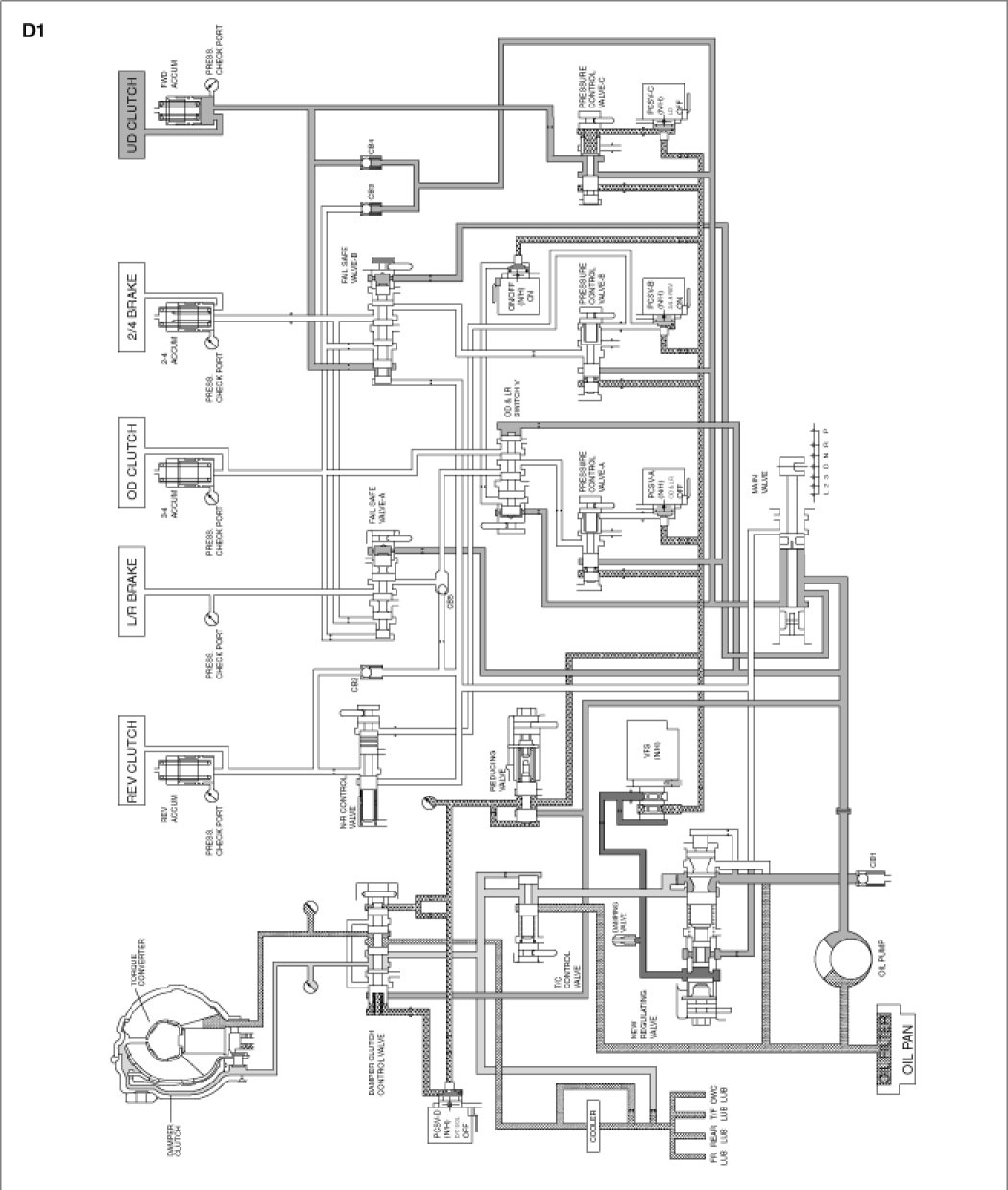

D range(1st)

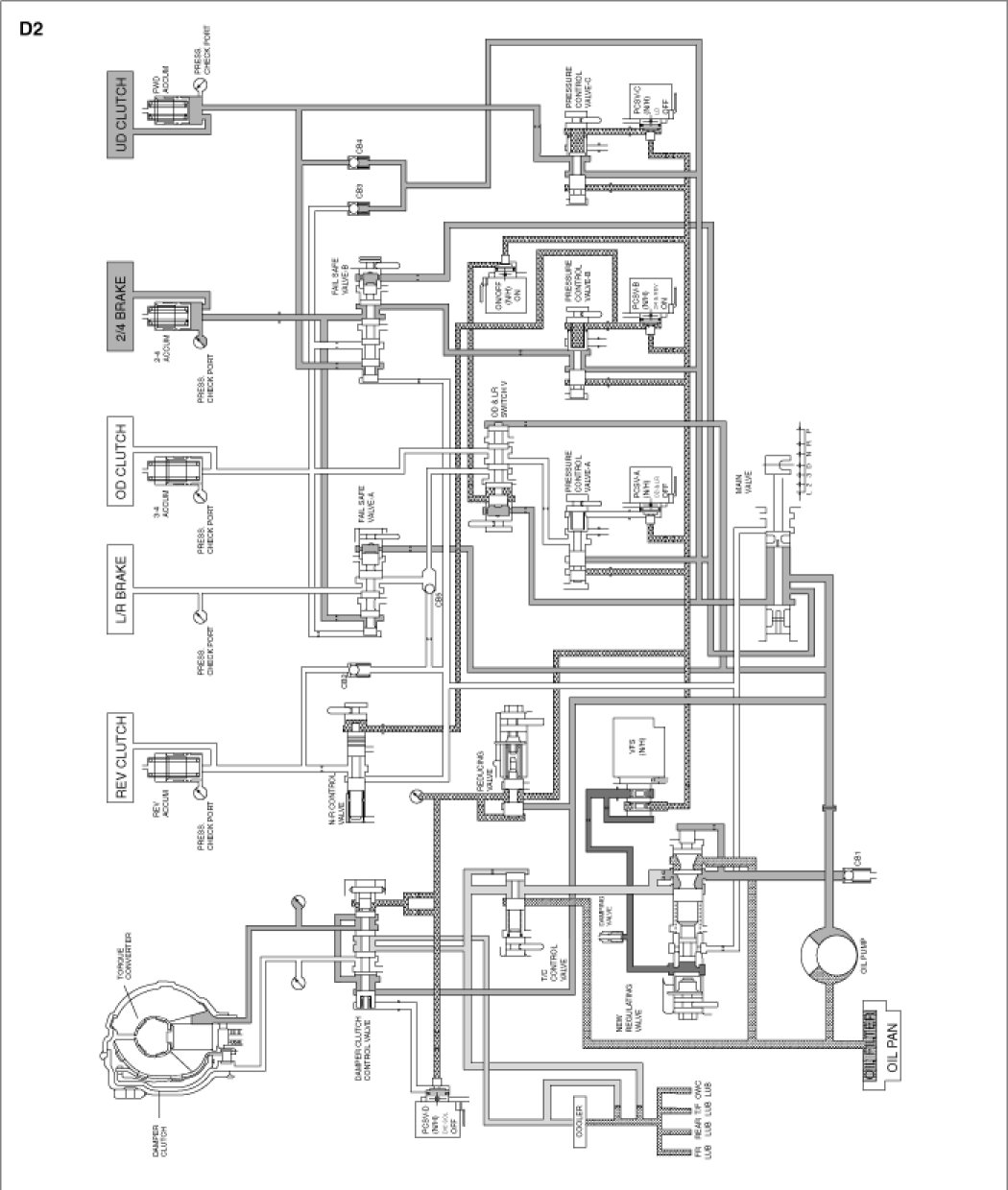

D range(2nd)

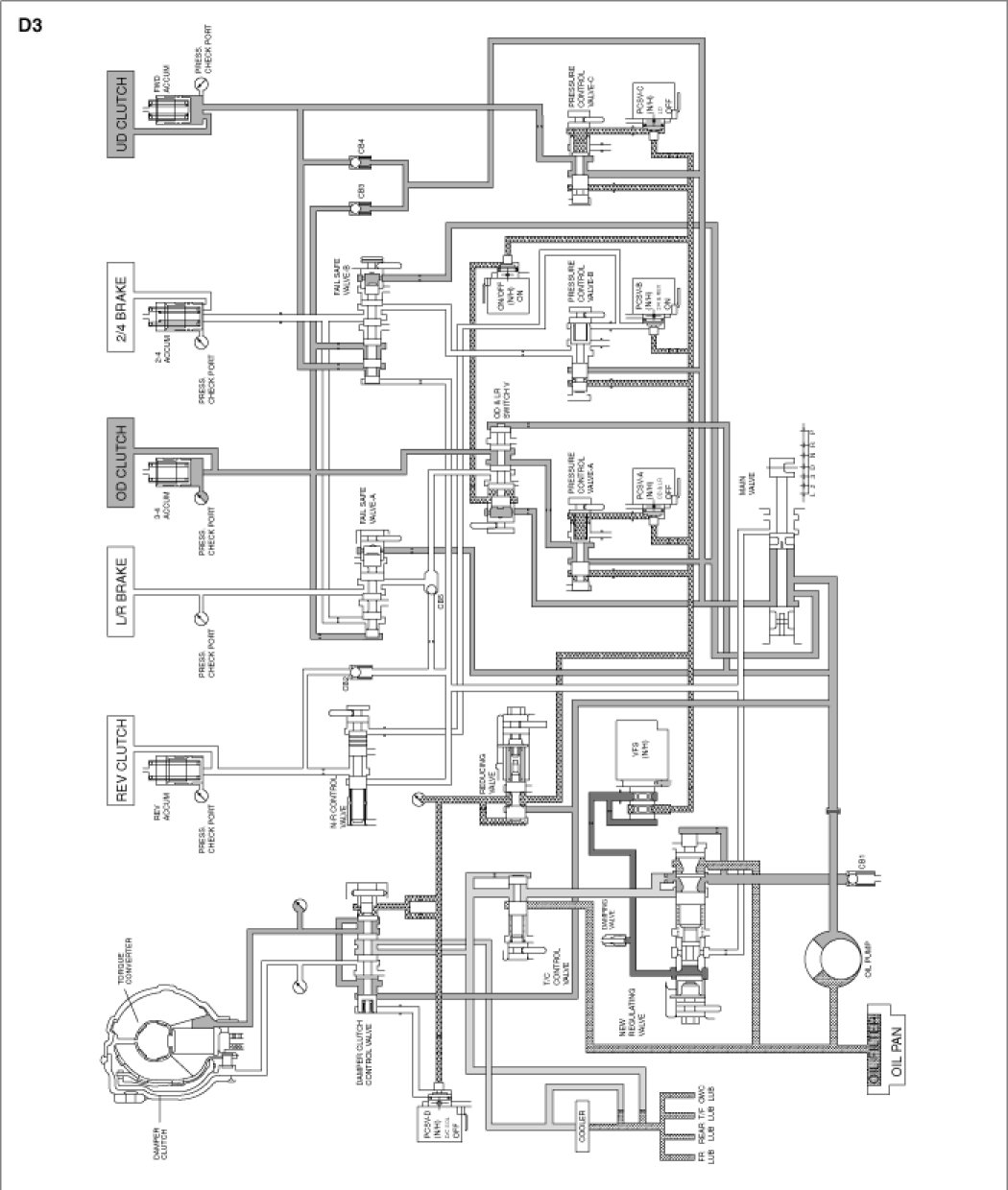

D range(3rd)

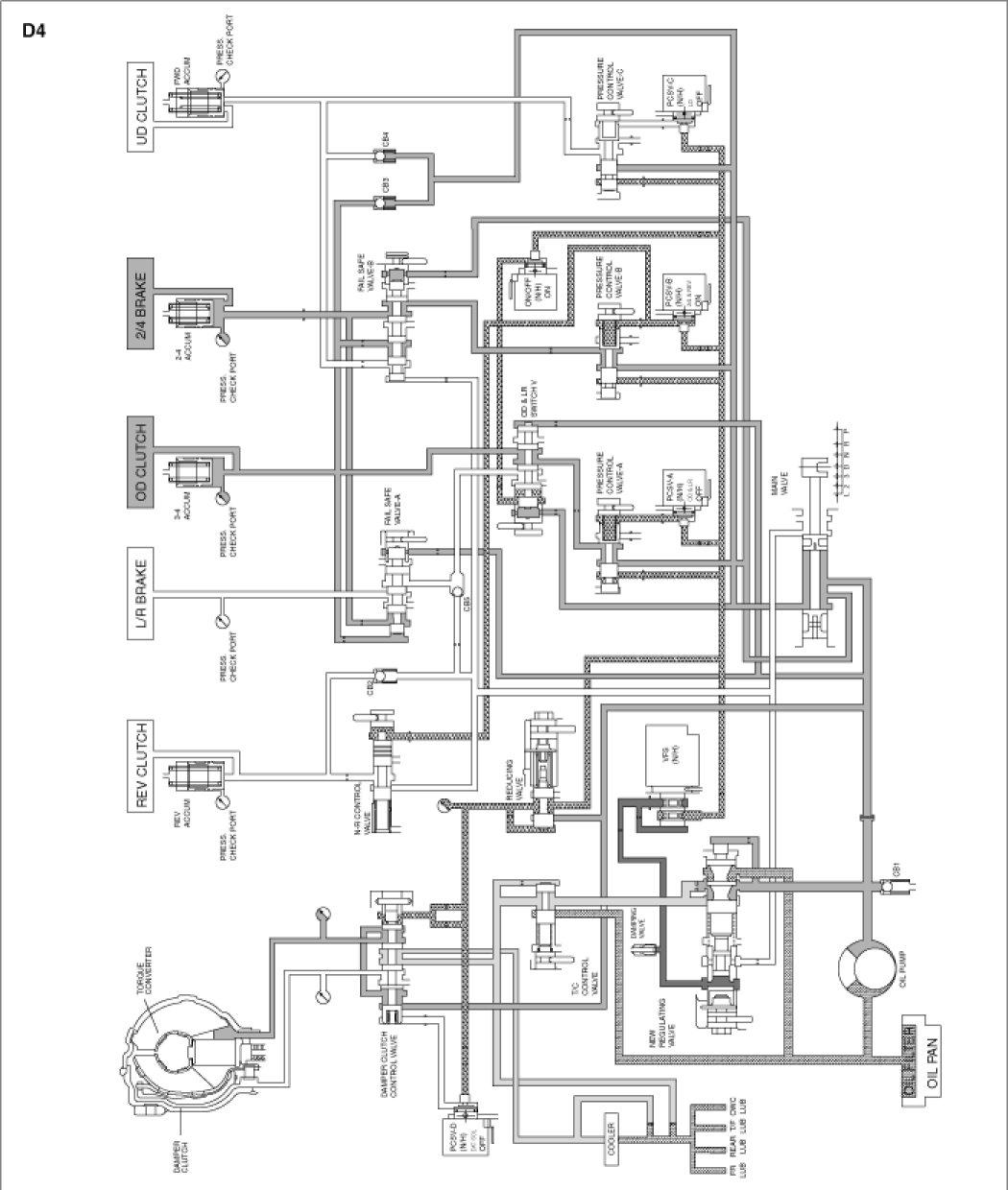

D range(4th)

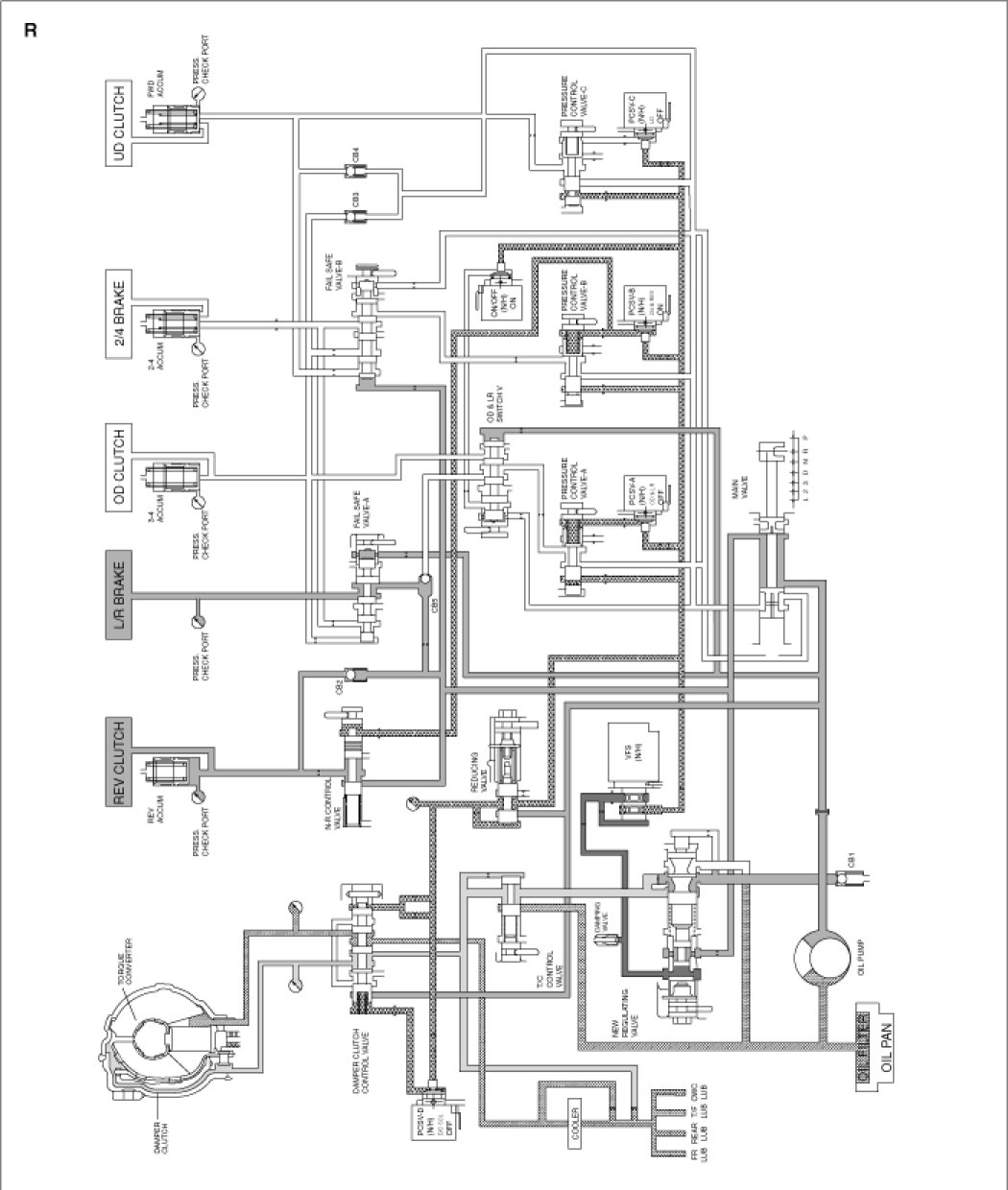

R range

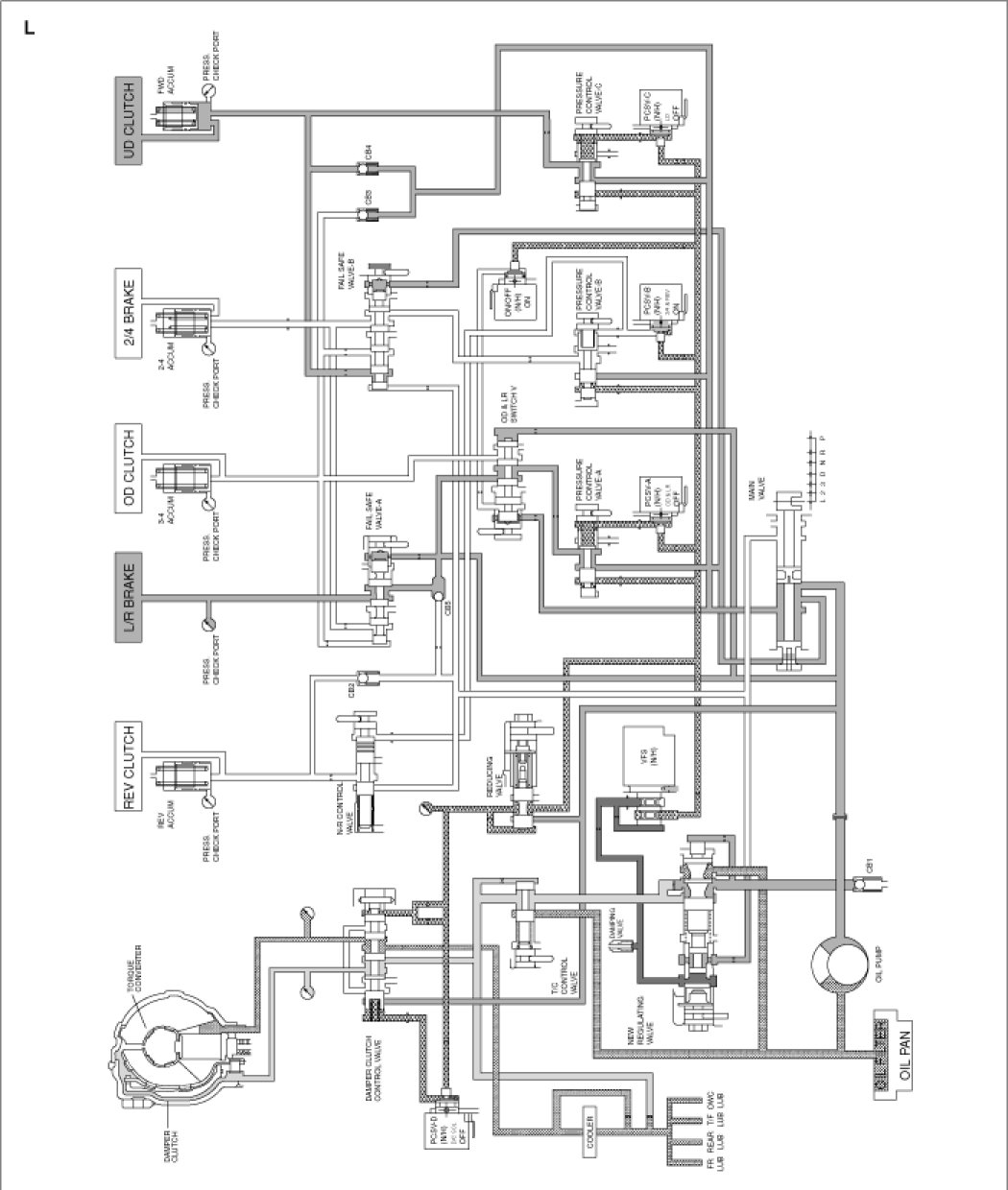

L range
