Engine Control Module

ENGINE CONTROL MODULE (ECM)

Engine Control Module (ECM) - Harness Connector:

ECM HARNESS CONNECTOR

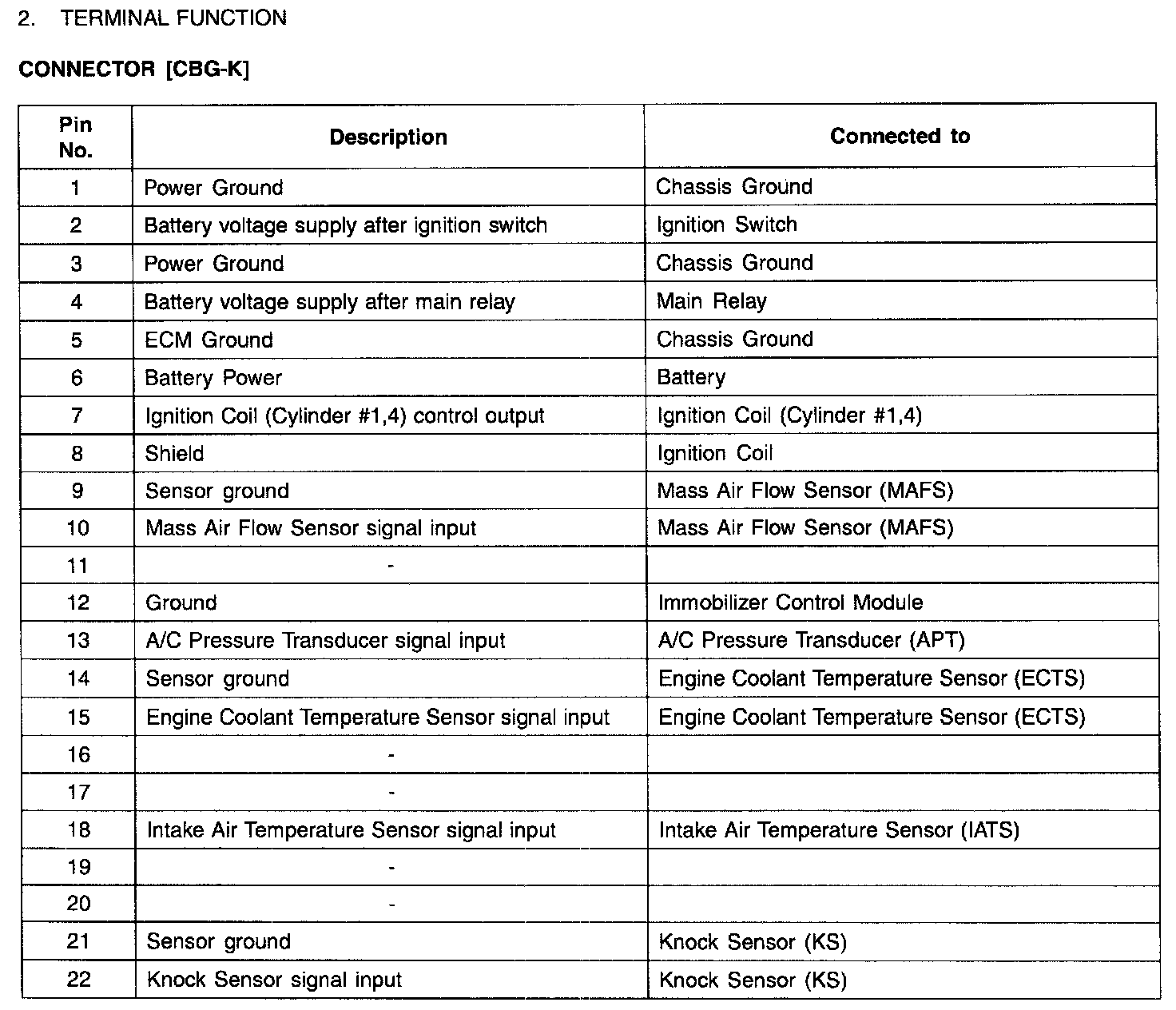

ECM Terminal Function - Connector [CBG-K] (Part 1):

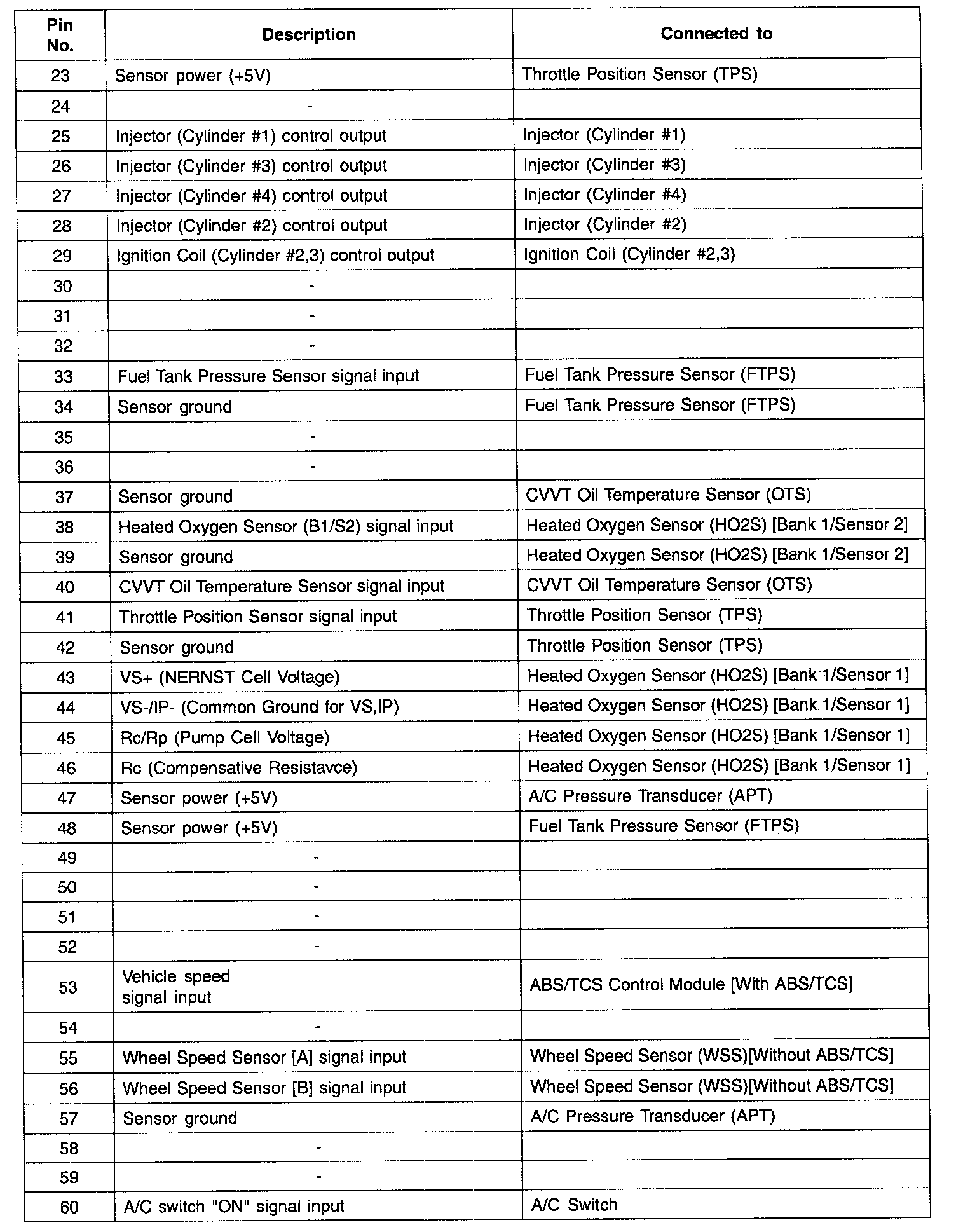

ECM Terminal Function - Connector [CBG-K] (Part 2):

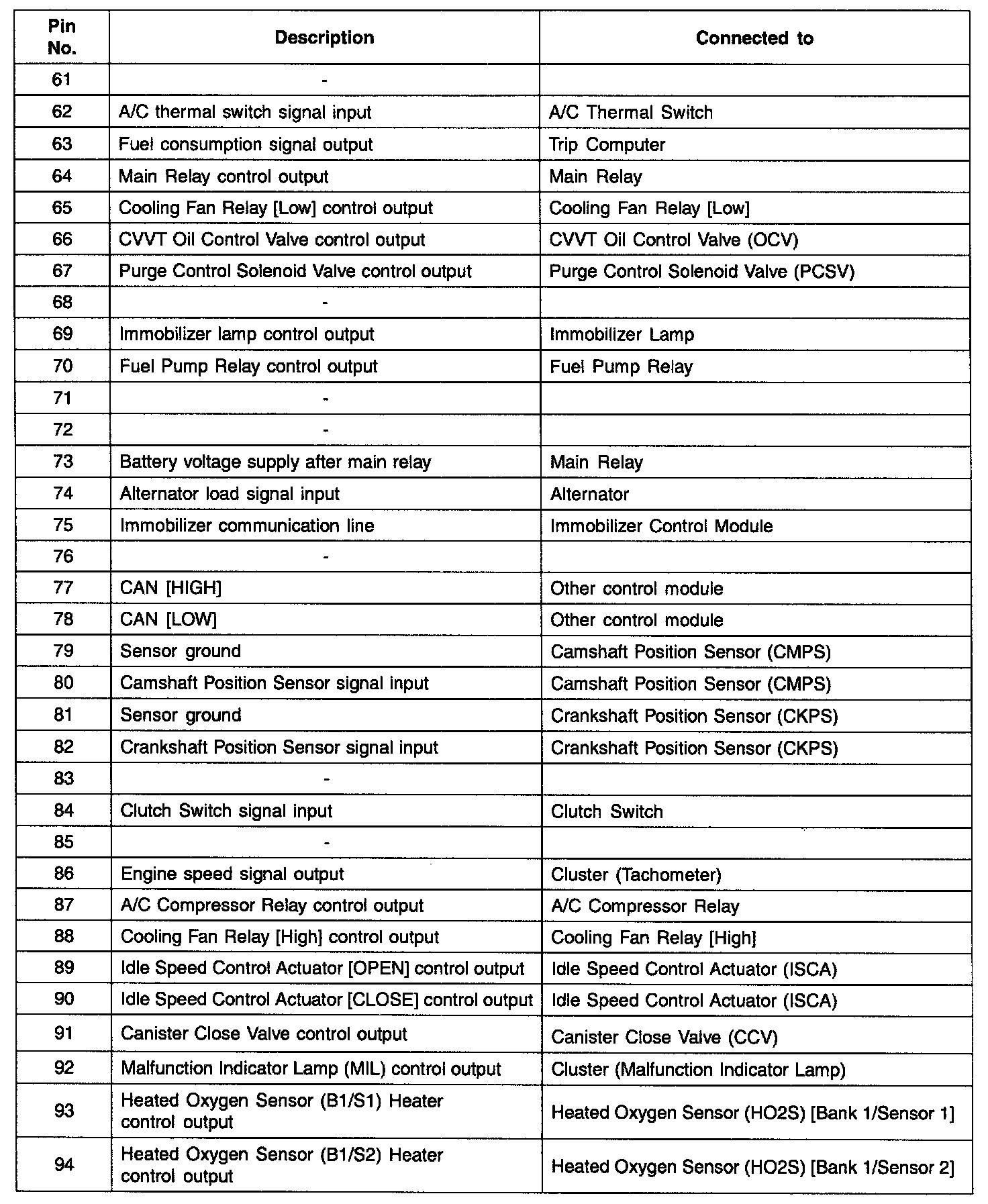

ECM Terminal Function - Connector [CBG-K] (Part 3):

ECM TERMINAL FUNCTION - CONNECTOR [CBG-K]

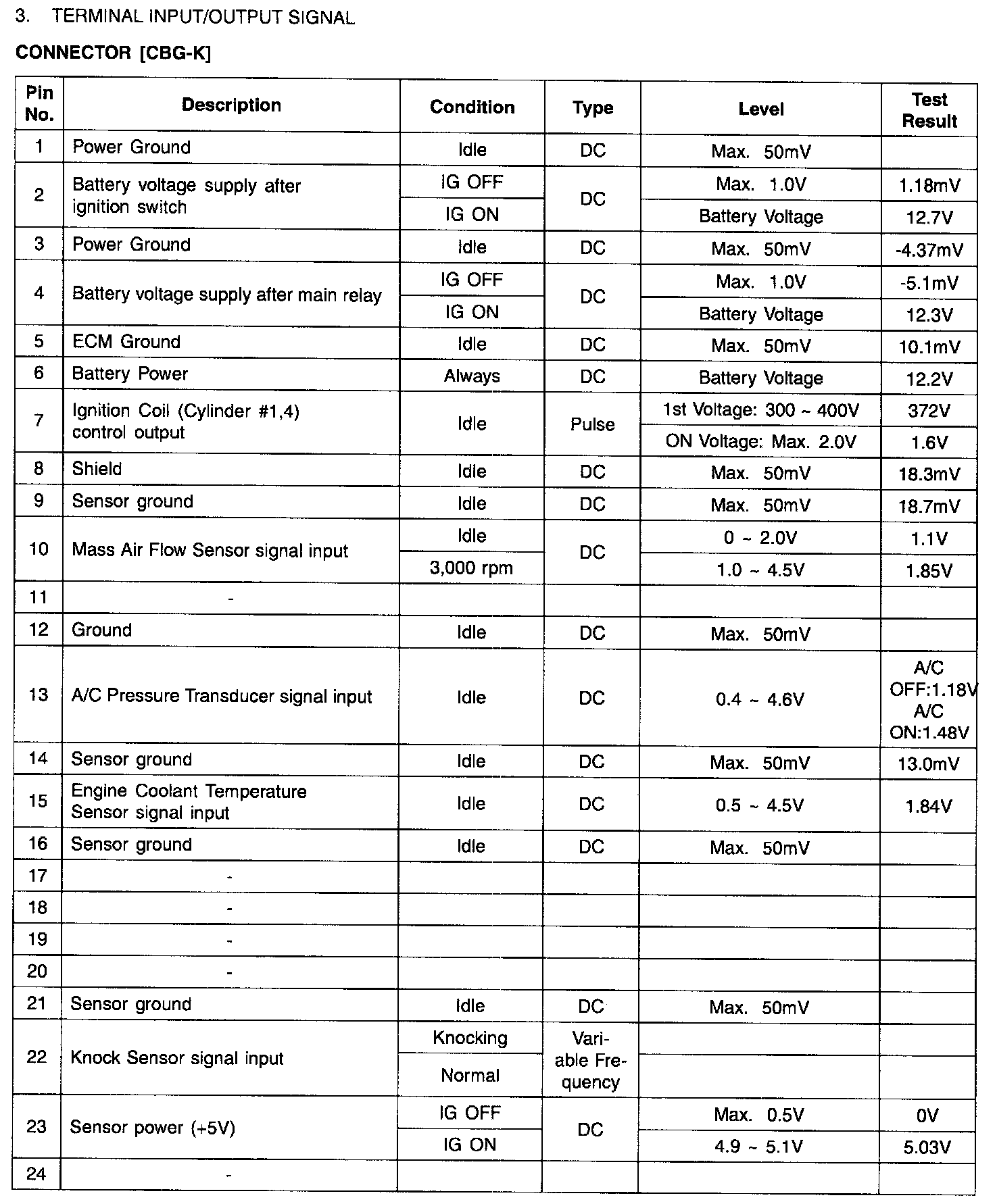

ECM Terminal Input/Output Signal - Connector [CBG-K] (Part 1):

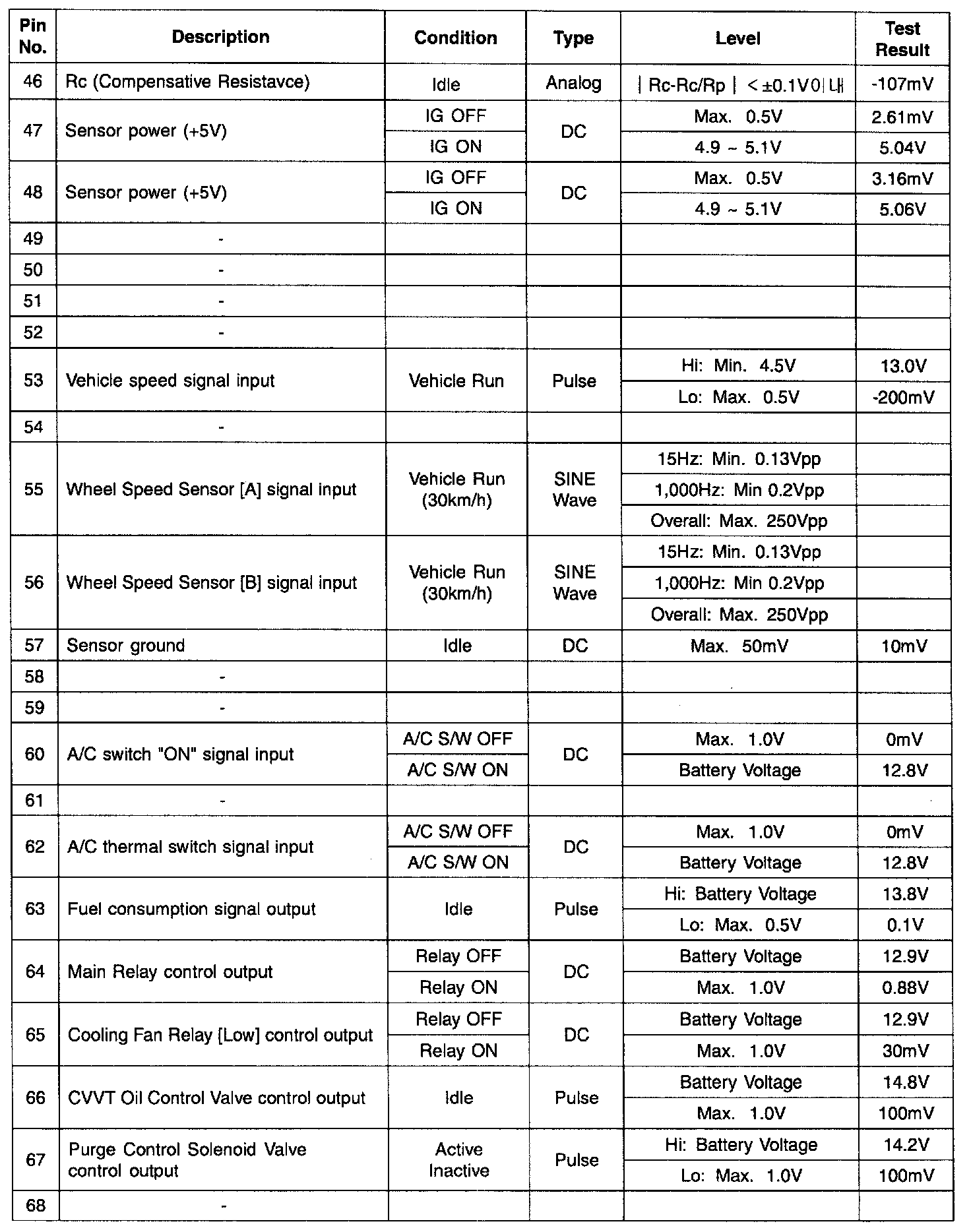

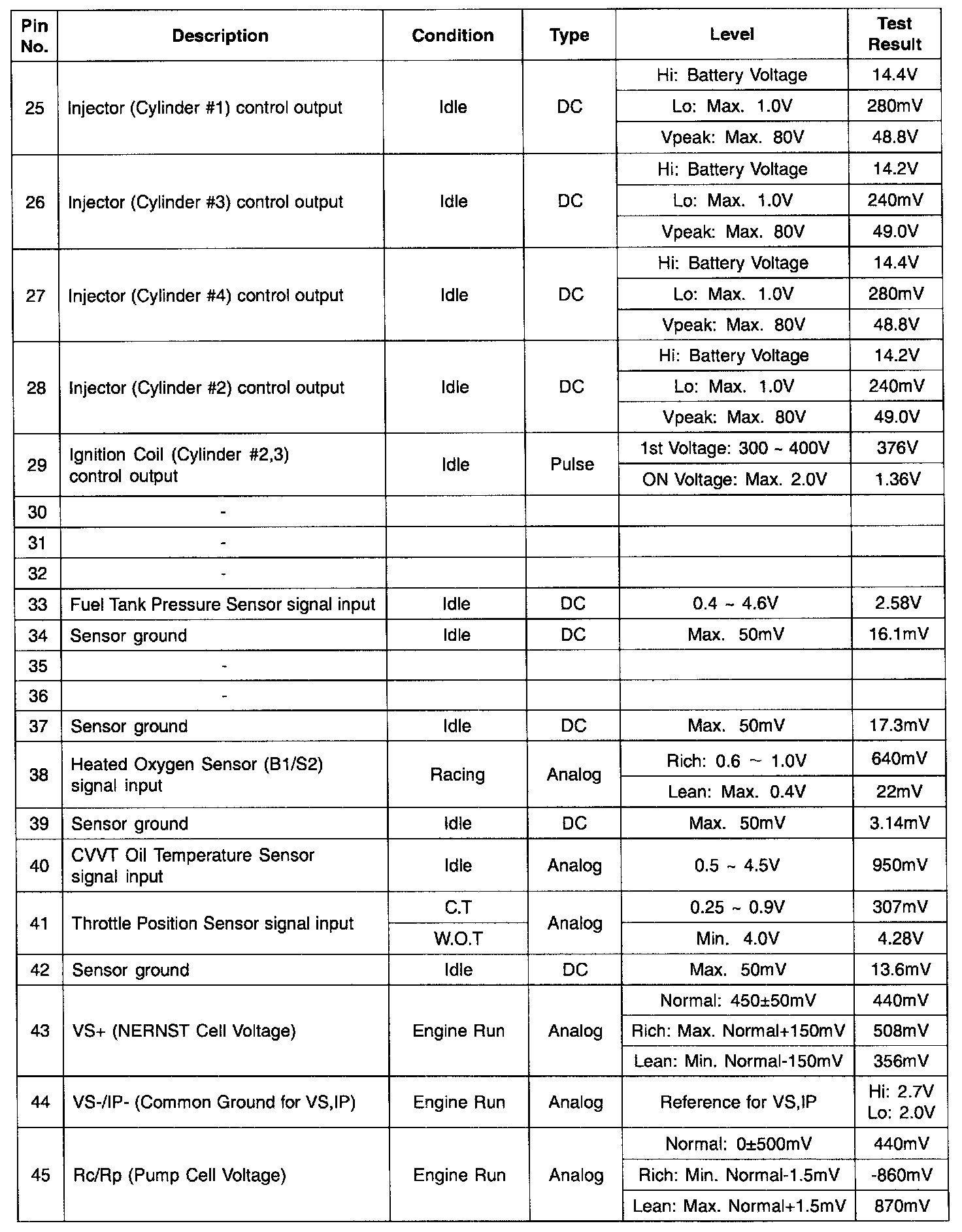

ECM Terminal Input/Output Signal - Connector [CBG-K] (Part 2):

ECM Terminal Input/Output Signal - Connector [CBG-K] (Part 3):

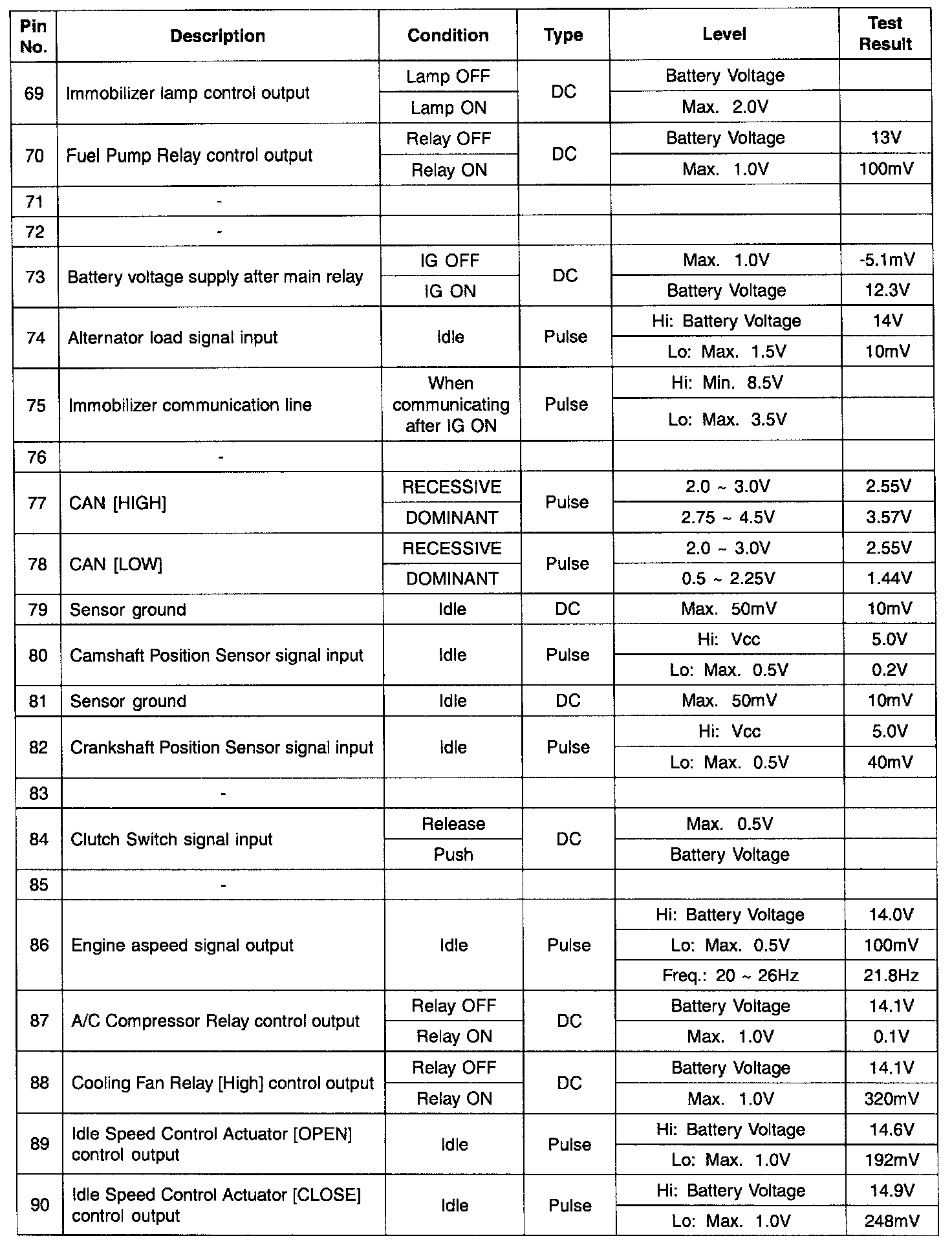

ECM Terminal Input/Output Signal - Connector [CBG-K] (Part 4):

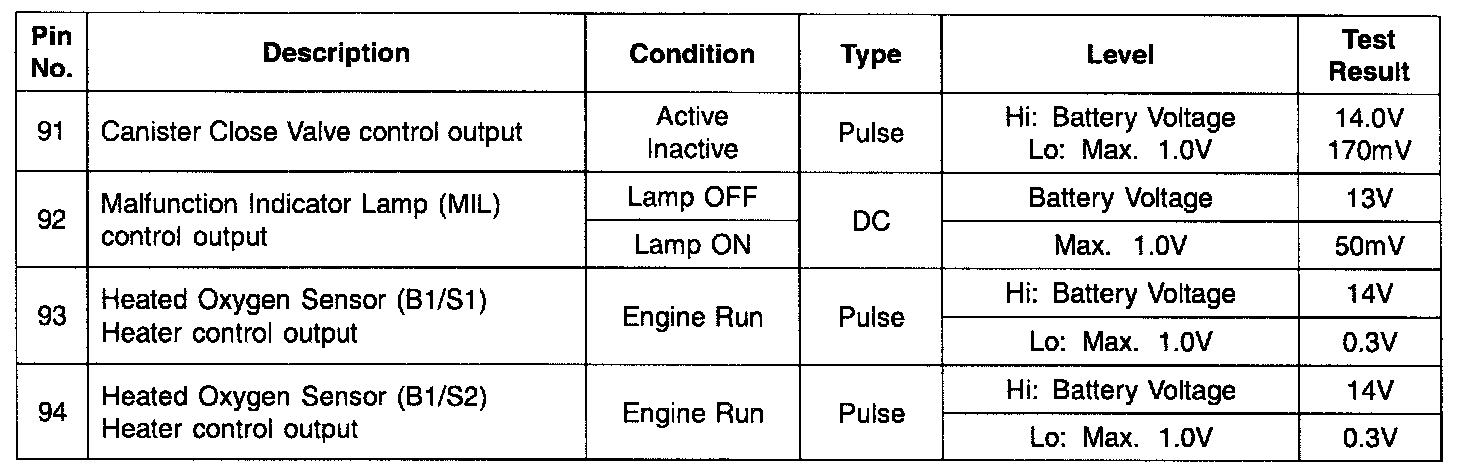

ECM Terminal Input/Output Signal - Connector [CBG-K] (Part 5):

ECM TERMINAL INPUT/OUTPUT SIGNAL - CONNECTOR [CBG-K]
